Curved Rectangle Ceramic Infrared Heater

Curved Rectangle Ceramic Infrared Heater
Price: US $ 2-30/Piece
Min Order: 10/Piece
Pay Type: T/T,Paypal
Prod Model: Curved Rectangle Ceramic Infrared Heater
Color: White, Black and Yellow
Power: 100W-2000W

Product Description

Overview
Quick Details
Type:
Infrared Heater
Power Source:
Other
Place of Origin:
Shenzhen, China (Mainland)
Brand Name:
Superb Heater
Material:
ceramic
Color:
white or black and yellow
Shape:
square/rectangle/flat/arc
Installation:
portable
Function:
adjustable thermostat
Other name:
ceramic heater
Life span:
>3000 hours
Power:
100W-2000W
Origin:
Shenzhen,China
Shipment:
by sea or air
Packaging & Delivery
Packaging Details
plywood case
Delivery Time
7-45 working days after we get the deposite

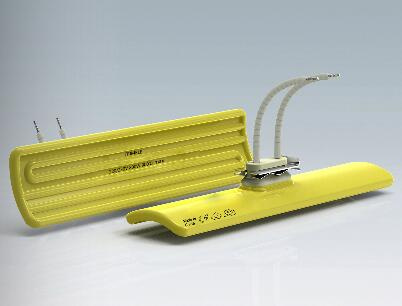

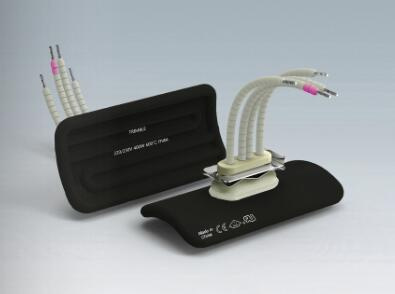

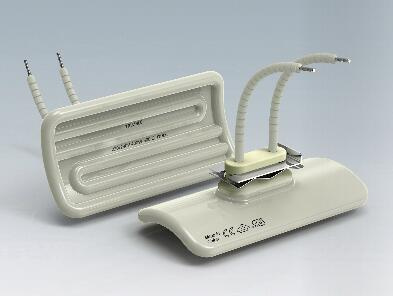

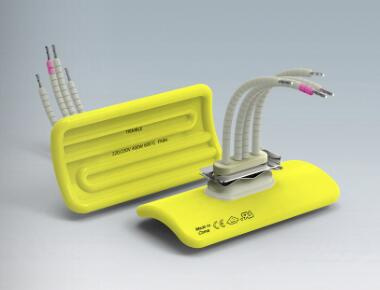

Curved Ceramic IR Heaters


Embedding type ceramic far infrared radiated heating elements

Embedding type ceramic far infrared radiated elements apply glaze with high radiance,ceramic with good heat and shock property as base,and are sintered once by nichrome wire.

Main technical parameter and property:
1. Rupture strength for base body:440Kg/cm2
2.Resistance in common temperature:1012 ohm 0cm
3.Property:good chemical stability;strong causticity-resistance;perfect oxidation-resistance
4.Heat losing in the non-radiation surface is small
5.The base body is heated to 800 C and put in cold water repeatly for ten times and no cracking.
6.The radiated element is heated after electrifying to rating power and immerged into cold water after interruption of power supply for forty times without damage.
7.The max radiance of element>0.9
8.The effect of energy saving is obvious,increasing 10-25% compared with silicon carbide element
9.The life span can prolong more than a few times compared with silicon carbide element.

Specification:
Size(mm)ShapePower(Kw)Size(mm)ShapePower(Kw)
245×65arc0.25-1.0300×300×16flat0.8-1.5
240×60arc0.5-1.0240×160×16flat0.6-1.0
125×65arc0.2-0.5Φ70disk0.1-0.2
120×60flat0.1-0.325Φ100disk0.2-0.3
120×60arc0.1-0.325Φ140disk0.3-0.4
120×120flat0.1-0.8Φ150×Φ100×Φ60haff0.25-0.3
120×120arc0.1-0.8125×125flat0.4-0.8

Applying domain:
Embedding type ceramic far infrared radiated heating elements are produced based on direct of international advanced technique and many years'research,with high conent of technology,good whole property,cleanness & sanitation,convenient assemble,acid-resistance,erodibility-resistance
Safe use,long life span ect.Widely used in vacuum plastic uptake,food roast, medical treatment and sanitation ect various infrared dryness and roast,solidify ect.They have ideal energy saving effect in the industry such as electron spin,light industry, electromechanical chemical industry, medical treatment,food industry ect and have obvious society benefit and economy benefit.

Superb Heater can produce based on specification of customer.
Shape:black hollow core,disk,flat plate,arc
Optional Power: 100W-2000W(based on size)
Other:thermocouple,probe of thermocouple
