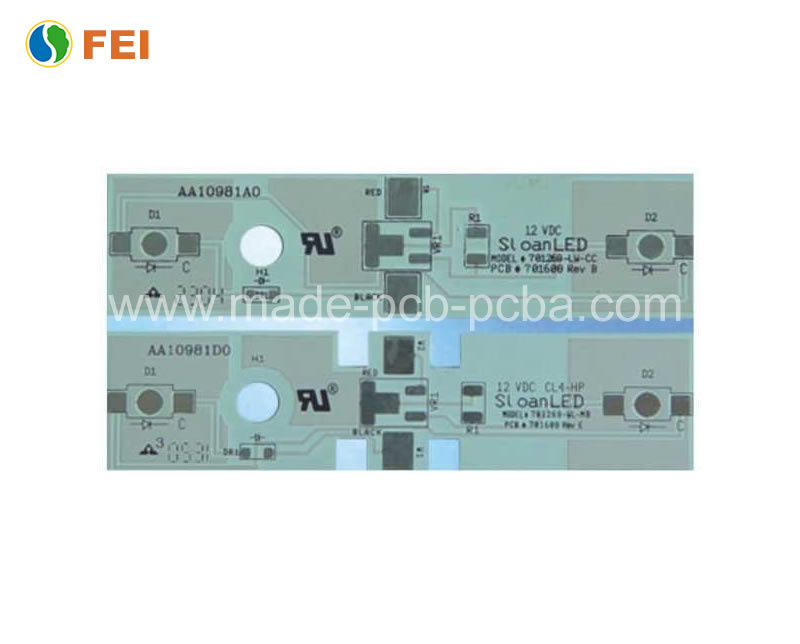

Custom Design High TG FR4 HAL Lead Free Aluminum Base PCB 1 - 24 Layer Rigid PCB

Prod Model:	fei297
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Rigid Circuit Board

Product Description

1. Material
FR-4 (High TG 150° C- 280° C), FR-1, FR-2, CEM-1, CEM-3, Rogers, Halogen Free, Aluminium Base
2. Surface Finish:
1). HAL, HAL Lead Free, OSP ( Entek ), Immersion Gold, Immersion Tin/Silver, Flash Gold
2). Solder Mask: LPI, Green/Red/Blue/Yellow/Black
3). Silkscreen: White, Yellow Carbon lnk: Available Peelable Mask: Available
3. Board Thickness: From Min. 0.2mm to Max. 6.0mm
4. Copper Thickness: 18um ( 0.5 oz )---175um ( 4 oz )
5. Conductor Width and Spacing: Min. 0.08mm
6. Drill hole: Min. 0.2mm (8mil)
7. Tolerance:
1). Hole Diameter: +/-0.05mm for PTH, +/-0.025mm for NPTH
2). Hole Position: +/-0.025mm
3). Outline: +/-0.1mm
8. PTH wall thickness: 0.02mm
9. Min. S/M Bridge: 0.12mil
