Custom Design Ys Geared Motor for Conveyor Belt From Manufacturer
| Price: |
US $ 129/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
KD-050 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Work Duty: |
M4 |
| IP Class: |
IP44 |
| Power: |
0.4kw |
| Voltage: |
200V--600V |
| Weights: |
25kgs |
| Motor Reduction Ratio: |
8.5:1 |
| Number Of Stator: |
Three-Phase |
| Function: |
Driving |
| Speed: |
21m/Min |
| Brand: |
Elk |
Product Description

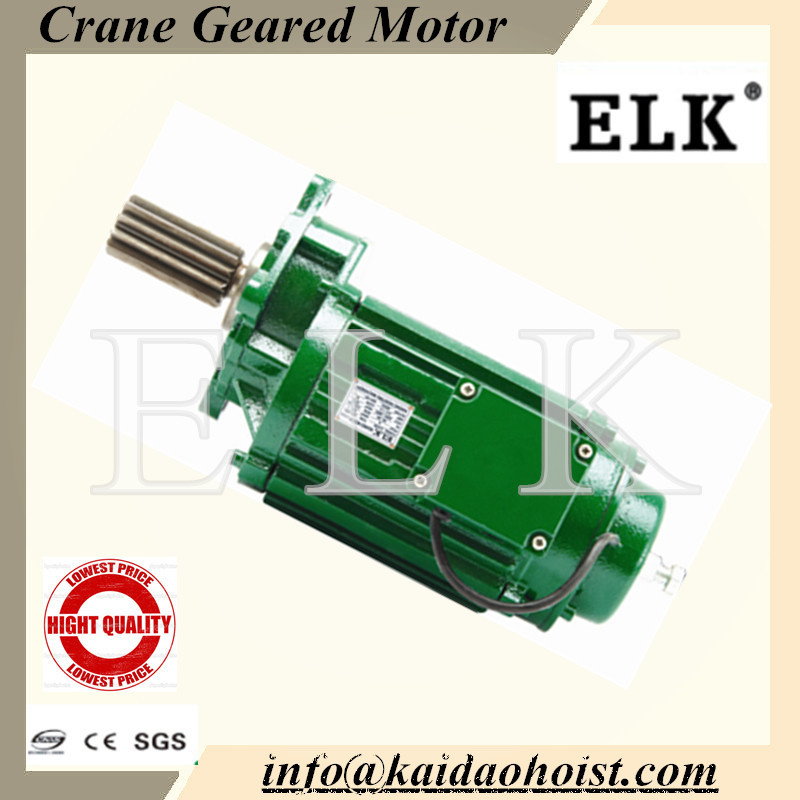

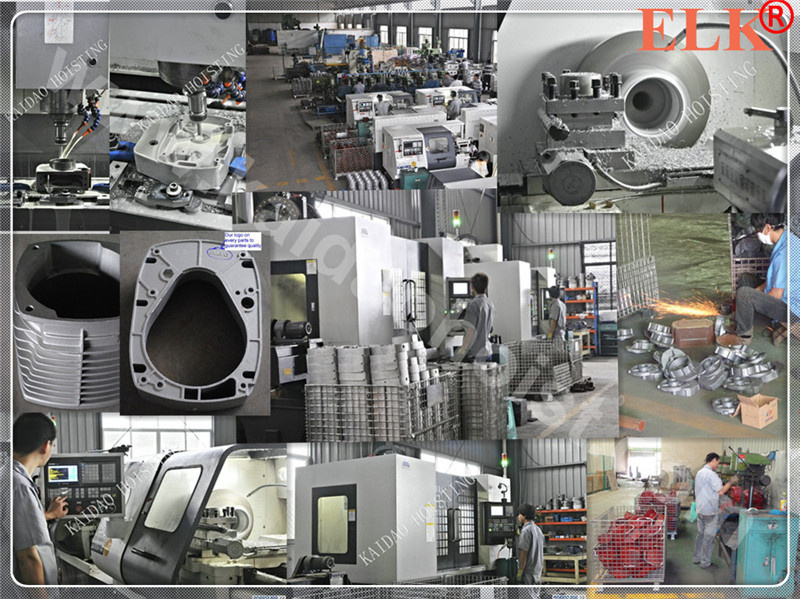

ELK Crane Geared Motor with Buffer ---- 0.25KW---3.75KWSimple Characters :1.High Safety ,Quiet Voice Motor;2.CE-ISO Approval;3.Power 0.25--3.75Kw Crane Motor;4.Easy Heat Dissipation Crane Geared Motor.01. ELK Crane Geared Motor with Buffer Features : Quality Warranty = 2 Years(1). Reduction gearThe gear box is made of hight stress cast iron (FC25), and manufacture by computer numerical control machinery
(CNCLATHE & CNC machine center). The gear is of Ni-Cr-Mo alloy steel(SNCM220 & SCM415) with carburization process.
The shaft is made by alignment and grinding .
High accuracy ,be durable and bumping. More than 5 times safety factor. Long working life (2). BufferWhen soft starting, and after fly wheel acting, the movement of high inertia is Produced.
No impactness this keeps crane stable, smooth and noiseless to stabilize the brake.(3). MotorHigh performance of start torque, motor body heat is easy to dissipation.
High-pressure resisting more than 1500V, light current, compact size, powerful output, available for high frequency working.(4). Electromagnet Brake With direct-type electromagnet brake control can be adjustable with screw high abrasion brake leather,
long service life, safety and never be falling off. 02. This Type Crane Geared Motor with Buffer Advantages Notes :(1).Small Volume with Compact Unitive Whole Part ;(2).Sensitive Steady Electromagnetic Braking System;(3).Super Quiet Voice & Soft Start and Soft Stop ;(4).Lowest Impact ;(5).High Torque/ Output Power Stronger /Easy Heat Dissipation;(6).Highest Cost Performance & Lowest Repair Rate . 03. ELK Crane geared motor with Buffer Characters :Motor, Crane Motor,the motor,motor for crane,crane geared motor,reduction motor, geared reducer,reduction gears,
geared hub motor,geared motor india ,ac geared motor,dc geared motor, electric motor, 3phase induction motor ,
end truck motor, end carriage motor .04.ELK Crane geared motor with Buffer Power :0.25Kw Crane Geared Motor,0.4Kw Crane Geared Motor, 0.75Kw Crane Geared Motor,1.1Kw Crane Geared Motor,1.5Kw Crane Geared Motor,2.2Kw Crane Geared Motor,
3.75Kw Crane Geared Motor, Buffer Motor, Double Speeds Reducer, Dual Speeds Geared Motor . | 1. ELK Crane Geared Motor with Buffer Advantages : |
| ..Small Volume : Reducer and Buffer Block and Motor(3Parts) are combined to be one whole Part. |
| ..Safety and Reliability :Electromagnetic Brake with DC current ; |
| ..Lower Noise :Helical tooth transmission ; |
| ..Lower Impact : With Buffer Block , Soft Start and Soft Stop . |
| ..Long Service Time : With Highly Durable brake block ; |
| ..Quality Warranty: 2 Years-- Lowest Repair-rate ; Easy heat dissipation . |
| 1. ELK Crane Geared Motor with Buffer -- Technical Parameters : | | | |
| Mode | with buffer | Power(Kw) | Poles | Module | Reduction Ratio | Rotation Speed(50Hz) | Voltage | Work Class | Weight (Kgs) | Volume (m3) |
|
| KD-030 | NO | 0.25Kw | 4P | M3/M3.5/M4 | 10:1 | 133 r/min | 200V-600V/
3Phase/ 50Hz | M4 | 14Kg | 0.011 |
| NO | 0.25Kw | 6P | 90 r/min | M4 |
| NO | 0.4Kw | 4P | 133 r/min | M4 | 26Kg | 0.022 |
| KD-050 | Yes | 0.4Kw | 4P | M3/M4/M5 | 8.5:1 | 176 r/min | M4 |
| Yes | 0.37Kw | 6P | 112 r/min | M4 | 31Kg | 0.025 |
| KD-100 | Yes | 0.75Kw | 4P | M3/M3.5/M4/M5 | 7.7:1 | 189 r/min | M4 |
| Yes | 0.6Kw | 6P | 123 r/min | M4 | 33Kg | 0.025 |
| Yes | 0.4/0.13Kw | 4/12P | 189/62 r/min | M4 |
| KD-150 | Yes | 1.1Kw | 4P | M4/M5/M3.5 | 13:1 | 112 r/min | M4 | 47Kg | 0.032 |
| Yes | 0.75Kw | 6P | 67 r/min | M4 |
| Yes | 0.6/0.2Kw | 4/12P | 112/33 r/min | M4 |
| KD-150A | Yes | 1.1Kw | 4P | M3/M3.5/M4/M5 | 7.7:1 | 189 r/min | M4 | 33Kg | 0.025 |
| Yes | 0.75Kw | 6P | 123 r/min | M4 |
| Yes | 0.6/0.2Kw | 4/12P | 189/62 r/min | M4 |
| KD-200 | Yes | 1.5Kw | 4P | M3.5/M4/M5/M6 | 16:1 | 92 r/min | M4 | 71Kg | 0.06 |
| Yes | 1.1Kw | 4P | 92 r/min | M4 |
| Yes | 1.1Kw | 6P | 61 r/min | M4 |
| Yes | 0.75/0.25Kw | 4/12P | 92/30 r/min | M4 |
| KD-300 | Yes | 2.2Kw | 4P | M4/M5/ M6 | 16:1 | 92 r/min | M4 | 91Kg | 0.07 |
| Yes | 1.5Kw | 6P | 61 r/min | M4 |
| Yes | 1.5/0.5Kw | 4/12P | 92/31 r/min | M4 |
| KD-500 | Yes | 3.75Kw | 4P | M5/M6/ M7 | 16:1 | 92 r/min | M4 | 96Kg | 0.07 |
| Yes | 3.75Kw | 6P | 61 r/min | M4 |
| Yes | 2.2Kw | 6P | 61 r/min | M4 |
| Yes | 2.2/0.75Kw | 4/12P | 92/30 r/min | M4 |
After-sale Services-- within 24 Hours: (1)....Before--Sale Service : 01..Quality Control: Strictly Production Request base on signed contract ;02..Delivery Time: Guarantee within contracted delivery time ;03..Photos: Send photos to our customer after finish production and packing ;04..Packing Details:Give complete packing size table to our customer;05..Brand: Respect our customers' advice to use our customers' own brand & logo ;06..Documents:Provide high efficiency service to post you all required customs clearance documents by DHL or TNT . (2)....After--Sale Service : 01..Reply : Fast reply all your questions on line or by email or by telephone ;02..Quality Problems:Our factory is responsible for any problems if it is resulted by our reasons
(Such as give you free new parts to repair it or give enough some compensation cost to you) ;03..Safe Operating: Pls remind your customers to respect our Operating Manual to operate our machine rightly,
to guarantee Safe when operate our machine ;Factory Info & FAQ:01.Are you manufacturer or trade Company?--We are a factory founded in 2010 Year . 02.How about sample & MOQ policy?--Welcome sample order. MOQ can be 1 set. 03.What is your lead time for your goods?--Normally 15 days after confirmed order. 10 days could be available for some items in sufficient stock and standard requirements,
and 30 days during new year and hot season ( Jan to March).
Introduction
Factory Build Time: On March 23rd, 2010 Year;

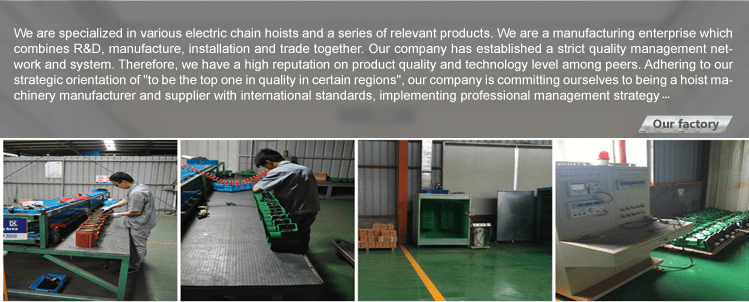

Factory Add.: Zhejiang Kaidao Hoisting Machinery Co., Ltd. is located in Jiaojiang, Taizhou, Zhejiang Province, 3km away from Taizhou Luqiao Airport and near Ningbo and Shanghai Ports.
Products Scope: Kaidao is professional manufacturer which is specialized in various 3Phase--1Phase--Electric Chain Hoist from 0.5Ton to 60Ton, Electric Wire Rope Hoist (HKDS&HKDD)(CD1&MD1), Crane Geared Motor with Buffer from 0.25Kw to 3.75Kw, Bridge Overhead Crane and a series of relevant hoisting products, by adopting most advanced design, research and development technology of world hoisting industry.
Products Advantages: Lower Noise, Light Weights, Compact Structure, High Intelligentized Production Technology, High Safety, Lowest Repair Rate, Low Cost & Best Quality, Excellent Effective Service.
Application Field: Material handling, machinery processing, mould research, industry automatic Lines, assembly lines, wind power generation, metallurgy&casting workshop for all lifting operations.
Export License: Kaidao has own independent export license, all our products are with CE, ISO9001-2008, SGS international certificates approval. At present, we have already exported our hoists, motors, crane all over the world more than 84 countries, such as South Europe, North & South America, Middle East, Africa, Asia and Oceania.
High Quality Control System: Excellent Quality is a persistent and important objective for Our company; Every product is tested auto-testing-center and also carefully inspected before packing and shipping.
Business Philosophy: Kaidao adheres to principle of honesty and mutual benefit, insists in innovation and profession, aiming at quality first, service best to meet a win-win situation.
Social Mission: Care for clients, Care for workers; Care for environment, Repay society.
Prospect: Kaidao has stepped into modernized hoisting production industry, ranks a star enterprise with powerful competitive strength in hoisting business, hoping to create a glorious future together with friends at home and abroad.
Kaidao Company is aiming to be Biggest & Most Excellent Manufacturer of Hoists--Cranes--Motors in China.
