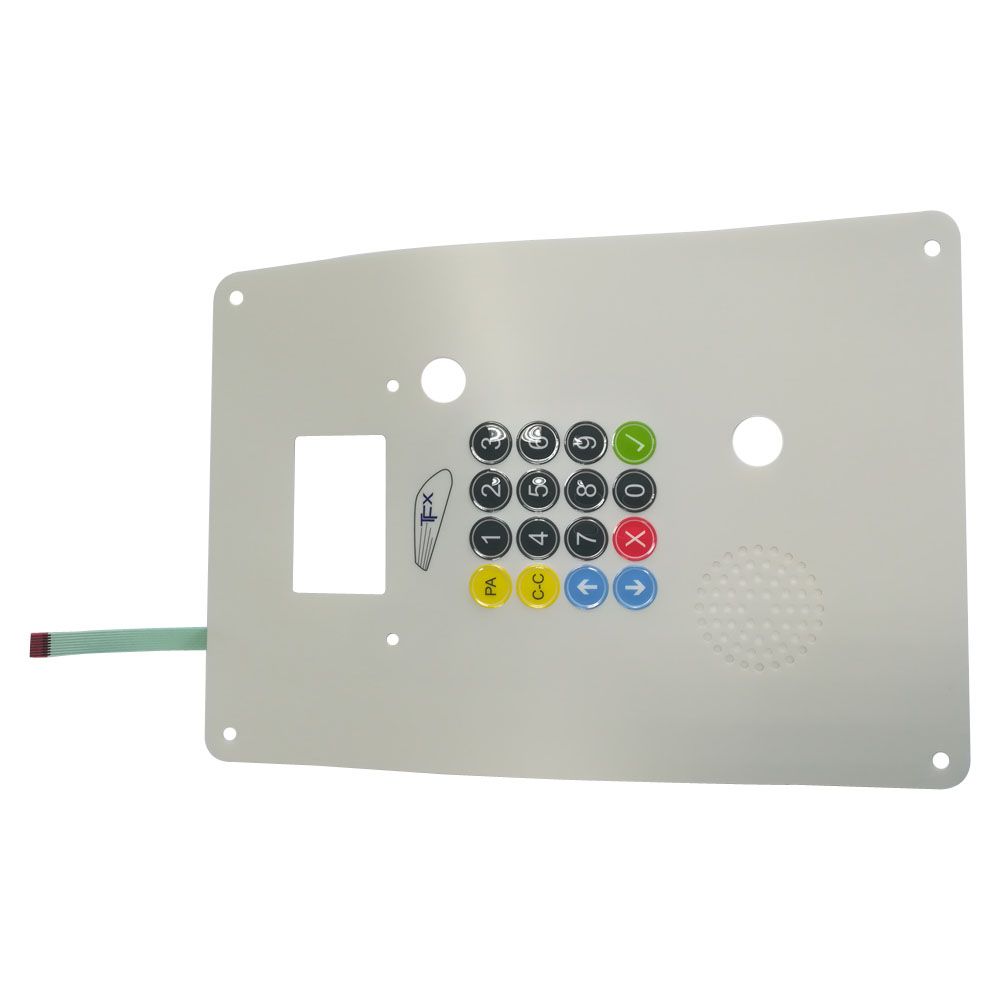

Custom Flexible Printed Conductive Silver Ink Circuit Membrane Switch

Name: Custom Flexible Printed Conductive Silver Ink Circuit Membrane Switch
Brand: all-electronics-online.com
SKU: 837374645
Availability: InStock
Rating: 4.6 (96 reviews)

Price:	US $ 1.3-1.5/Piece
Min Order:	200/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	XWM
Overlay:	F150
Circuit:	Flat Flexible Circuit and Cable
Adhesive:	3m
Matching Color:	Pantone No.
Key Option:	Flate or Tactile Key
Type:	Convex
Material:	Metal
Application:	With Remote Control
Detection Method:	Electrometry
Brand:	Singway

Product Description

We are the professional of manufactory and export Touch Screen,Touch Panel,Membrane Switch,Rubber Matte and Flexible Printed Board and some relative electronic products,we have profuse design with your drawings or requirements,if you are interested in any products of our catalogues please do not hesitate to email us.We are promise that the quality is good and the price is favourable.

Item Details:
1,All manufacturing processes confirm to the ISO-9001/TS16949/ISO13485 standards
2, RoHS directive compliant green products "lead free initiative"
3, Smooth and good touch feeling

LAYER CONSTRUCTION and Performance
CONSTRUCTION	Material	THK(mm)
Graphic Overlay	F150	0.15mm
Spacer tape	3M	0.13mm
Upper circuit	PET	0.075mm
Spacer tape	3M467	0.05mm
Lower circuit	PET	0.125mm
Rear Adhesive	/	/
Resistance	<150OHMS
Pitch	2.54mm
Silver Paste	NJ-SP-P1501	Transparent Silver
Carbon Paste	ED423SS/CI2001
Insulating Ink	ED452SS/DI7502
LED	/

Lead time:
★To create and submit counter-drawings + artwork for your approval:2-3 work days
★To build tooling and Sample Shipping:8-10 days
★Mass Production Delivery:15-30 days after the sample confirmation

Packaging Details:
1) Wrap in air bubble film
2) Put into foam box and each unit with label marked
3) Packed with extra carton box, which make sure the goods safety in transportation.
4) We accepted Customized package.

Dongguan Singway Electronic Technology Co., Ltd. Was established in September 2011, a set of research and development, manufacturing, sales and service as one of the high-tech enterprises, adjacent to the beautiful scenery of the Dongguan Songshan Lake Science and Technology Industrial Park, plant construction area of about 7000 square meters, the company has a high-quality professional management and R & D team, management and engineering and technical personnel account for 40%, with advanced and system, the value of the touch screen technology and solutions provider.

Dongguan Singway Electronic Technology Co., Ltd. is a professional R & D, manufacturing Touch Panel ITO (touch screen) manufacturers. Has the introduction of the United States, Japan, Taiwan and the domestic production, testing, laboratory equipment. Mainly to provide pre installed and post navigation, security, industrial control, smart home, medical equipment and other special touch screen. The monthly output is 400K/PCS, and has gradually become the outstanding supplier of many large enterprises. Dongguan Xing Electronic Technology Co., Ltd. Adhering to the "product quality first, market-oriented, customer value maximization" for the business philosophy; "thinking, conservation, implementation of the" management philosophy; "quality of service first, to maximize meet customers all reasonable demand" for the service concept. Relying on excellent technology and sophisticated equipment, and continued to establish a perfect quality, environment, safety and health management system, to promote the company's overall management of continuous improvement and continuous improvement. Has passed ISO9001/TS16949 quality management system, ISO14001 environmental management system, OHSAS18001 occupational health and safety management system, QC080000 hazardous substance process management system certification.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
