Custom Made Flexible Soft Surface Insulation Silicone Pad/Sheet

Name: Custom Made Flexible Soft Surface Insulation Silicone Pad/Sheet
Brand: all-electronics-online.com
SKU: 828759665
Availability: InStock
Rating: 4.9 (131 reviews)

Price:	US $ 75/Piece
Min Order:	5/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BM150
Thickness:	0.2mm-0.3mm
Thermal Conductivity:	1.0~1.6W/M-K
Breakdown Voltage Strength:	34.5kv
Hardness:	85 Shore a
Flame Rating:	94V-0-1
Name:	Insulator Silicone Sheet
Application:	Motor Control
Type:	Insulation Sheet
Chemistry:	Organic Insulation
Material:	Fiberglass
Maximum Voltage:	<10KV
Thermal Rating:	Hb
Color:	Pink/Grey
Brand:	Jrft

Product Description

Insulator Silicone Sheet
Insulator Silicone Sheet is base on fiberglass and polyimide as raw materials, also known as thermal conductive silicone cloth, tearing resistant silicone sheet. This material can effectively reduce thermal resistance between the electronic component and the heat sink, and with good electrical insulation, high dielectric strength, good thermal conductivity performance. It can resist high voltage and metal parts pierced problem lead to a short circuit, it's a good thermal insulation material to instead of the traditional mica and silicone grease.

Advantage & Feature:
Soft surface, good thermal conductivity and toughness tear resistance, high dielectric strength, strong wear resistance, high breakdown voltage, no viscosity on the surface, suitable use for power device of insulation and thermal conductive.

Application:
Large power supply and automobile electronic heating module, motor control, communication equipment,
Semiconductor, IS MOS, IGBT, strong voltage and large power welding machine etc.

Specifications:
Sheet, die-cutting, roll, adhesive and without adhesive are available.

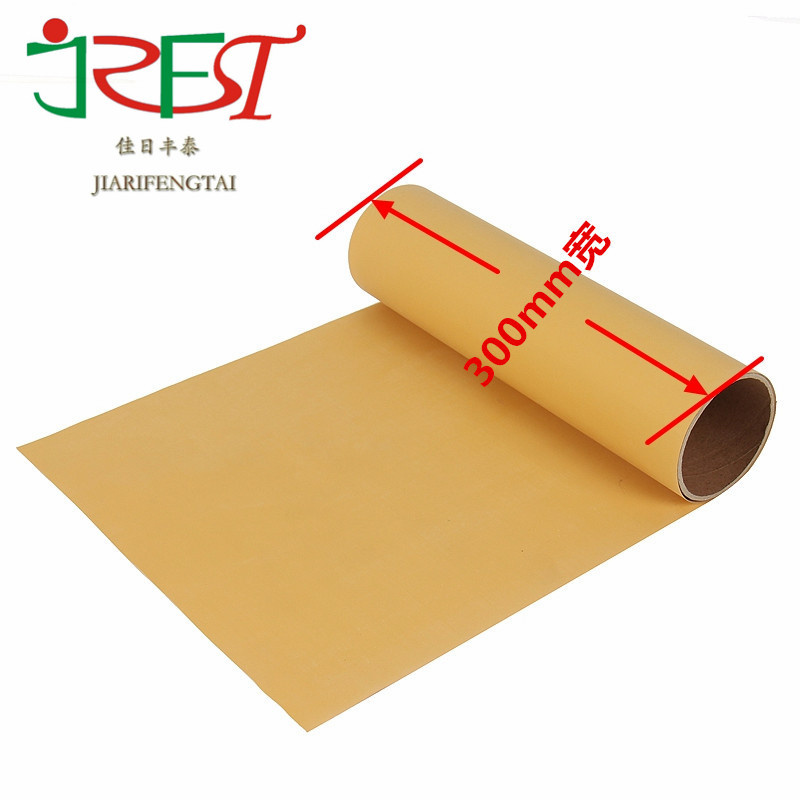

Regular size: 300mm*50m (roll), 300mm*76m(roll)
We can offer die cutting service.

PROPERTIES PARAMETERS
Test Item (Unit)	Numerical Value							Test Standard
Model No.	BM120	BM150	BM180	BM900S	BM-K4	BM-K6	BM-K10	--
Thickness(mm)	0.23~0.45	0.2~3.0	0.18	0.23	0.16			ASTM D347
Color	Pink/Blue/Grey	Pink/Grey	Grey	Pink	Grey	Green	Yellow	Visual
Thickness Tolerance (mm)	0.02±0.01				0.006±0.01			ASTM D347
Continuous Use Temp(ºC)	-60~200							TGA+DMA
Thermal Conductivity(W/m-K)	1.0	1.3	2.0	1.6				ASTM D5470
Volume Resistivity(Ω-cm)	1010↑	1010↑	1010↑	1010↑	1012↑	1012↑	1012↑	ASTM D257
Breakdown Voltage(KV)	3.5-4.5	4.5	4	5.5	6.0	6.0	6.0	ASTM D149
Hardness (shore A)	70±5	85±5	85±5	92±5	90±5	90±5	90±5	ASTM D2240
Specific Gravity	2.3	2.5	2.6	2.8	3.0	3.0	3.0	ASTM D792
Tensile Strength (kg/cm2)	15	18	18	9	34	34	34	ASTM D412
Elongation (%)	3	3	2	20	40	40	40	ASTM D412
PRO-Environment (12)	Check out							IEC62321
Halogen(4)	Check out							EN14582
Flame Rating	94V-0-1							ULNO: E341634

Shenzhen City Jia Rifeng Tai Electronic Technology Co., Ltd. Was founded in 2010, a total investment of more than 1000000 RMB. Jia RiFeng Tai is a professional committed to the domestic and foreign electronic thermal insulation materials of high-tech enterprises.

Our Main Products: Thermal conductive filler material, like thermal gap pad, insulator silicone sheet, insulator silicone sleeve, ACF conductive film, thermal silicone heating, thermal double-sided tape, thermal graphite, thermal silicone encapsulants, thermal grease / paste, alumina ceramic, Aln ceramic, zirconia ceramic, Sic ceramic, NFC Ferrite sheet, EMI absorber sheet, thermal phase change material, silicone rubber (Fujipoly), Bergquist thermal conductive material K4, K6, K10 insulation gap pad.

Products are widely used in power supply, LED lighting, electric welding machine, notebook computer, LED decorative lighting, set-top box, high power supply and other industries. At present, the company has passed ISO 9001, RoHS and UL certifications.

High quality, good price, delivery on time and sincere service are our value and promises to our customer. As an enterprise, we are confident enough to present competitive products to severe competition. If you are interested in our products, please do not hesitate to contact us.
