| Prod Model: |
XWM16 |
| Custom Service: |
Available |
| Overlay Material: |
F200 |
| IP Grade: |
IP67 |
| Housing: |
5pin,2.54mm Ptich |
| Tail Length: |
73.66mm |
| Type: |
Flexible |
| Material: |
PET |
| Application: |
Home Appliance |
| Structure: |
Pet+Metal Dome+Lowe |
| Detection Method: |
Electrical Test |
| Brand: |
Singway |

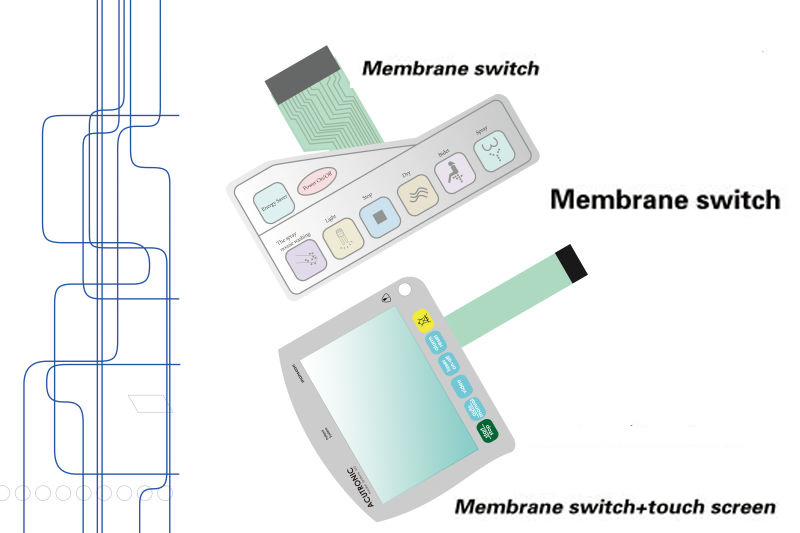

Product Description
Product Description 1.Electrical
| Maximun Circuit Rating: | 35V(DC),100mA,1W |
| Contavt Resistance: | 10Ω~ 500Ω |
| Insulation Resistance: | 100MΩ 100V |
| Dielectric: | 250VRms(50~60Hz 1min) |
| Contact Bounce: | < 5ms |
Life Expectancy: | Flat: ≥ 5million times |
| Tactile: ≥ 1 million times |
| Dura switch: ≥ 10million times |
2.Mechanical
| Actuation Force: | Flat:57~284g(2~10oz)
Tactile: 170~397g(6~14oz) |
Switch Strok:
| Flat: 0.1~0.5mm
Tactile: 0.6~1.5mm |
3.Environment
| Operation Temperature: | -40~+80 |
| Storage Temperature: | -40~+80 |
| Humidity: | 40,90%~95%,240hours |
| Vibration: | 20G,max.(10~200Hz,Mil-SLD-202,M204.Condition B) |
Our CompanyDongguan Singway Electronic Technology Co., Ltd. is a professional R & D, manufacturing Touch Panel ITO (touch screen) manufacturers. Has the introduction of the United States, Japan, Taiwan and the domestic production, testing, laboratory equipment. Mainly to provide pre installed and post navigation, security, industrial control, smart home, medical equipment and other special touch screen. The monthly output is 400K/PCS, and has gradually become the outstanding supplier of many large enterprises. Dongguan Singway Electronic Technology Co., Ltd. adhering to the "product quality first, market-oriented, customer value maximization" for the business philosophy; "thinking, conservation, implementation of the" management philosophy; "quality of service first, to maximize meet customers all reasonable demand" for the service concept. Relying on excellent technology and sophisticated equipment, and continued to establish a perfect quality, environment, safety and health management system, to promote the company's overall management of continuous improvement and continuous improvement. Has passed ISO9001/TS16949 quality management system, ISO14001 environmental management system, OHSAS18001 occupational health and safety management system, QC080000 hazardous substance process management system certification.Advantage:
1.Accurate and strick color matching according to customer's requirement,both Panton and Ral color matching system ,using advanced light box and computer color mataching,we can also do half-tone printing
2. Good material control to make sure all the material are high quality ,all the material we used are Rohns compliant
3.Our engineer will work with customers and reommend specail constrution design to meet customer's desires ,such water proof ,dust proof and anti corrasion and so on
4. Strick quality inspection ,100 % funtional tesiting ,and we can also do specified testing ,such as humility testing ,life expectancy testing ,actuation force testing.
5. We are qualified Dara switch .5. Except membrane switch and touch screen, we can also do different types of assembly,such as membrane switch and touch screen with FPC, PCB ,silicone rubber ,metal backer ,plastic bezel and so on.
6. We can accept small quantity order and offer competitve price.
