Custom Small Brushed Direct Current Motor for Hydraulic Pump

Name: Custom Small Brushed Direct Current Motor for Hydraulic Pump
Brand: all-electronics-online.com
SKU: 831154495
Availability: InStock
Rating: 4.8 (42 reviews)

Price:	US $ 40-50/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	zd2401
Duty:	2min-7.5%ED
Protect Feature:	IP44
Power:	2.2kw
Volt:	24V
Current:	155A
Application:	Power Tools
Excitation Mode:	Compound
Structure And Working Principle:	Brush
Operating Speed:	Constant Speed/Low Speed
Casing Protection:	Closed Type/Protection Type
Brand:	Sanghao

Product Description

Custom Small Brushed Direct Current Motor for Hydraulic Pump

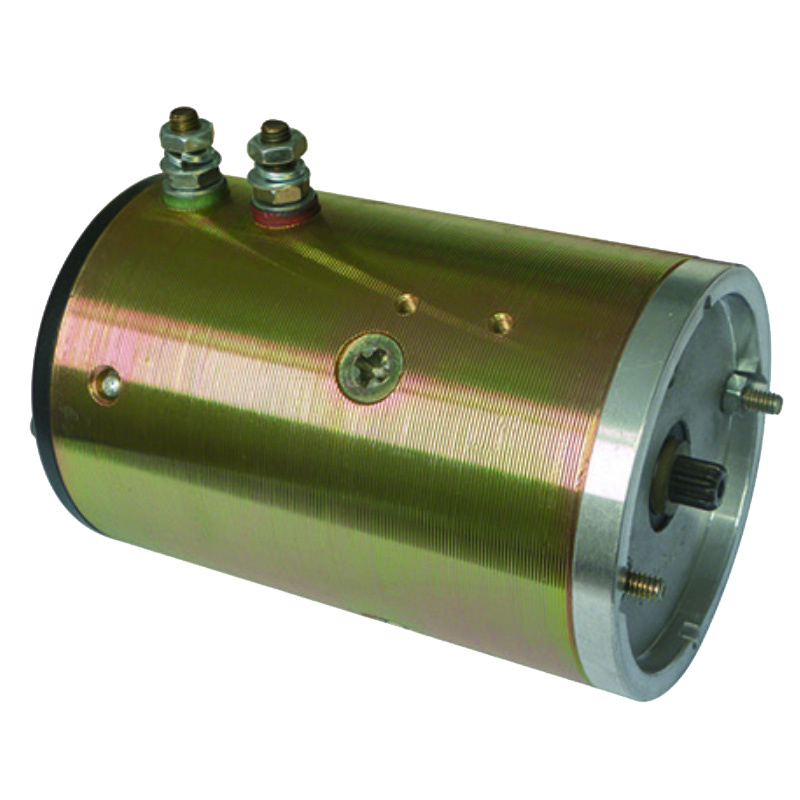

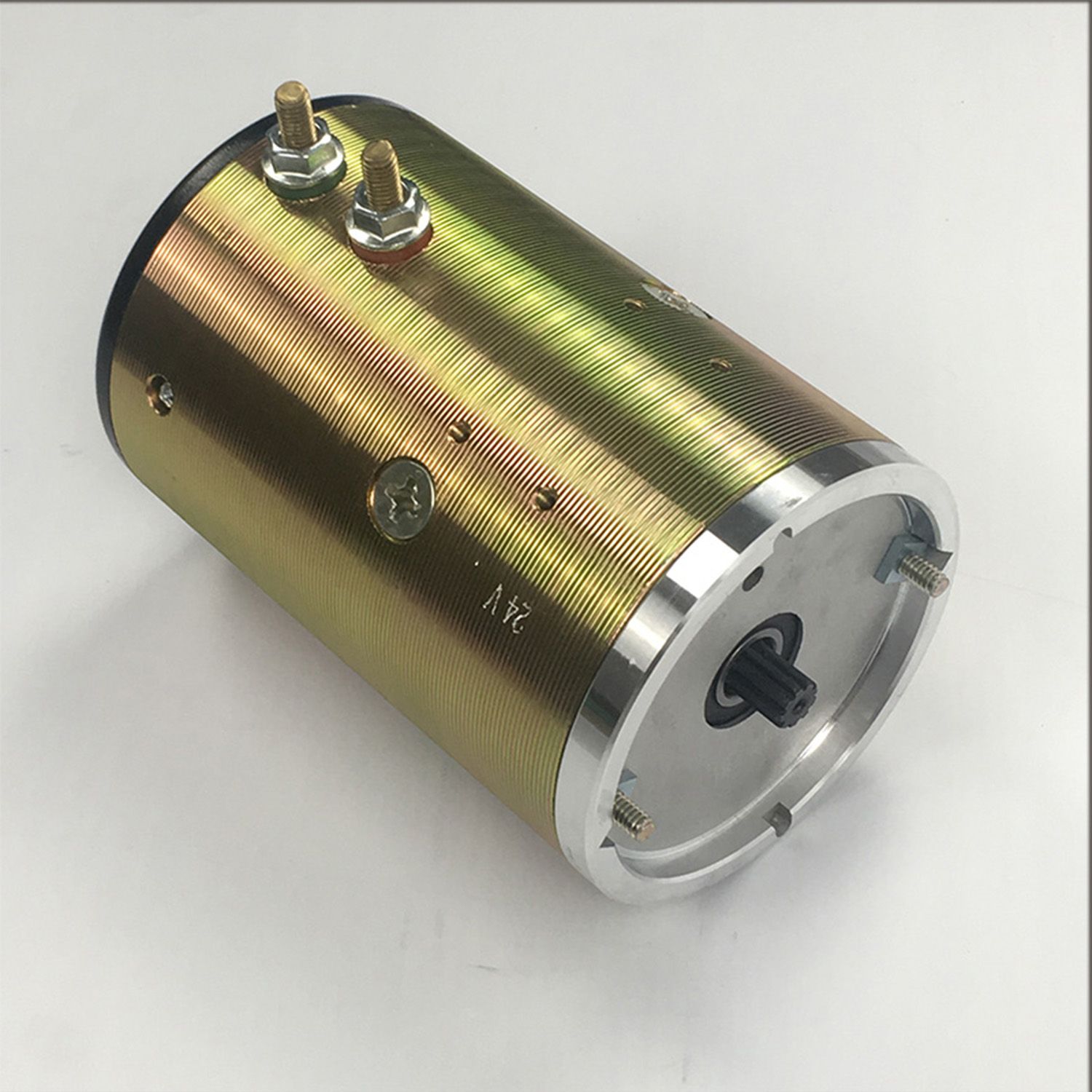

1. Product Picture

Motor' type can be divided into 12V,24V,48V,60V,72V voltage system. Output power ranges from 0.8 KW-3KW. Outside diameter covers 3 inch, 4.5 inch ,5 inch. Motors' surface treatment can be chosen by customer, and we have the technique method such as zinc plated, chromium plated, powder coated with different color (e.g. black, red, grey) on heavy duty motors.

2. Outline Dimension and Technical Parameter

Type	ZD2401
Volt	24V
Current	155A
Power	2.2KW
Speed	2600RMP
Protect Feature	IP44
Rotation	CW

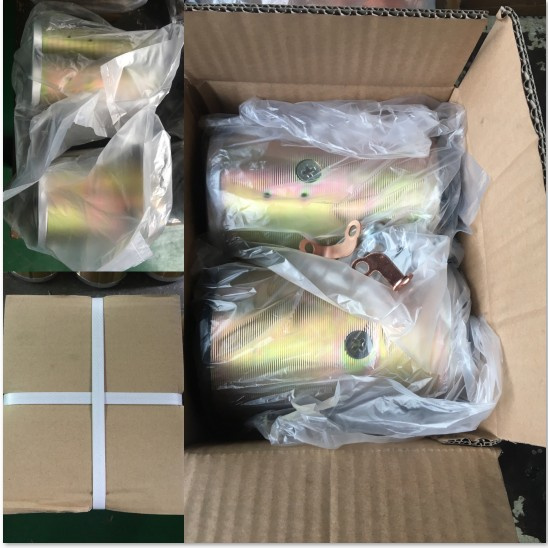

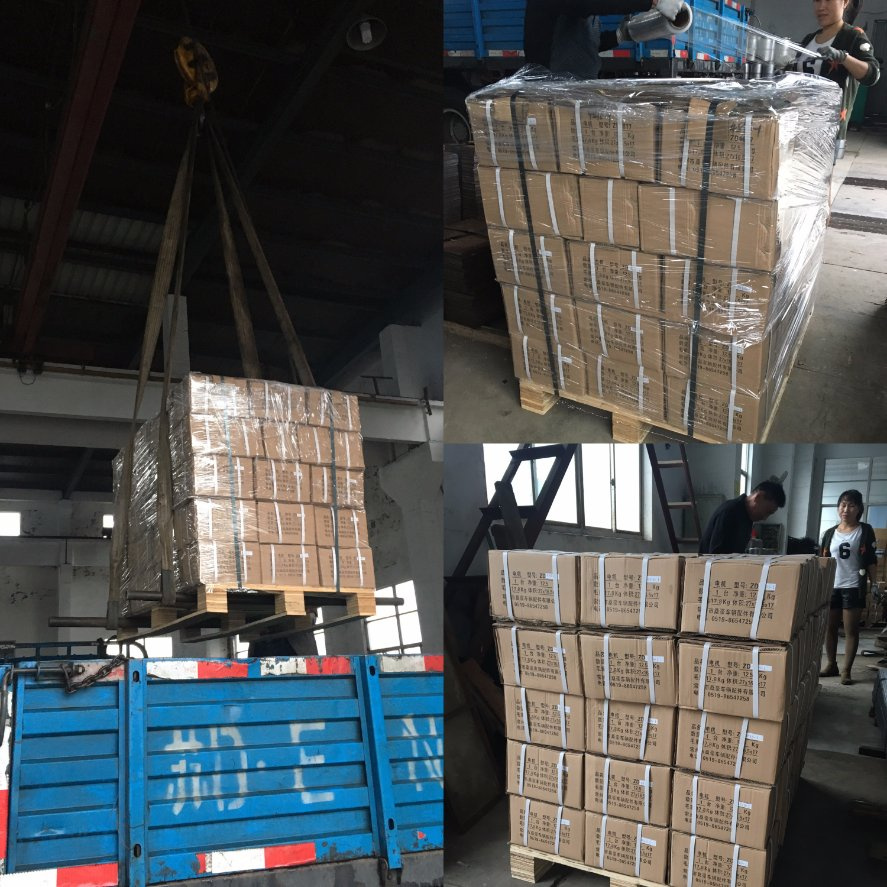

3. Package
plastic bag+carton box(inner+outer)+wooden pallet

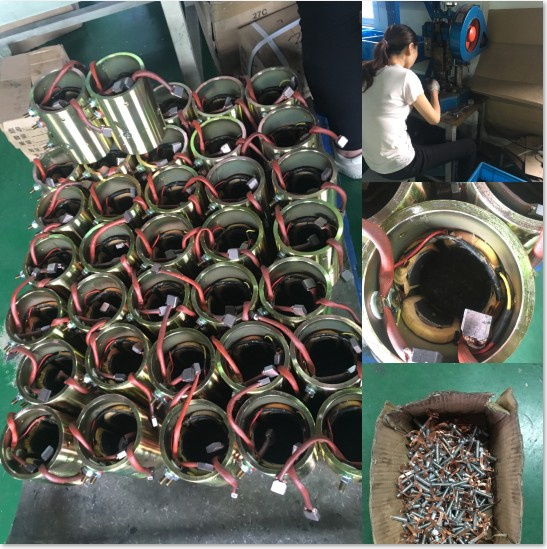

4. Motor Factory Shop
The main two factory shops are assembly shop and coiling shop. Mostly our inside equipments of the motors are made by our work through hand so we can control the quality and we know how it is best for the motor. Our engineer will do the whole test of the motor to see if the parameters are ok.

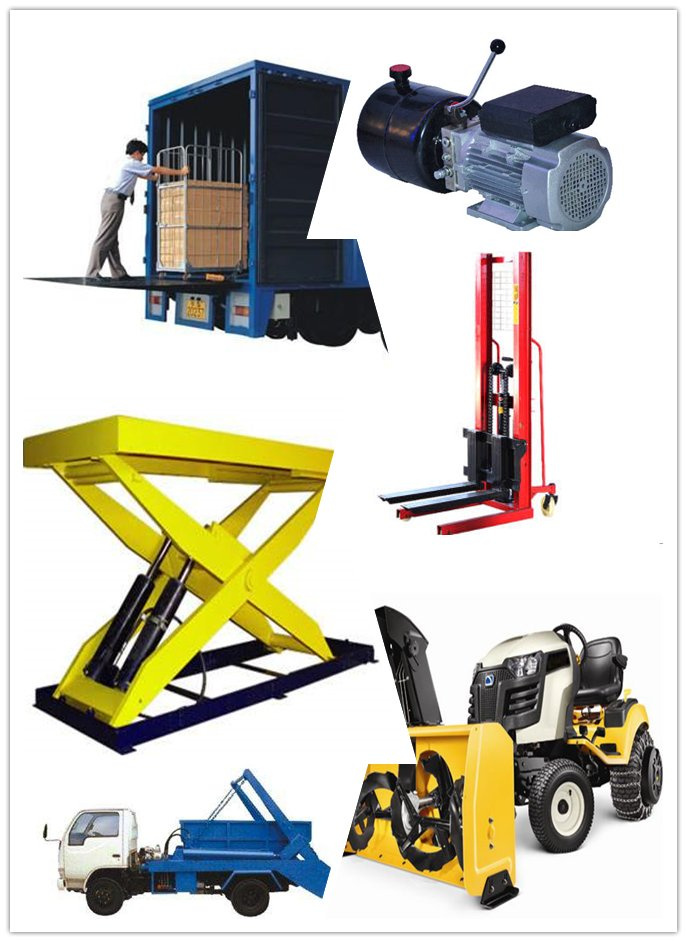

5.Application
High efficiency DC motors type serve to drive hydraulic pumps, automotive power winch and different other drives. According to the different requirements of customers, our DC motors have been broadly used in the fork-lift, container van tail-board, van door system, jumping car, snow-sweeper, etc.

More questions, pls contact us!

Changzhou Sanghao Vehicle Fitting Co., Ltd is established in 1992 and located in beautiful coast of Taihu Lake, which is a professional factory who mainly produce steel wheel hub and DC motor. The size of wheel hubs ranges from 4 inches to 12 inches, totally around 60 varieties. Different surface treatment of them can also be provided such as electrostatic spraying, hot galvanizing and etc. We have over 40 different kinds of DC motor whose power ranges from 0.3kw-4kw and all of them are used for hydraulic power unit for auto such as car tail plate, electric forklift, the lift platform of sanitation truck and etc. Our company makes 'doing every product perfectly and nicely and serving every client briskly and thoughtfully' as our purpose. Nowadays, we are constantly developing new products and absorbing new brains in order to make and improve first-class team and quality. At the same time, we have passed ISO9001-2000 to supervise our quality. We sincerely welcome customers at home and abroad to cooperate with us.
