Custom Small Electric Motor for Hydraulic Pump

Name: Custom Small Electric Motor for Hydraulic Pump
Brand: all-electronics-online.com
SKU: 831208085
Availability: InStock
Rating: 4.4 (61 reviews)

Price:	US $ 55-62/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	4807-1
Volt:	48V
Power:	2.2kw
Speed:	2500rmp
Protect Feature:	IP44
Rotation:	Cw
Application:	Power Tools
Excitation Mode:	Compound
Structure And Working Principle:	Brush
Operating Speed:	Constant Speed/Low Speed
Casing Protection:	Closed Type/Protection Type
Type:	Zd4807-1
Brand:	Sanghao

Product Description

Custom Small Electric Motor for Hydraulic Pump

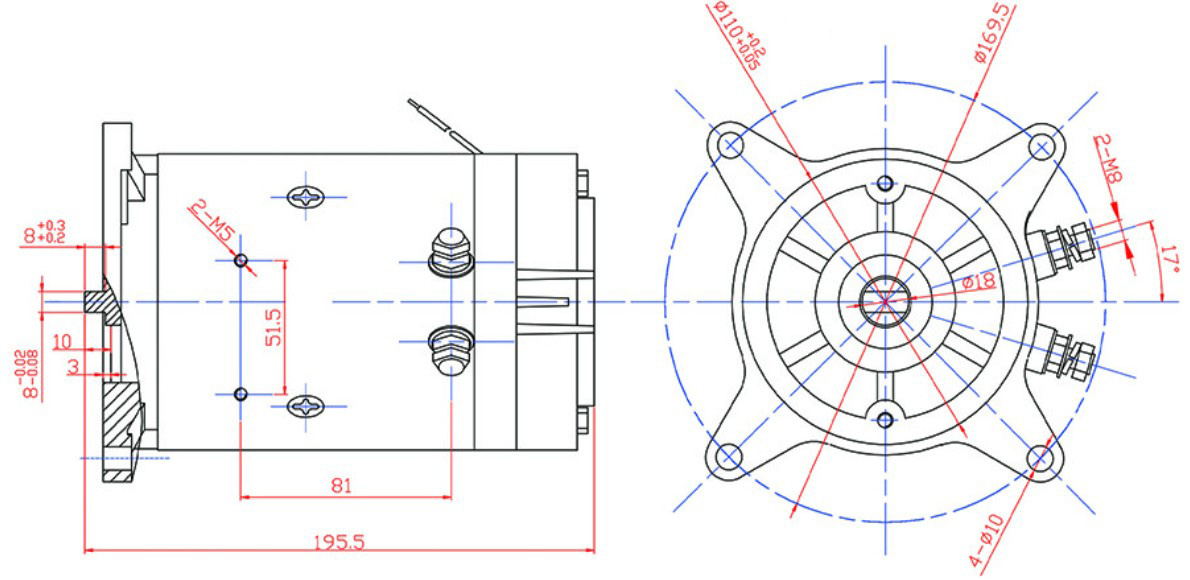

1. Technical Parameter and Outline Drawing

Type	zd4807-1	zd6007-1	zd7207-1
Volt	48V	60V	72V
Power	2.2KW	2.2KW	2.2KW
Current	72A	66A	54A
Speed	2500r/min	2500r/min	2500r/min
Rotation	CW	CW	CW
Protect Feature	IP44	IP44	IP44
Weight	7.2KG	7.2KG	7.2KG

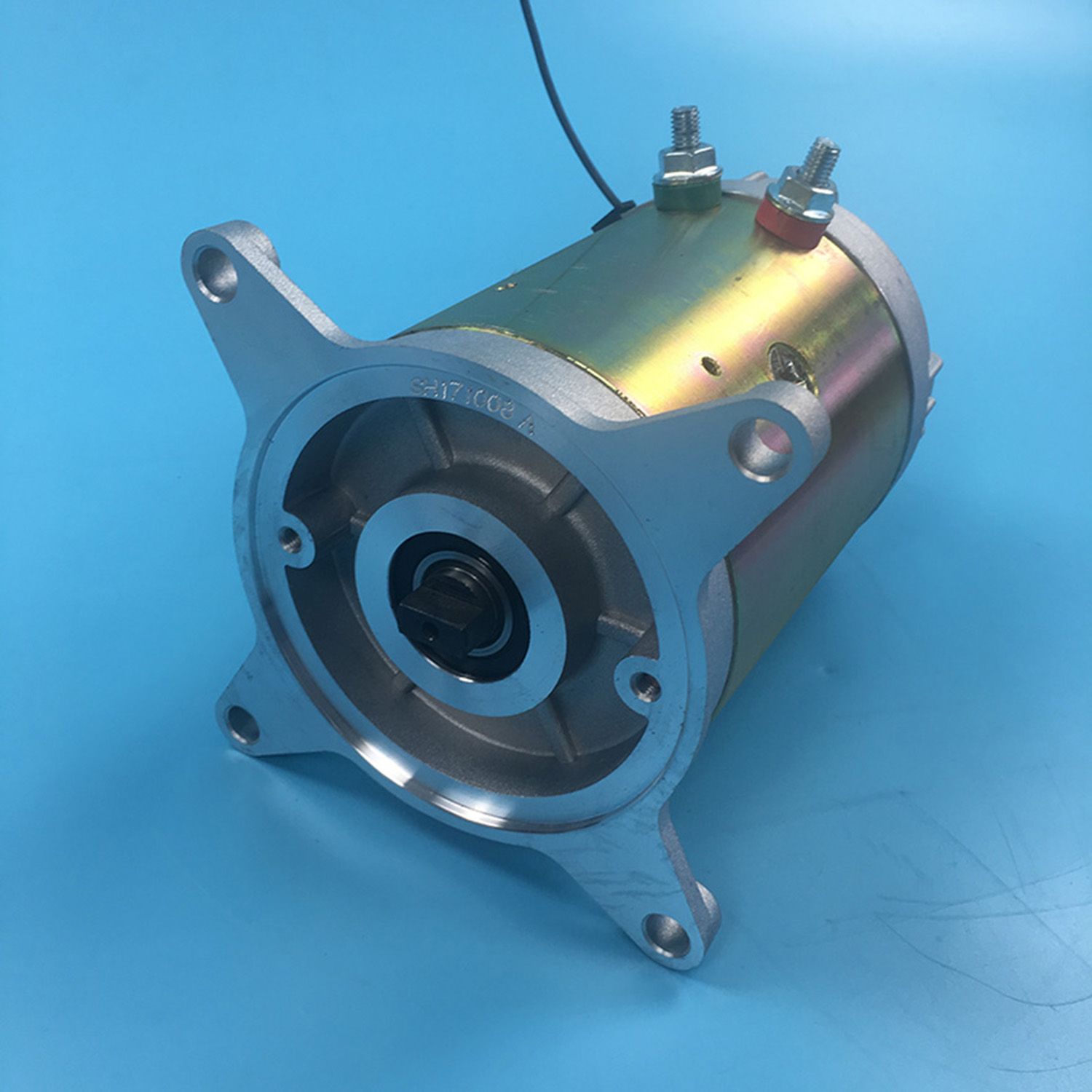

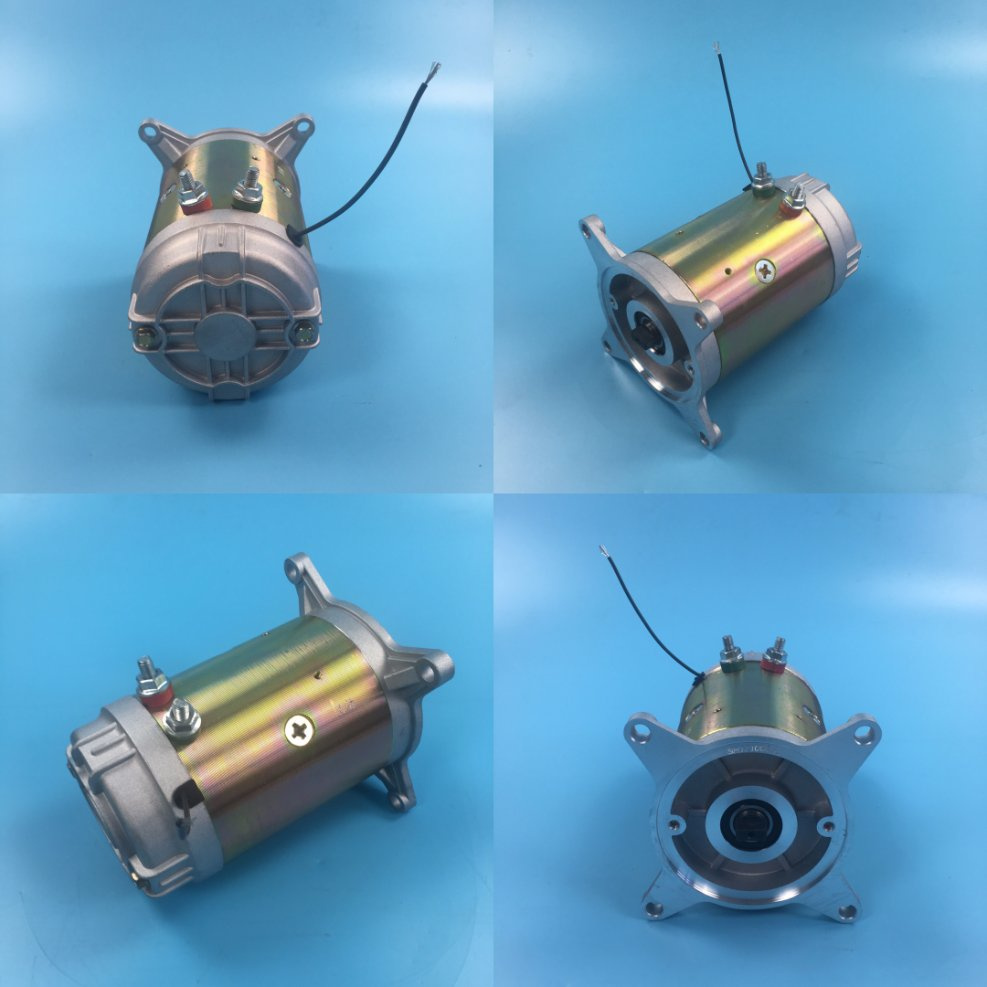

2. Detail Motor Picture

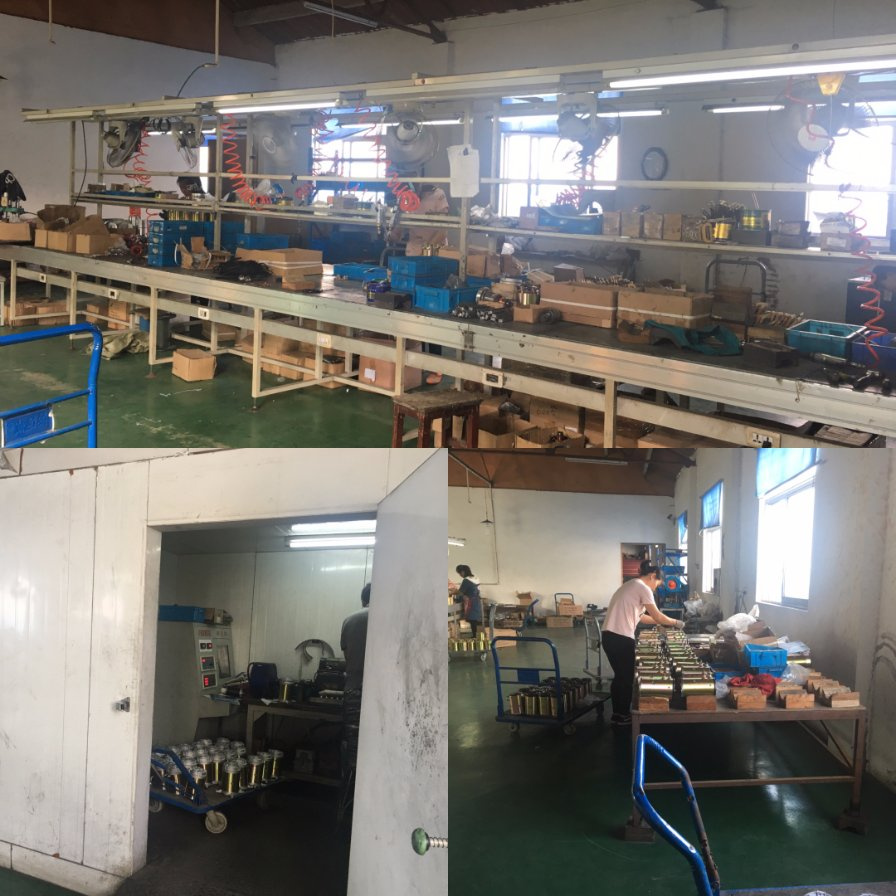

3. Motor Factory Shop
A test room is equipped with the assembly department. When all the motors are finished, they would go into test room. Our worker will test the motor one by one. If the sound of the motor has any problem or the parameter of the motor has the problem, the motor will fixed and will not go to be packaged. Therefore we control the quality very strictly and will not give any problem motor to our client.

4. Package

5. Our Advantages
a. strict quality control before the package
b. OEM and ODM services are provided
c. patient salesmen to help you solve the problem
d, good after-sales services

6. Application
Our motors are commonly used in hydraulic power packs to provide the driving for the car, industrial or power tools. Van wing door, forklifter, dump truck, lifting platfrom and etc all widely use our motors.

7. Payment Term and Shipping Way

Payment Terms: TT/Paypal/WU

Shipping Way: by sea/express/air

We are honored to provide the service to you so if you have any question, pls contact us freely!

Changzhou Sanghao Vehicle Fitting Co., Ltd is established in 1992 and located in beautiful coast of Taihu Lake, which is a professional factory who mainly produce steel wheel hub and DC motor. The size of wheel hubs ranges from 4 inches to 12 inches, totally around 60 varieties. Different surface treatment of them can also be provided such as electrostatic spraying, hot galvanizing and etc. We have over 40 different kinds of DC motor whose power ranges from 0.3kw-4kw and all of them are used for hydraulic power unit for auto such as car tail plate, electric forklift, the lift platform of sanitation truck and etc. Our company makes 'doing every product perfectly and nicely and serving every client briskly and thoughtfully' as our purpose. Nowadays, we are constantly developing new products and absorbing new brains in order to make and improve first-class team and quality. At the same time, we have passed ISO9001-2000 to supervise our quality. We sincerely welcome customers at home and abroad to cooperate with us.
