Customerized Membrane Switch with FPC Circuit

Prod Model:	170213002
Quality:	Top Quality
Environmental Friendly:	Raw Material Pass RoHS, SGS Test
Size:	as Per Request
Type:	Flexible
Application:	With Remote Control
Material:	EL Panel
Brand:	Tkm

Product Description

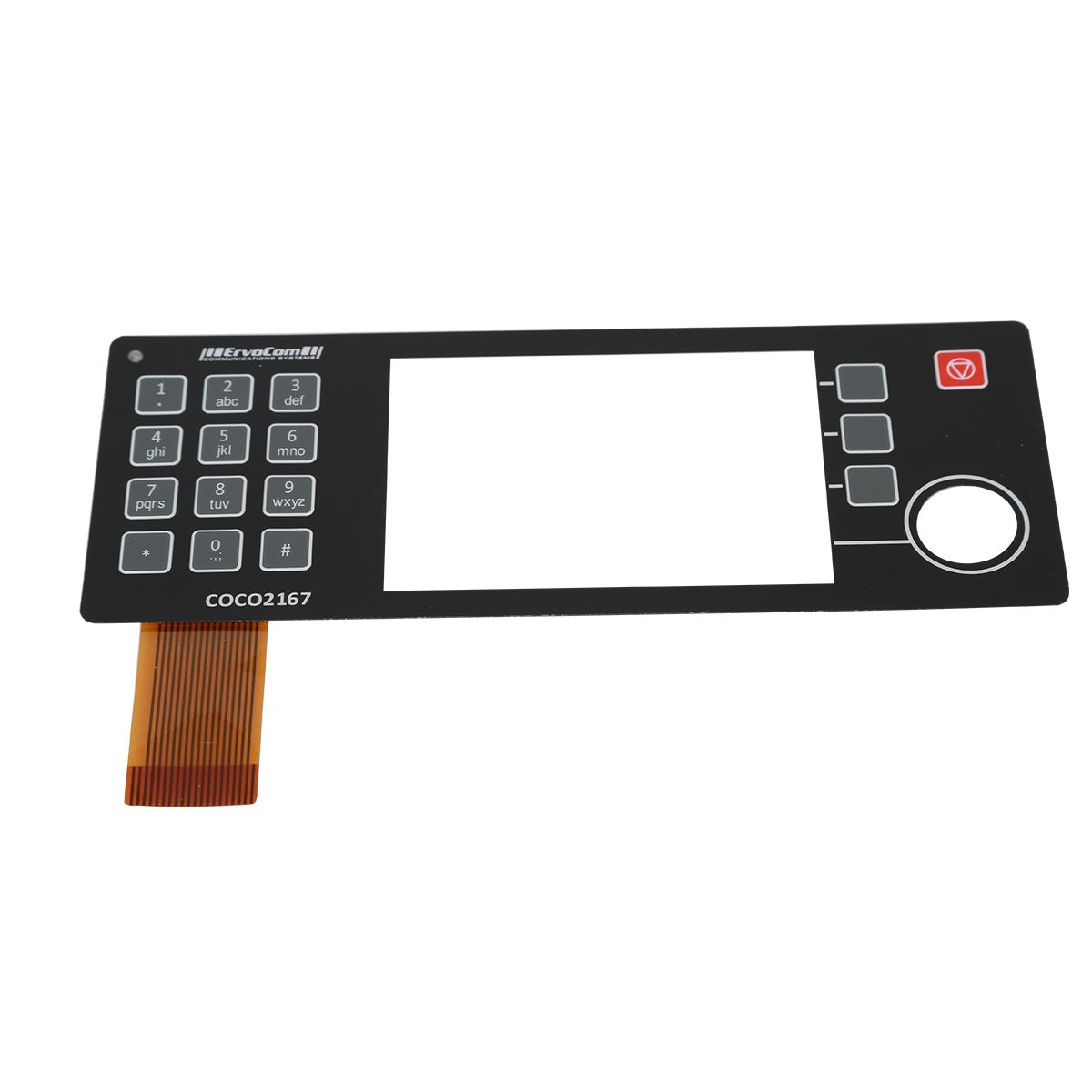

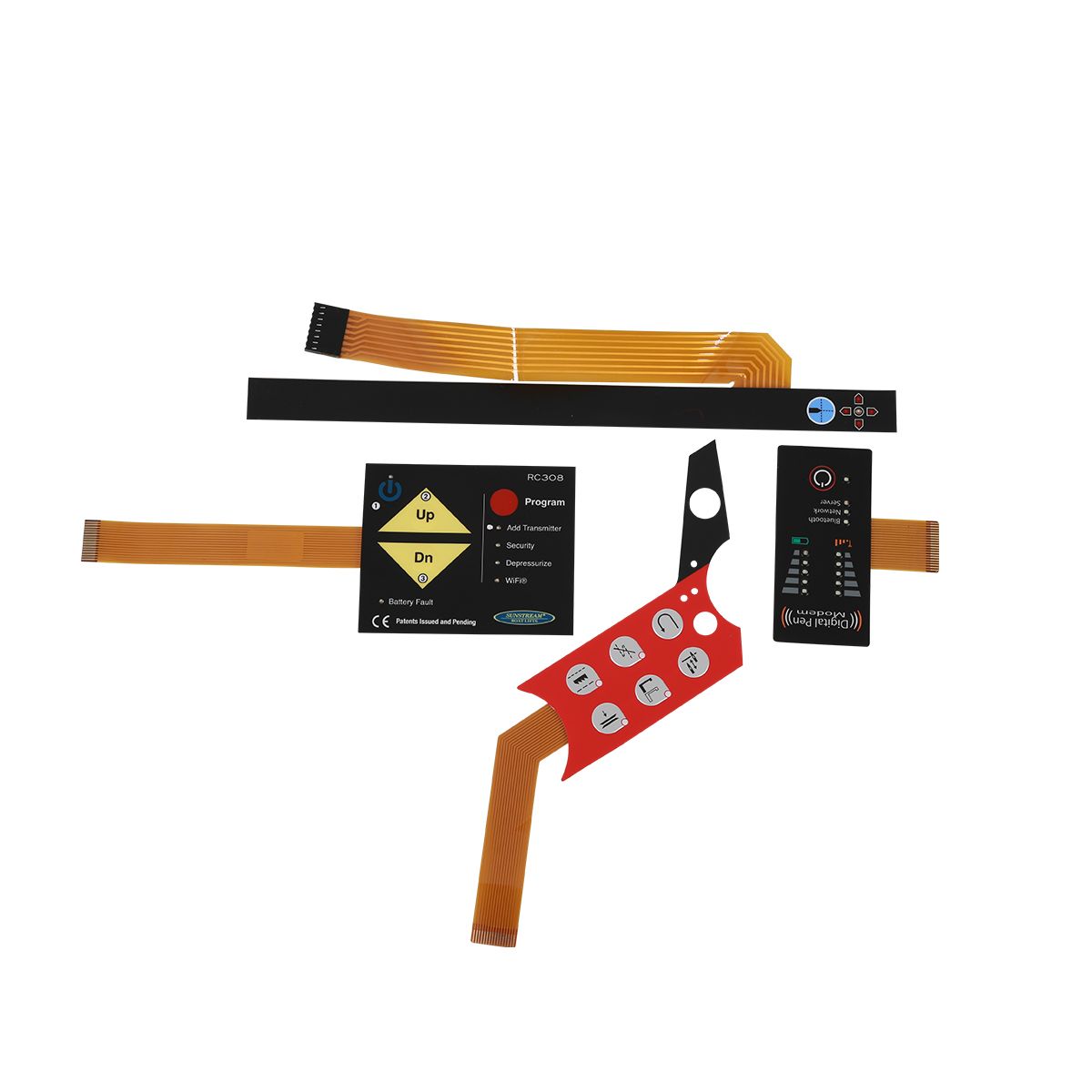

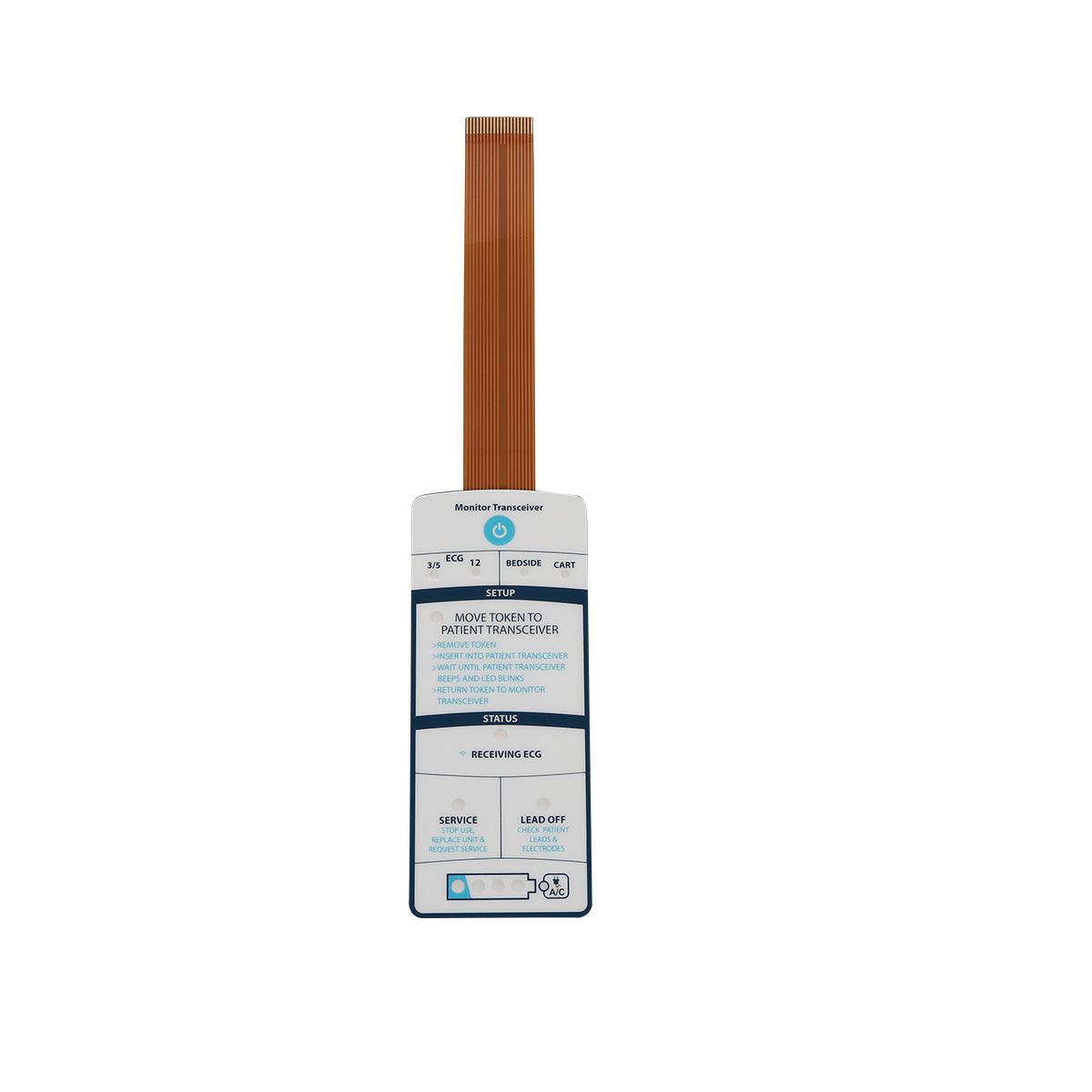

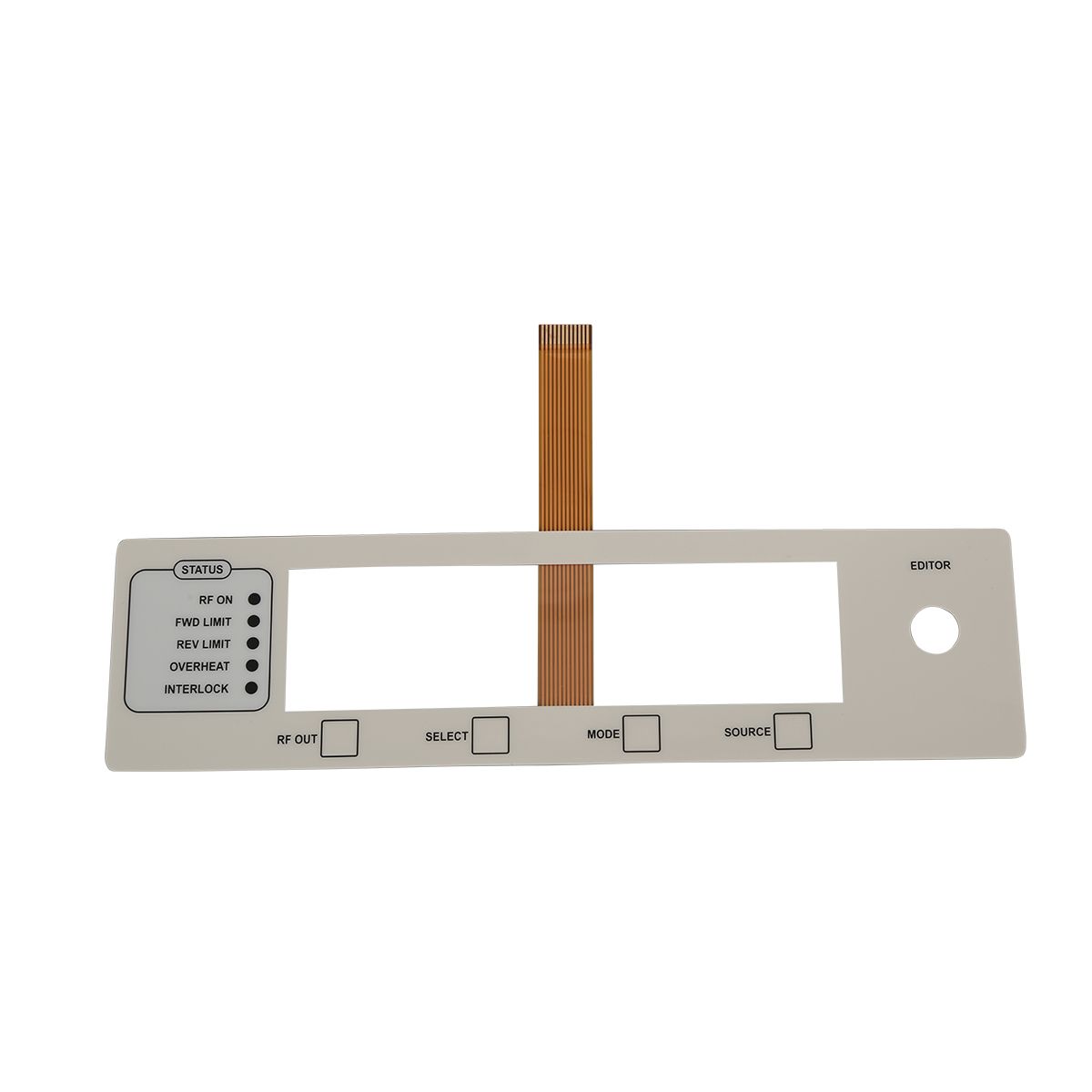

High Reliability Flexible Membrane Control Switch FPC Flexible Circuit


1) Custom made
2) Any size and shape available
3) Energy save product, low power consuming.
4) Withstand millions of cycles

Our membrane switches are widely used in:

3C Electronics,
Automobile industry
Decoration light project
Art work and gifts
Commercial usage.
Public facility

Both OEM and ODM orders are welcome.


Why choose us?

1 High reliable in function with Low cost
2 Function test 100% before shipment Rosh
3 Three factories to support mass production
4 Professional staffs and in administration level
4, insulating ink selection and major technical indicators: a membrane switch lead protective insulation ink, should the election with the conductive ink and film sheet of insulation to match ink, which is their adhesion is of great help in the membrane switch, the regular use Aiqi Sen's ED-452SS UV curing inks, color blue or colorless and transparent, the insulation is 2400VAC/MIL. The insulating ink technical parameters:
    A, should be fully mixed before use
    B, according to the required insulation properties, select the mesh screen for the 160-300 mesh,
    C, light-curing energy control 300-600MI/CM2
    D, screen printing ED452SS take 3-5 minutes after the UV curing, help to achieve better quality results.
    These are only the membrane switch manufacturing process in the use of materials, screen printing technology has made some major shows In fact, the production of membrane switch will encounter such as sheets of the electrostatic elimination , decorative ink color Bianhua problem and silk screen printing place and the environment, cleaning and so on will affect the quality of screen printing. Therefore, the need to screen at the right adjustments and with the whole process of web Plates Xuanze, ink the Texingxuanyong, Jiao scraping the hardness, scratch Yinjiao Duo of control and scraping the five screen printing Sudu set Deng Bian Liang, Bidingkuaizhi was excellent membrane switch products.


5 Expert sales team to support customer services.
6 Metal dome or silicone keypad is also available.
7 Waterproof seal & design reach IP65.
8 17 years rich experiences in cooperation with famous brands such as SANYO/Philips /Siemens /Mettel etc.

Insulation Resistance	<100MΩ,250V DC	Contact resistance	<1Ω /cm
operating voltage	≤ 50VDC	working current	25- 100mA,0-30V DC
reliability/service life	>1 million times/Withstand millions of cycles	Operating humidity	when40°C,<98%RH
spring time	≤ 5ms	substrate voltage	2000V DC
Tail flexiblility	any angle within 180 degree	Switch travel	Flat Type 0.05-0.3mm tactile type:0.3-1.5mm
