| Prod Model: |
K4C2-1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Keypad Type: |
Laser Carving |
| Keypad Materials: |
Translucent / Transparent Silicone |
| Legends Color: |
Available |
| Keypad Color: |
Available |
| Contacts: |
Black Carbon Pill or Conductive Printing |
| Surface Coating: |
One or Two Color Coated |
| Materails Report: |
SGS, RoHS, ISO9001 |
| Type: |
Flat |
| Material: |
Silicone |
| Application: |
Camera |
Product Description

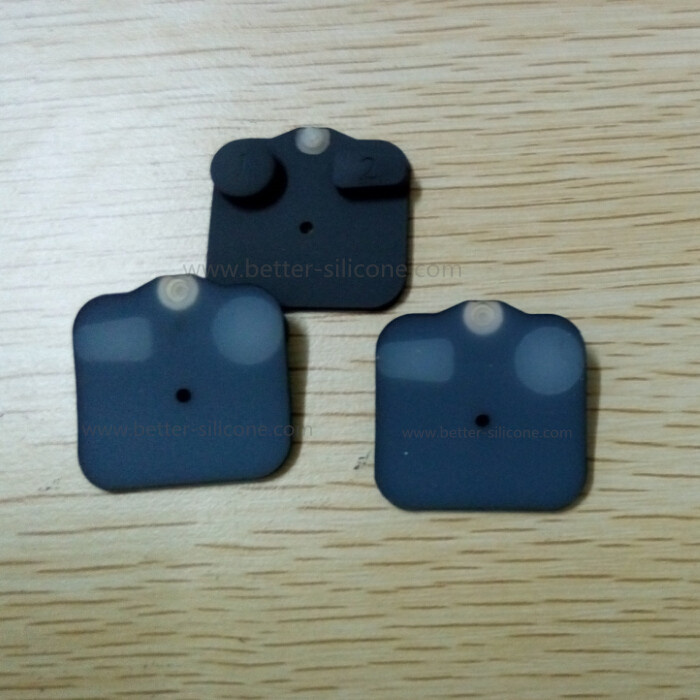

Laser Etching Silicone Rubber Keypad
Laser etched silicone keypads are customized using translucent silicone rubber which is available in a variety of colors.
Generally, custom made laser etching rubber keypad, the materials choose transparent silicone rubber, which better than normal translucent silicone materials.

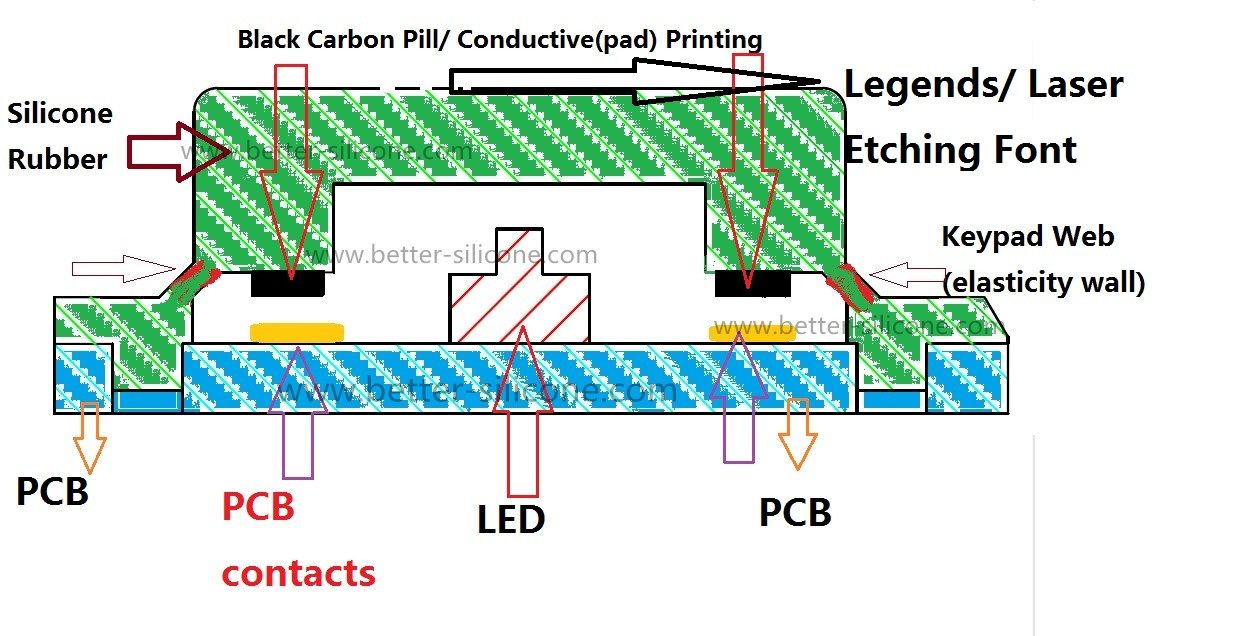

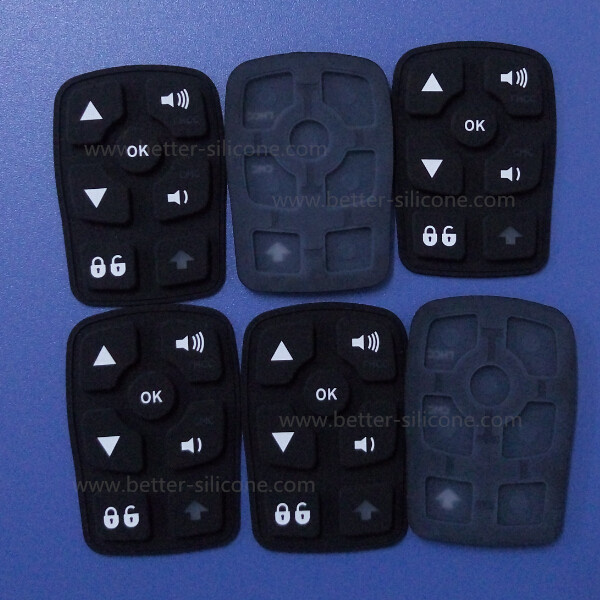

After finished basic compression transparent elastomer rubber keypads production, the laser etching keypads are sprayed opaque coating. First processing coated color (inner color) is same to the desired legends color, and the second processing coating color which is keypad surface colors.
After finished the laser keypads coating, puting the keypads into the laser carving machines for laser etching process.
Notes: Inner color and surface color gennerally is big color contrast.
Like inner plating color is white, the surface color mostly choose black.

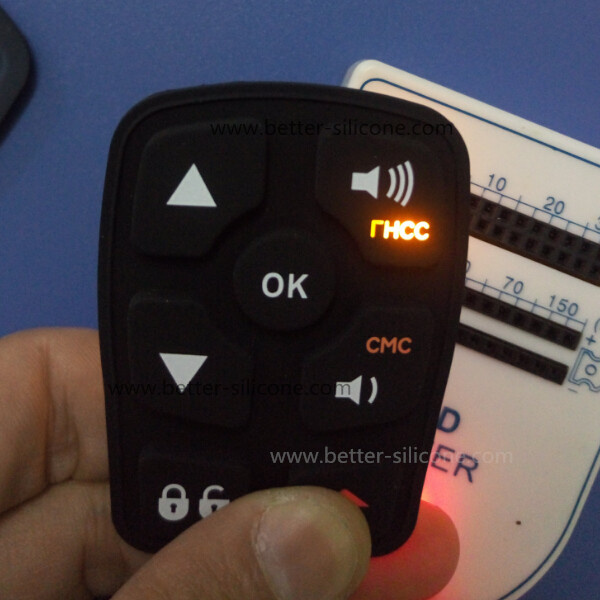

Choose inner translucent silicone keypad with gray or black color keypad to do laser carving process, the keypad can't shows laser mark characters without backlight.
Xiamen Better Silicone Co.,Ltd can help you decide which are suitable for your particular laser etched rubber keypads.
Main Silicone Rubber Keypads1. Silk Screen Silicone Keypad2. Laser Etched Silicone Keypad3. Epoxy Coating Silicone Keypad4. P+R Keypad5. Double Color Silicone Keypad6. Backlight Silicone Keypad7. Fluorescent Silicone Keypad8. Conductive Printing Silicone Keypad9. M+R Keypad Quickly Quotation Requirements1. Offer 2D, 3D design (PDF, CAD, STEP, IGS, slprt. ) drawings, or samples2. Include number of legend and silicone colors, Of need silicone light guide.3. With or without carbon pills4. Keypads surface demands: Laser Etched, Silkscreen, Spray Coating, UV Coating etc.5. Quantities to be quotedThese are the primary elements for a quotation. Other details such as travel, force, durometer and tactile response can be determined at the time of order.Specialty features such as protective coatings, laser etching, light pipes, etc. should be included.| Silicone Keypad Surface Process | UV Coating, Laser Etching, Silly Printing, Spray Coating etc. |
| Plastic Keycap Surface Process | UV Coating, Metallic Plated, Light Guide etc |
| Combination | Glue |
1.) Mold-Making Plant
2.) Silicone Rubber Compression Plant
3.) Plastic Injection Plant
4.) Liquid Silicone Rubber Injecton Plant (LSR)
5.) Assembly Plant.
3. Five Experienced Designers and Engineers
4.Production and Test strictly according to ISO9001.Test Equipment: 3D Projectors, Sealing Testor, Elasticity Measurement, Durometer etc.5. Production Environment6. Rapid Reaction Organization: Support Customer at short time
Xiamen Better Silicone Import and Export Co., Ltd, which specialized in making Rubber Compression / plastic injection /Liquid Silicone Rubber Injection mold tool and producing silicone rubber compression parts, plastic injection parts, Liquid silicone rubber injection parts: Rubber Sheet, Gasket, O-RING, Seal, Silicone Rubber Valve, Silicone Rubber Keyboard, Rubber Nozzle, Rubber Grommet, Silicone Bushing Sleeves, Rubber Damper, Rubber Bumper, Rubber Bellows, Silicone / Liquid Silicone Mask, Connectors etc.
Xiamen Better Silicone Import and Export Co., Ltd have five production Plant:
1. Mold-Making Plants: Rubber Compression Mold, Plastic Injection Mold, Liquid Silicone Rubber Injection Mold
2. Rubber (Silicone) Compression Plant
3. Plastic Injection Plant
4. Liquid Silicone Injection Plant (Clear Room)
5. Assembly Plants (Clear Room)
As a factory management cooperation, we focus on improving Mold-making technology, each production plant efficiency, and take full advantage to enjoy customer's demands and meet marketing demand.
Our Advantage:
Own Precision Mold-making Technology (since 1998 years)
Experienced Technical Persons and Workers
One-stop Service: Mold Tool Making, Silicone Rubber Compression Production, Plastic Injection Production, Liquid Silicone Injection Production and Assembly.
Experienced Industry Knowledge, Leading industry: Electronic Industry (like Precision Silicone Rubber Smart Cellphone Parts, Rubber Keypad, 3M Adhesive Tape+Silicone Rubber etc), Medical Industry (like Silicone/Liquid silicone rubber mask/valve/gasket etc), Sanitary Industry (like Silicone Shower Head Nozzles).
Well-established and Down-to-earth Company: Improve production technology and also use qualified formal materials
