| Prod Model: |
XWM16101 |
| Connector: |
Female Housing |
| Adhesive: |
3m467 or 3m468 |
| Overlay Material: |
F150 or F200 |
| Colour Match: |
Pantone Number |
| Type: |
Convex |
| Material: |
PET |
| Application: |
Medical |
| Contact Type: |
Type Metal Dome |
| Brand: |
Singway |
| Certification: |
RoHS |
Product Description
Basic Info.

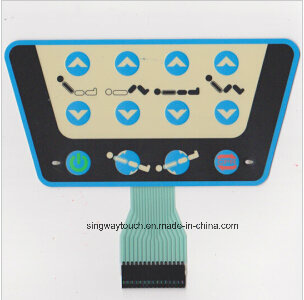

Name:Medical membrane switch
Colortrans:red/yellow/blue/white/black or as per request
Feature:dust-proof and waterproof
Certificate:RoHS/ISO 9001/SGS/etc
Custom Made:OEM/customize
Material:F200 + PET + DP Adhesive + 3M Adhesive
Adhesive:3M467 & 3M468 or no adhesive or customer required
Operation Temperature:-40ºC~70ºC
Insulation Resistance:<100MΩ,250V DC
Contact resistance:<1Ω /cm
operating voltage:≤ 50VDC
working current:25- 100mA,0-30V DC
reliability/service life:>1 million times
Operating humidity:when40°C,<98%RH
spring time:≤ 5ms
substrate voltage:2000V DC
Tail flexiblility:any angle within 180 degree
Switch travel:Flat Type 0.05-0.3mm tactile type:0.3-1.5mm
Why choose us ?
1 High reliable in function with Low cost
2 Function test 100% before shipment Rosh
3 Three factories to support mass production
4 Professional staffs and in administration level
5 Expert sales team to support customer services.
6 Metal dome or silicone keypad is also available.
7 Waterproof seal & design reach IP65.
8 17 years rich experiences in cooperation with famous brands such as SANYO/Siemens /Mettel etc.
Applications:
Our membrane switches are widely used in :
1.Medical Equipment
2.Telecommunications apparatus
3.Telephone systems
4.Household appliances
5.Security systems
6.Point of sale apparatus
7.Industrial controls
8.Access control systems.....
Competitive Advantage:
1.Beautiful appearance,rich and bright in color,design can be arbitrary,the products can fully reflect the individual style of the product itself and designer.
2.Panel can wash, good protection of durable color,characters,logos and other panel contents without injury.
3.Small size,light weight ,thin thickness, good tactility, abrasion resistant, installation and connection convenience.
Description:
LED
1. The volume is small, very light,Super-bright, Low power consumption
2. LED power consumption is quite low, dc drive, it consumes energy does not exceed 0.1 W, the same lighting effect than the traditional light source energy saving nearly 80%
3. Some say the LED light source for long life lamp.It for the solid cold light source, epoxy resin encapsulation, under the appropriate current and voltage, the service life of up to 60000 to 100000 hours
Metal dome
1.Good conduction performance, between the operator and the product has good enable switch and control function
2.With stable back stretch self-return after (press), to provide the operator with a comfortable sense of touch
3.As much as 1 million times of contact of long life
4.Contact with smooth, strong guide connectivity and springback stability and delicate touch
Our Product:
a) Tactile membrane switch
b) Non-tactile membrane switch
c) PCB/FPC
d) Shielding membrane switch
e) Embedded LED or resister membrane switch
f) Meatl keypad and keyboard
g) Sheet metal fabrication, cutting, bending, stamping and welding
h) Classic China custom new design waterproof push button switch membrane manufacturer
I) Overlay,Overlay with Adhesive,Overlay graphic
Technical Parameters
1.Electrical
| Maximun Circuit Rating: | 35V(DC),100mA,1W |
| Contavt Resistance: | 10Ω~ 500Ω |
| Insulation Resistance: | 100MΩ 100V |
| Dielectric: | 250VRms(50~60Hz 1min) |
| Contact Bounce: | < 5ms |
Life Expectancy: | Flat: ≥ 5million times |
| Tactile: ≥ 1 million times |
| Dura switch: ≥ 10million times |
2.Mechanical
| Actuation Force: | Flat:57~284g(2~10oz)
Tactile: 170~397g(6~14oz) |
Switch Strok:
| Flat: 0.1~0.5mm
Tactile: 0.6~1.5mm |
3.Environment
| Operation Temperature: | -40~+80 |
| Storage Temperature: | -40~+80 |
| Humidity: | 40,90%~95%,240hours |
| Vibration: | 20G,max.(10~200Hz,Mil-SLD-202,M204.Condition B) |
| Electrical Property |
| Working voltage | working current | contact resistance | Insulation resistance | Base material pressure | Recoil time | Loop resistance | Insulation ink pressure |
| ≤50VDC | ≤100mA | 0.5~10 Ω | ≥100m Ω | 20KDVC | ≤6ms | 50 Ω ,150 Ω ,350 Ω or based on customer's requirement | 100VDC |
| Mechanical Property |
| Working life | Closingdisplacement | Snapping back time | Power standard | The caudal may old |
| >1,000,000 | 0.1~0.4mm(not touch type);0.4~1.0mm | ≤6ms | 15~750g | ≤180° |
| Environmental Performance |
| Operating temperature | Storage temperature | Working humidty | Barometric pressure | Altitude |
| -20°~+70° | -40°~+85° | 95%±5% | 86~106kDa | 0~400m |
| Printing indicators |
| 1,The printing size deviation±0.1mm;Exterior line deviation ±0.1mm. |
| 2,No ink dispersed,no word disability. |
| 3,The color difference is not more than grades two. |
| 4,No crease or paint drop. |
5,Window transparent and clean,color uniformity,no scratch/pinhole/or impurity.
What are Membrane Switch?
A membrane switch is a momentary switching device that is manufactured by using a series of flexible layers of polymer films and adhensives. The upper-most layer, called a graphic overlay, is manufactured by printing on the second surface of clear polyester or polycarbonate film. Membrane switches can be constructed with multiple circuit layers, and more elaborate graphic design features, such as domed key embossing. Designs that are more complex require, more material layers for proper construction and reliable operation. Membrane switches, when combined with components such as a tactile dome, graphic overlay, or integrated LEDs or resistors can provide the designer with virtually limitless capablities to create the ideal custom user interface for their products. |
