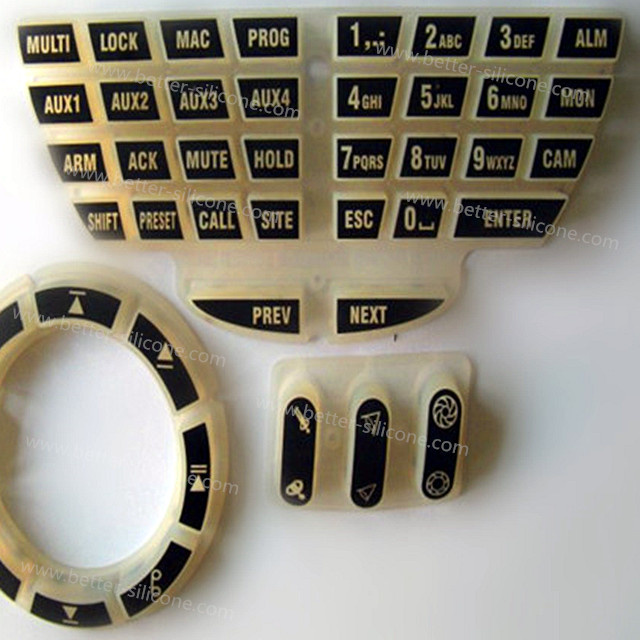

Customize Plastic Rubber Silicone Laser Carve Keypad

Prod Model:	LKL1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Available
Materials:	Silicone Rubber
Work Temperature:	-40c-230c
Environmental Friendly:	Raw Material Pass RoHS, SGS Test
Design Drawings:	Accept
Logo:	OEM and ODM Are Welcome
Size:	Can Be Customized
PU Coating:	Accept
Type:	Flexible
Material:	Silicone
Application:	Camera

Product Description

Laser Carve Marking Engraving Etched Silicone Rubber Keypad

Laser carve silicone keypads are customized using translucent silicone rubber which is available in a variety of colors.
Generally, custom made laser carve rubber keypad, the materials choose transparent silicone rubber, which better than normal translucent silicone materials.
After finished basic compression transparent elastomer rubber keypads production, the laser carve keypads are sprayed opaque coating. First processing coated color (inner color) is same to the desired legends color, and the second processing coating color which is keypad surface colors.
After finished the laser keypads coating, puting the keypads into the laser carve machines for laser carve process.


Notes: Inner color and surface color gennerally is big color contrast.
Like inner plating color is white, the surface color mostly choose black.
Choose inner translucent silicone keypad with gray or black color keypad to do laser carve process, the keypad can't shows laser carve characters without backlight.
Xiamen Better Silicone Co.,Ltd can help you decide which are suitable for your particular laser carve rubber keypads.

1. Laser Carve Production Process

1) Laser etched rubber keypads are manufactured using translucent silicone rubber that is available in a
variety of colors.
2) The laser keypad is then sprayed with opaque coating.
3)After coating, the translucent silicone rubber is laser etched with the desired legends to expose the translucent material on the surface of the custom keypads.

2.Laser Carve Keypad Product Feature

When backlit only the laser carve characters on the laser keypads transmit light. This makes
them ideal for applications where excess light spillage, would and light glare would detract from
the usability of the end product.

Main Silicone Rubber Keypads

1.    Silk Screen Silicone Keypad
2.    Laser Carve Silicone Keypad
3.    Epoxy Coating Silicone Keypad
4.    P+R Keypad
5.    Double Color Silicone Keypad
6.    Backlight Silicone Keypad
7.    Fluorescent Silicone Keypad
8.    Conductive Printing Silicone Keypad
9.    M+R Keypad

Quickly  Quotation Requirements

1. Offer 2D, 3D design (PDF, CAD, STEP, IGS, slprt. ) drawings, or samples
2. Include number of legend and silicone colors, Of need silicone light guide.
3. With or without carbon pills
4. Keypads surface demands: Laser Etched, Silkscreen, Spray Coating, UV Coating etc.
5. Quantities to be quoted

Our Advantage:

1. Precision Own Mold-Making Technology (Since 1998)

2. Competitive Price: Origin Manufacturer.
   1.) Mold-Making Plant
   2.) Silicone Rubber Compression Plant
   3.) Plastic Injection Plant
   4.) Liquid Silicone Rubber Injecton Plant (LSR)
   5.) Assembly Plant.

3. Five Experienced Designers and Engineers

4.Production and Test strictly according to ISO9001.

Test Equipment: 3D Projectors, Sealing Testor, Elasticity Measurement, Durometer etc.

5. Production Environment

6. Rapid Reaction Organization: Support Customer at short tim

3. Application

Cell phone, electronic dictionary, calculator, remote controller, POS terminal, etc.

4. Advantages

1)high precision and good aesthetic
2)cost effective to large quantities
3)long lifespan keypad
4)all shapes and colors are available for customer's design

5. Our advantages

1). Precision Own Mold-Making Technology (Since 1998)
2). Competitive Price: Origin Manufacturer.

  a. Mold-Making Plant
  b. Silicone Rubber Compression Plant
  c.Plastic Injection Plant
  d.Liquid Silicone Rubber Injecton Plant (LSR)
  e. Assembly Plant.

3). Five Experienced Designers and Engineers
4). Production and Test strictly according to ISO9001.
Test Equipment: 3D Projectors, Sealing Testor, Elasticity Measurement, Durometer, etc.
5). Production Environment
6). Rapid Reaction Organization: Support Customer at short time

Quickly Quotation Requirements:

1. Show a top and side view
2. Dimension as shown
3. Include number of legend and rubber colors
4. With or without carbon pills
5. Quantities to be quoted

These are the primary elements for a quotation. Other details such as travel, force, durometer and tactile response can be determined at the time of order.Specialty features such as protective coatings, laser etching, light pipes, etc. should be included.

1.	Offering 2D/3D design drawings, Samples or other basic infromation
2.	Materilas Demands
3.	Sizes Tolerance Demands
4.	Hardness Demands:
5.	Color Demands
6.	Mold Life Demands, Mold Steel Demands
7.	Surface Demands
8.	Flame Retardant, Oil-proofing etc.
