Customized Automatic Marking Line Laser Marking Machine Mark on Plastic

Name: Customized Automatic Marking Line Laser Marking Machine Mark on Plastic
Brand: all-electronics-online.com
SKU: 713910212
Availability: InStock
Rating: 4.3 (128 reviews)

Price:	US $ 5600/Set
Min Order:	1/Set
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	OTF-09
Model No.:	Dp-F10-Otf
Certification:	SGS, Ce
Control:	Automatic
Condition:	New
Power:	10watt, 20watt, 30watt
Export Markets:	Global
Engraving Machine Type:	Laser Engraving Machine
Laser Type:	Fiber Laser
Current:	AC
Usage:	Metel, Plastic

Product Description

Laser marking system with EAR marking controlling sofeware

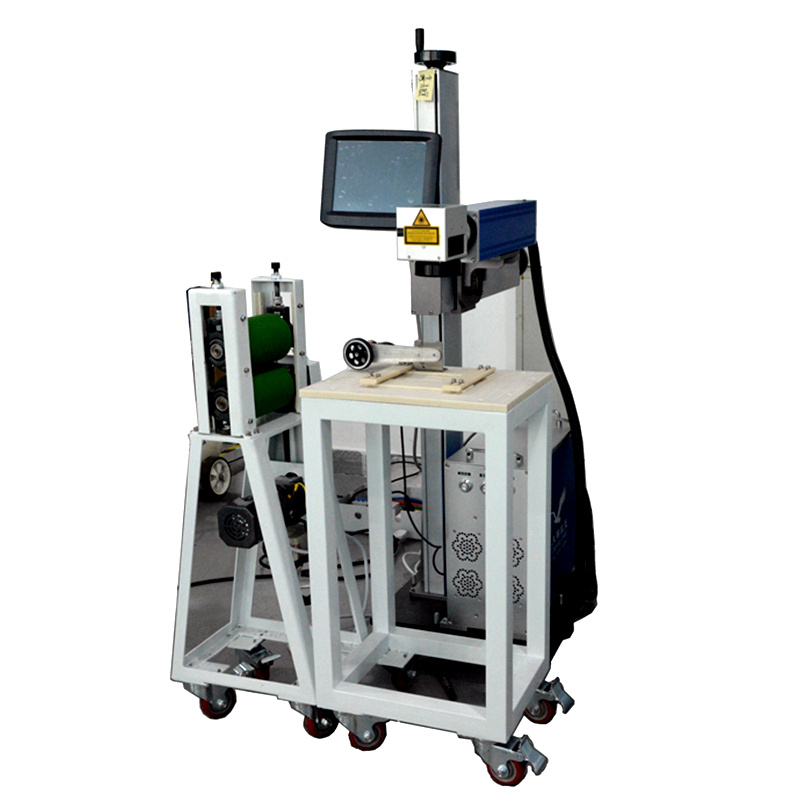

20watt Fiber laser machine Working table

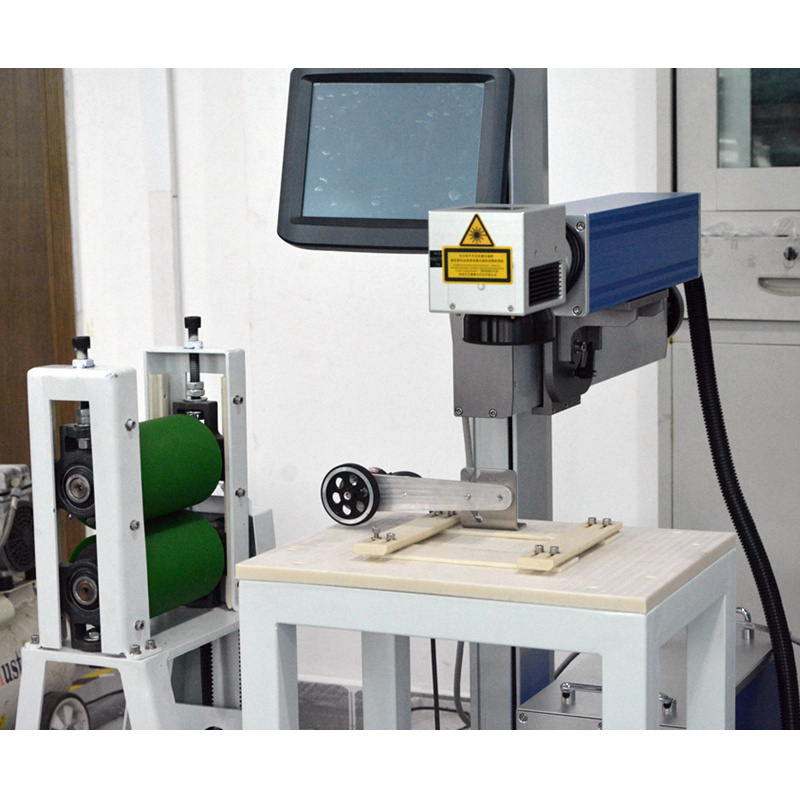

Heat insulation plastic strip on the running line

Customized Automatic Marking Line laser marking machine mark on plastic

ON THE FLY MARKING

Laser marking on the fly offers several advantages to manufacturers. Beside the simple reduction in costs and labor using traditional printing methods, on the fly lasing allows for significant improvements in ROI over other forms of laser marking. With no part loading, manually or robotically, parts are rapidly fed across the laser field through to the next part of the manufacturing process.
Vision systems can even allow parts to arrive in the laser field in different orientations. The optics identify the variation to the laser which orients for each part's alignment. This can be done at very high speeds, possibly meaning less time spent getting your parts to face a certain direction.
Dapeng Lasers' engineers have years of experience developing part delivery systems that ensure a combination of high speed and precision lasing.

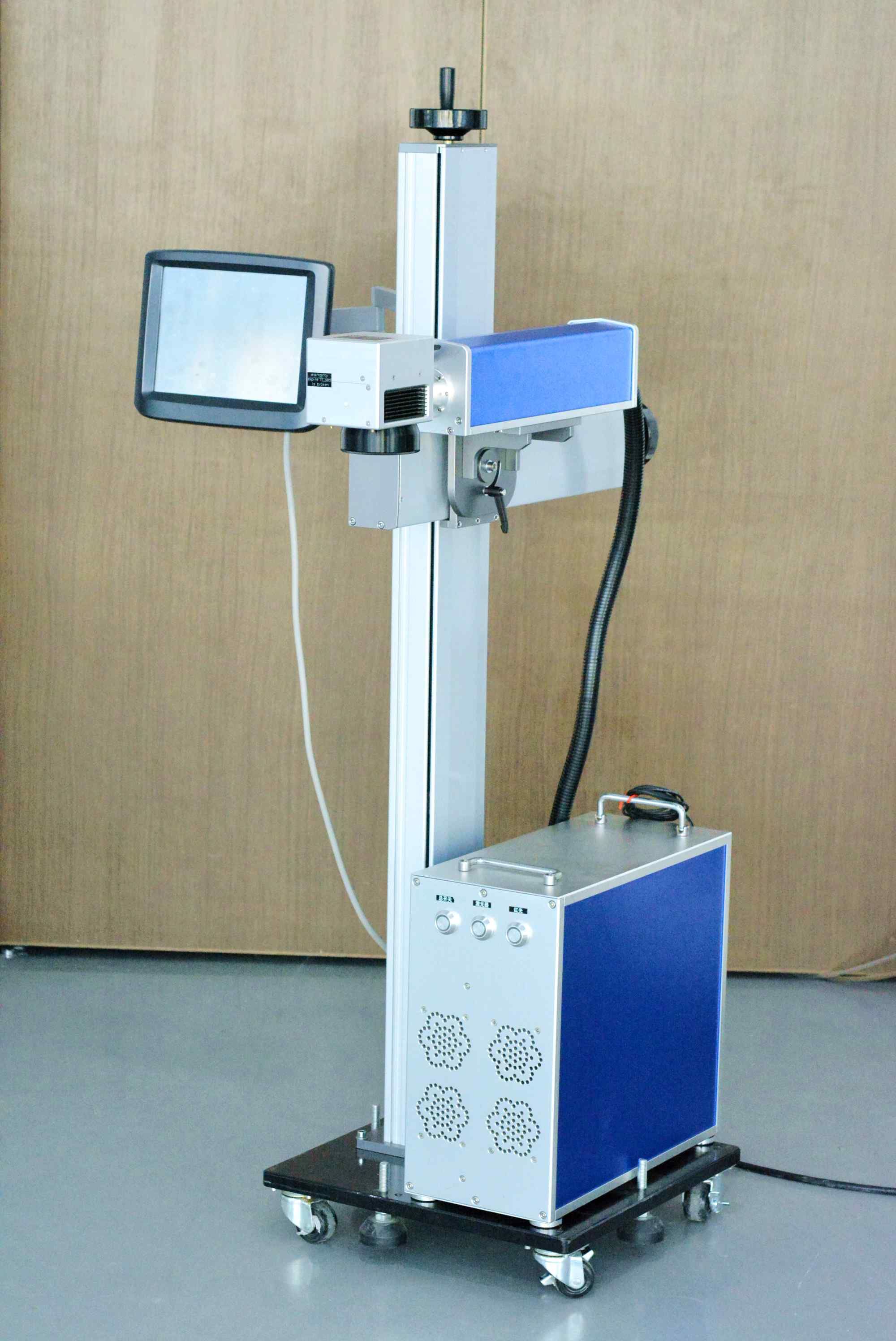

DP-OTF On The Fly Marking systems
DP-OTF laser marking machine (Marking On The Fly), adopts imported top quality or China top brand fiber laser source , high-speed galvanometer scanning system, Japan electro-optical sensors, and professional On The Fly marking control software, can increase production speed, reduce bad pieces, improve line safety, and eliminate down time.

Technical paramter:

Model	DP-F10-OTF	DP-F20-OTF	DP-F30-OTF
Laser Power	10W	20W	30W
Laser wavelength	1064nm	1064nm	1064nm
Highest feeding speed	300m/min	300m/min	300m/min
Marking	Can mark on stationary or moving parts
Software	automatic encoding, variable text, date, serial number, lot number, bar code and two-dimensional code printing, and can be modified according to customers ' different needs of production line flexibly.
Adjustable lift range	0~1000mm or custom design
Power consumption	≤600W	≤800W	≤2KW
Power supply requirement	220v/50HZ	220v/50HZ	220v/50HZ

Applications:
We offer On The Fly Laser Marking Machine with following applications:
l         Laser marking of metal & non-metal material and products: Stainless steel, gold, silver, copper, aluminium alloy, hardware, tools, acrylic, ceramics, plastics, organics, thermo-elastomer rubbers, paper and others
l         Hall marking on Gold
l         Automotive & Engineering Industries
l         Electronic industry: Capacitor, inductor, PCB, IC, connector, control panel and other instruments
l         Others: Cosmetics, food package, bottle, gift, advertisement & sign crafts, craft & gift making

Marked sample works but not limited

Founded in 2005, Shenzhen Dapeng Laser Technology Limited is the market leader in developing, manufacturing and servicing products and systems for laser marking, laser welding, laser cutting and engraving. The company provides equipment to a wide range of markets including medical industries, jewelry, automotive, aerospace, military, semiconductor and solar industries as well as the battery, electric vehicle, electronics and general industrial markets. With a decade of cumulative laser equipment design and manufacturing expertise, Dapeng Laser is able to offer standard and custom designs that solve challenging OEM applications. Dapeng Laser is CE and FDA certified. Our laser marker systems are highly precise, most reliable, and cost-effective. We have sold over thousands of systems worldwide for last 10 years. Our products can be found in Europe, America, Russia, India, Vietnam, Thailand, Indonesia, Egypt, Brazil, Colombia, and South Africa, among others.

Since our inception, customer support has been a top priority and that standard still remains today. We hope that we will have a chance to give you a great laser solution with Dapeng Laser products.

Our mission is to be a full service provider of industrial laser equipment that emphasize the quality, reliability, safety, cost effectiveness, and technical support.
