Customized FTTH Sc APC Upc Fiber Optic Fast Connector
| Price: |
US $ 0.1-1/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
SC fast connector |
| Item Name: |
Sc APC Upc Fast Connector |
| Keywords: |
Sc Fast Connector/Quick Connector |
| Polish Face: |
Upc/APC |
| Length: |
50mm,55mm,60mm |
| Insert Loss: |
<0.3dB |
| Cable Od: |
0.9/2.0/3.0mm |
| Working Temperature: |
-40~85 |
| Customized: |
Available |
| Transmission Medium: |
Single-Mode |
| Structure: |
SC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
PC(',UPC) |
Product Description

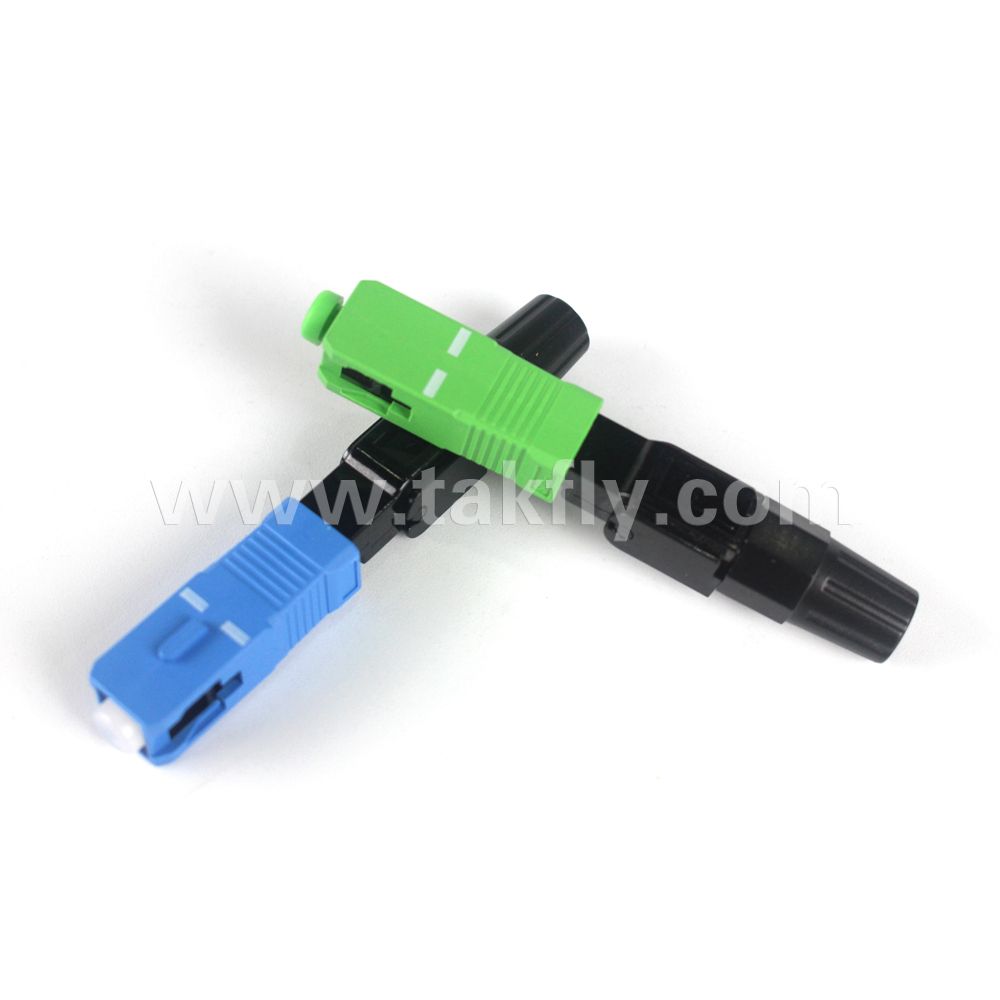

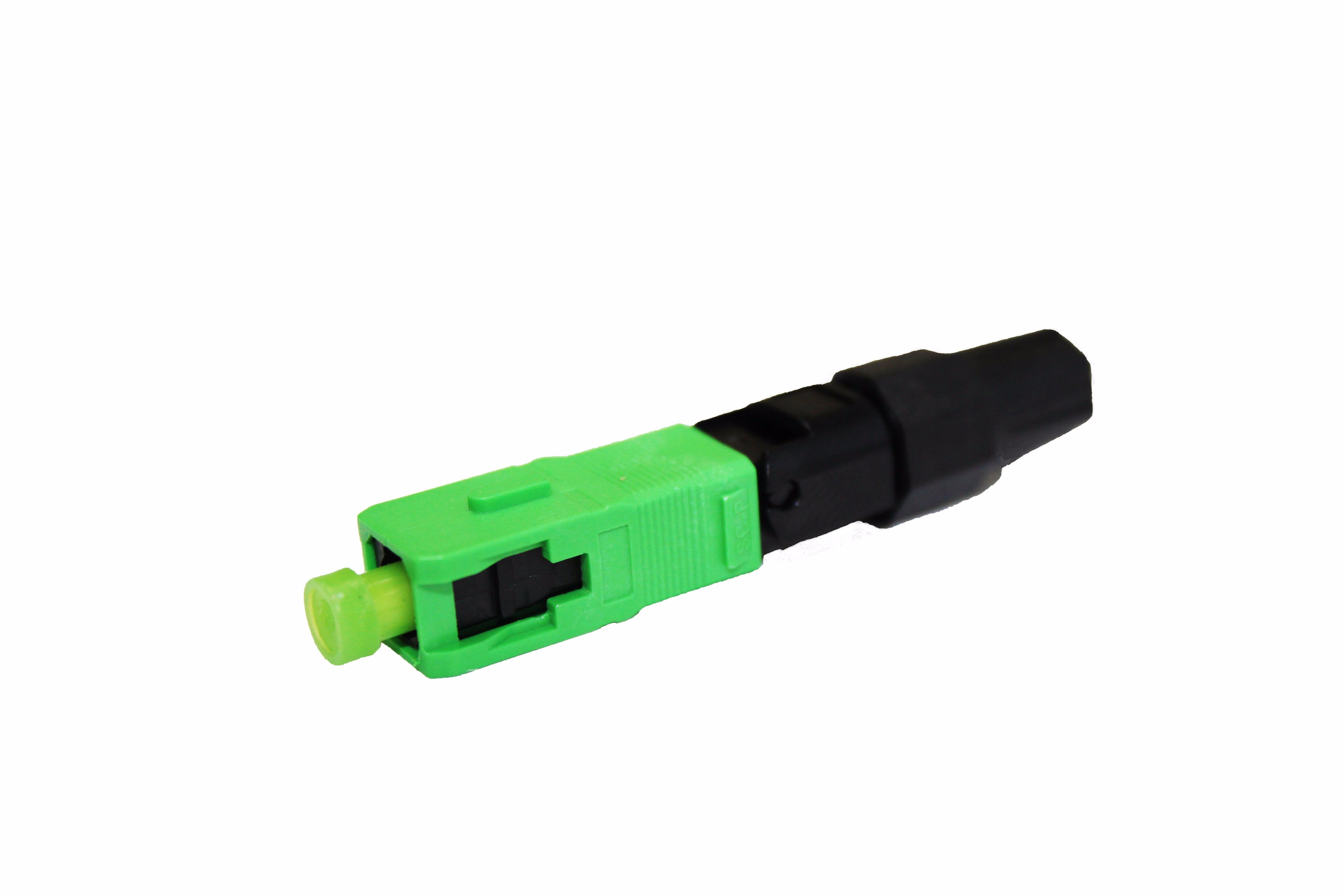

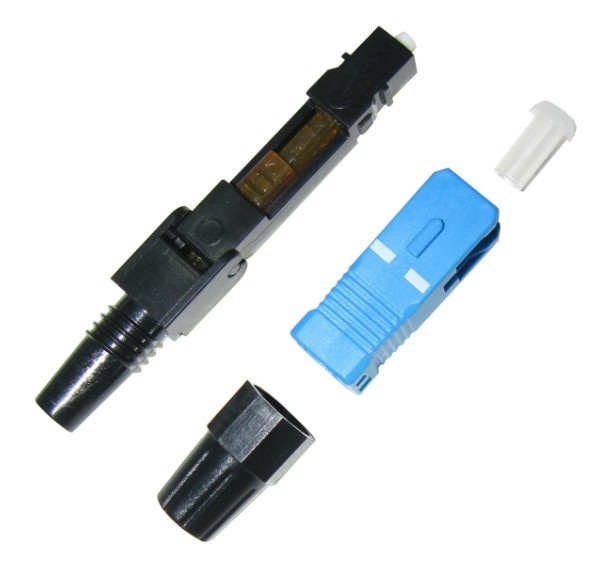

Customized FTTH Sc APC Upc Fiber optic Fast Connector Fiber optic fast connector designed for FTTH. It is a new generation of fiber connector used in assembly. It can provide open flow and precast type
which optical and mechanical specification meets the standard optical fiber connector. It is designed for high quality and high eddiciency for
installation, the structure of crimping position is a unique design.
Application
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication
Main FeaturePolish type | SC/APC SC/UPC |
| Applicable Cable | P3 X 2 Rubber-insulated wire | Φ3.0 Fiber |
| Fiber Diameter | 125μm | 125μm |
| Coating Diameter | 250μm | 250μm |
| Fiber Mode | SM OR MM | SM OR MM |
| Installation Time | ≤40S | ≤40S |
| Construction Site Installation Rate | ≥99% | ≥99% |
| Insertion Loss | ≤0.5dB(typical value≤ 0.8dB)(1310nm or 1550nm) | ≤0.5dB(typical value≤ 0.8dB)(1310nm or 1550nm) |
| Return Loss | 45dB(average 50dB) | 45dB(average 50dB) |
| Tensile Strength | >30 | >20 |
| Working Temperature |
-40°C~+70 °C
| -40°C~+70 °C
|
Reusability
| ≥50 | ≥50 |
Normal Life
| 30 years | 30 years |

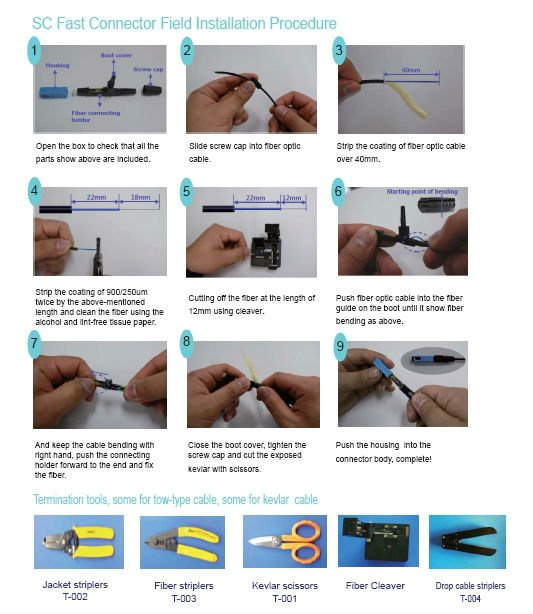

How to install a fast connector?
Why choose Takfly1.High efficiency,with more than 3000 square meters size & 150+ professional workers can finish your order within
a week
2.Quality assurance,we are a factory strictly operating ISO 9001:2008 quality control system,twice check before
delivery
3.Competitve price.As a factory,costs are controllable;
4.Flexible payment term.T/T,L/C,paypal is availble;
5.Professional,Our workers are at least 3 years experience in fiber optic fields,besides,we cooperated with Electroson,Telefonica,etc
6.Complete product range, products cover fiber optic cable,Fiber optic adapter,attenuators,full total FTTH solution.
Below are some factory pics,please check.
Would you like some Sc apc upc fast connector sample to test?Please leave me an inquiry or contact me directly.
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.
TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
