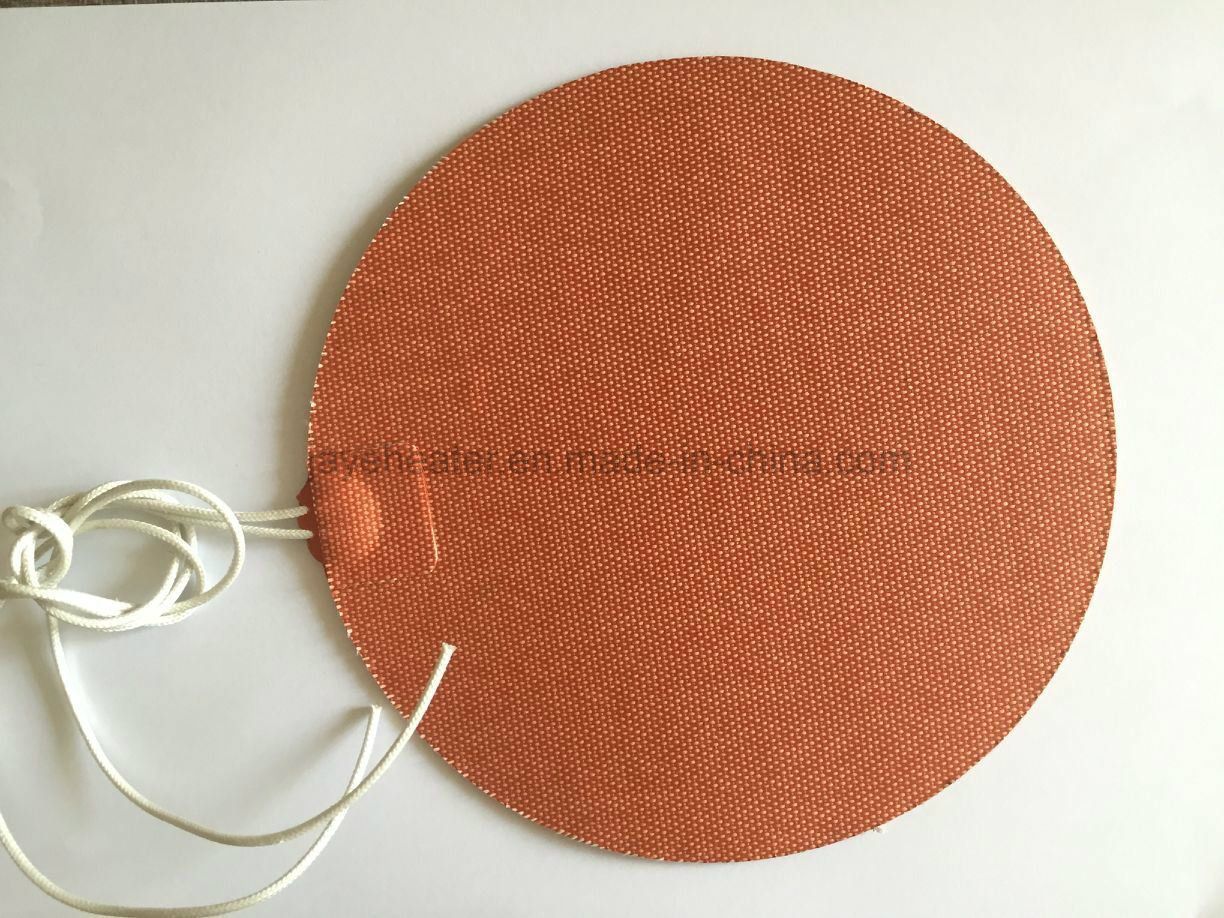

Customized High Quality Silicone Heater

Prod Model:	JY-SH040
Voltage:	Customized
Wattage:	Customized
Logo Mark:	Make as Customer Required
Insulation:	Red Sponge Insulator

Product Description

The silicone rubber Pad heater have advantages of thinness, lightness and flexibility. It can improve heat transfer, accelerate warming and decrease power under the process of operation. Fiberglass reinforced silicone rubber stabilizes the dimension of heaters.
 Features

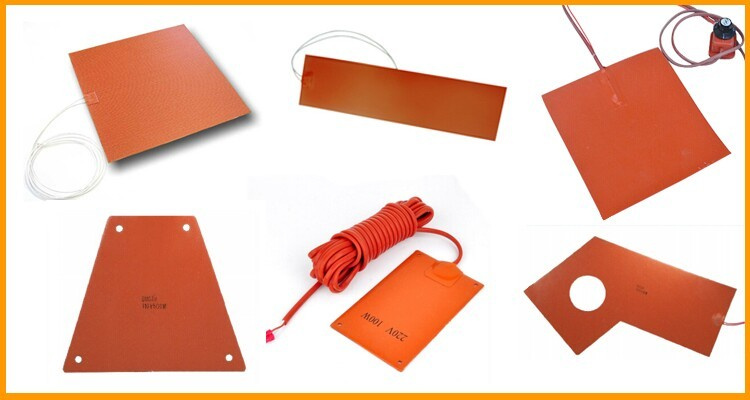

Designed according to actual shape and dimension, including three-dimensional geometry to meet the requirement of your equipment. Moistureproof and non-slip silicone rubber material offers longer working life of heaters.
Simply sticking to your components through sulfuration, adhesive or fixer.

Appliance
Freezing protection and anti-pressure, can be used in all kinds of instruments and equipments
Applied in the medical equipments such as blood analyzer, test pipe heater, etc
The auxiliary equipments of computer such as laser printer, etc
Plastic film sulfuration

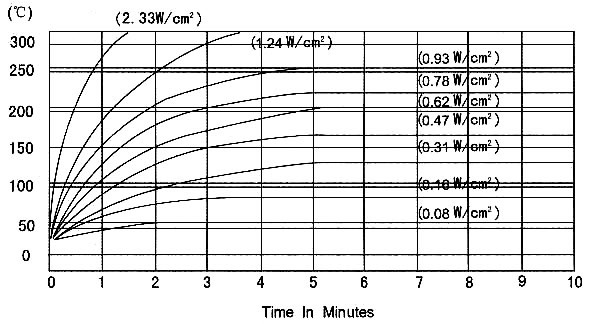

 Surface Temperature VS. Time
This drawing explains the surface temperature of a silicone rubber heater when it is not insulated and be put vertically at 20 ºC still air. The data is supported as reference tool according to the standard structure of 1.4mm thickness.
Technical Parameters:

Dimension	Dimensions on request
Thickness	4.5mm Note: There is an extra thickness at the connection point.
Heating element	Nickel-Chromium or Copper-Nickel resistance wire wound around a fiberglass core	Nickel-Chromium or a Copper-Nickel resistance wire
Voltage	Any voltage on request (Any AC or DC)
Output	Up to 5KW/M2
Tolerance	±10% on resistance
Max surface temperature	300 degree
Min exposure temperature	-60 degree
Size/Shape Limitations	Maximum width of 48 inches, no maximum length
