Customized Indoor 12 Fiber Om4 Fiber Optic Distribution Cable

Name: Customized Indoor 12 Fiber Om4 Fiber Optic Distribution Cable
Brand: all-electronics-online.com
SKU: 815210255
Availability: InStock
Rating: 4.8 (58 reviews)

Price:	US $ 0.1-10/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	fiber optic cable
Manufacturer Type:	Factory
Item Name:	Om4 Fiber Optic Cable
Keywords:	Om4,Fiber Optic Cable,Optic Fiber
Fiber Core:	Customized
Jacket Material:	PVC or LSZH
Length:	Customized
Print:	Customized
Application:	Probe
Type:	Multi-mode Fiber
Connection Structure:	LC
Certification:	VDE

Product Description

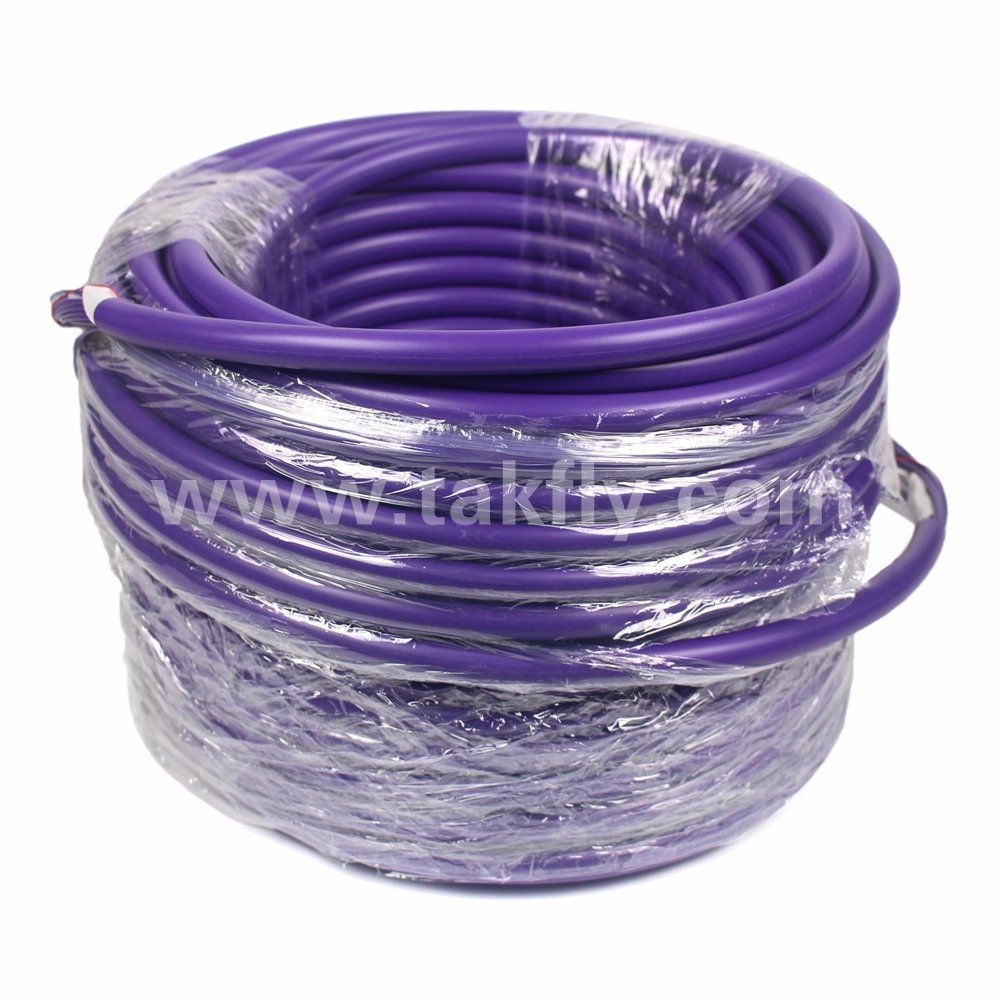

Customized Indoor 12 Fiber Om4 Fiber Optic Distribution Cable

Om4 Fiber Optic Cable Brief description

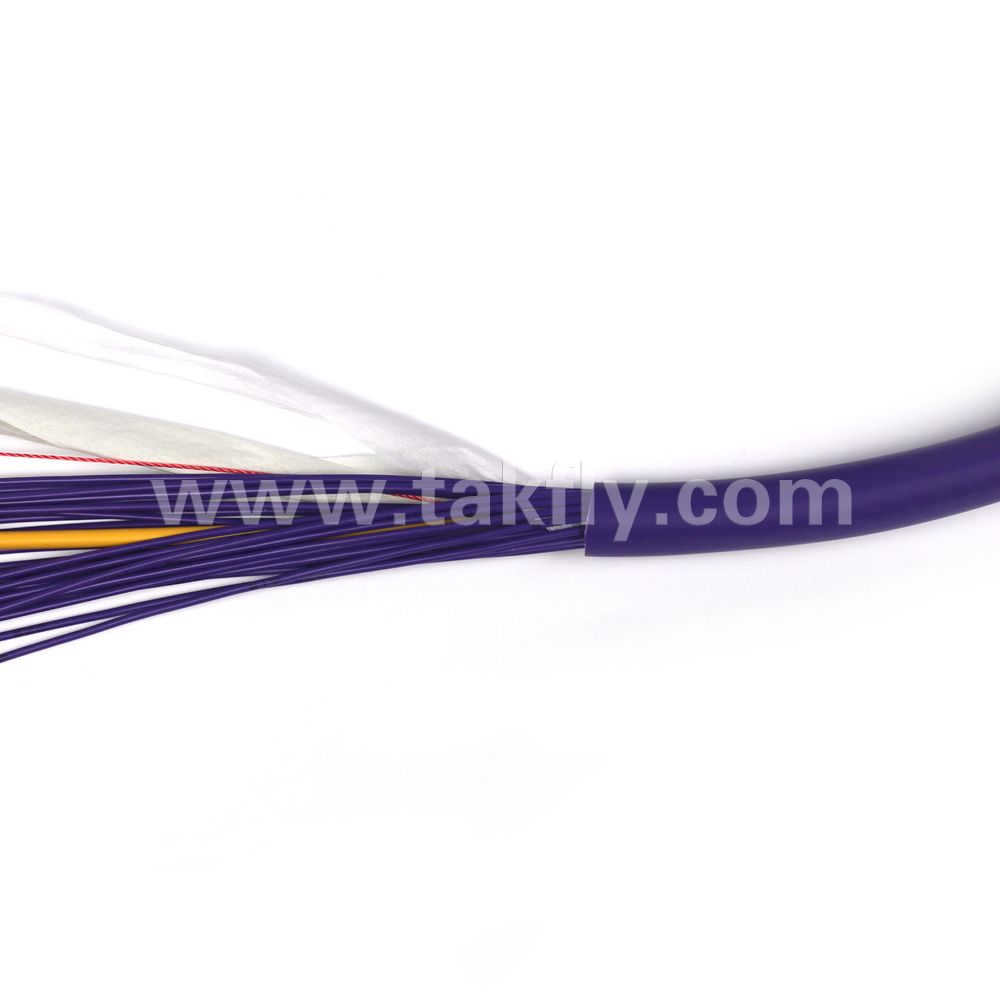

OM4 fiber cable use 900um flame-retardant tight buffer fiber as optical communication medium, the tight buffer fiber wrapped with a layer of aramid yarn as strength member units, such unit is extruded with a layer of PVC or LSZH material as inner jacket . The cable is completed with a figure 8 PVC or LSZH jacket.

Om4 Fiber Optic Cable Standards
Comply with standard GR-409, IEC 60794-2-10/11, meet the requirements of UL approval for OFNR .ORNP.

Om4 Fiber Optic Cable Characteristics
1 Tight buffer fiber ease of stripping
2Excellent flame-retardant performance
3Figure 8 structure facilitate embranchment
4Aramid yarn as strength member make cable have excellent tensile strength
5Adopt strict process and raw materials control to guarantee the lifespan of 15 years
6 The jacket anti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment
7 All dielectric structure protect it from electromagnetic influence

Om4 Fiber Optic Cable Specification

Fiber Type	G652D,G655,G657,OM1,OM2,OM3,OM4
Coating Material	PVC, OFNR,OFNP,LSZH,LSOH
OD Optional(mm)	1.63.3, 1.83.7,2.04.1,2.85.7
Max Tensile Strength(N)	Long term 100/ Short term 200
Min Bending Radius(mm)	Dynamic 20D/Static 10D (except G657)
Temperature range	PVC: -20°C ~+90°C ;LSZH:-20°C ~+70°C

Why choose us

Any question about Om4 Fiber Optic Cable,pls leave me an inquiry or contact me directly.

Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

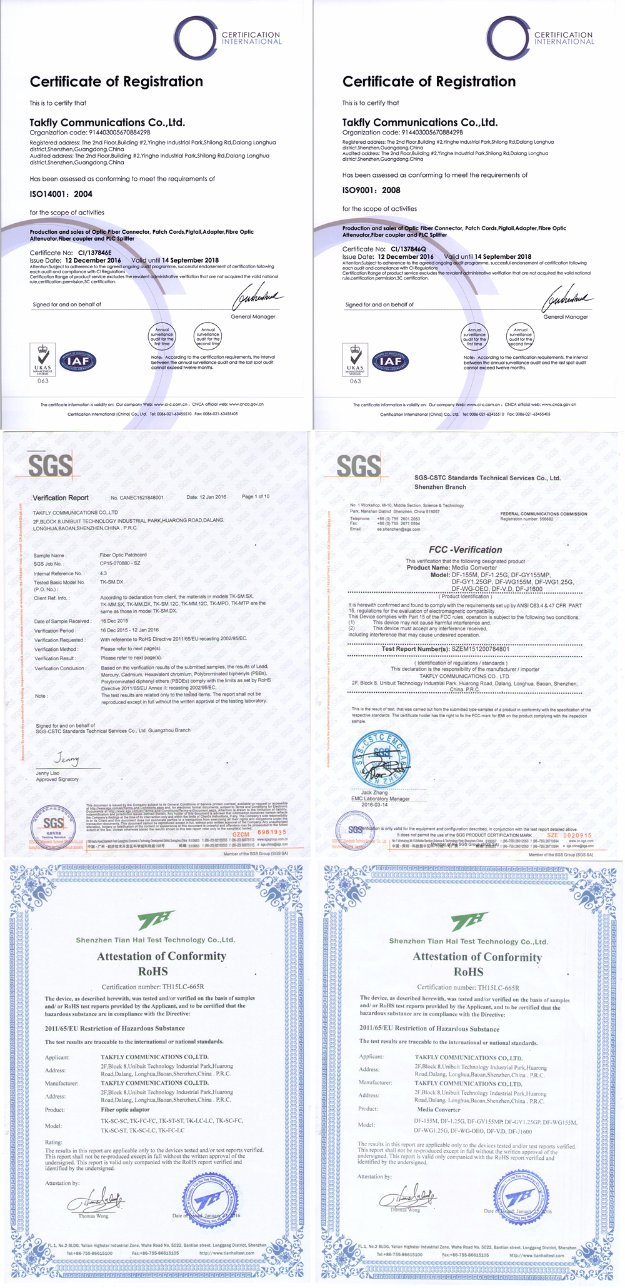

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

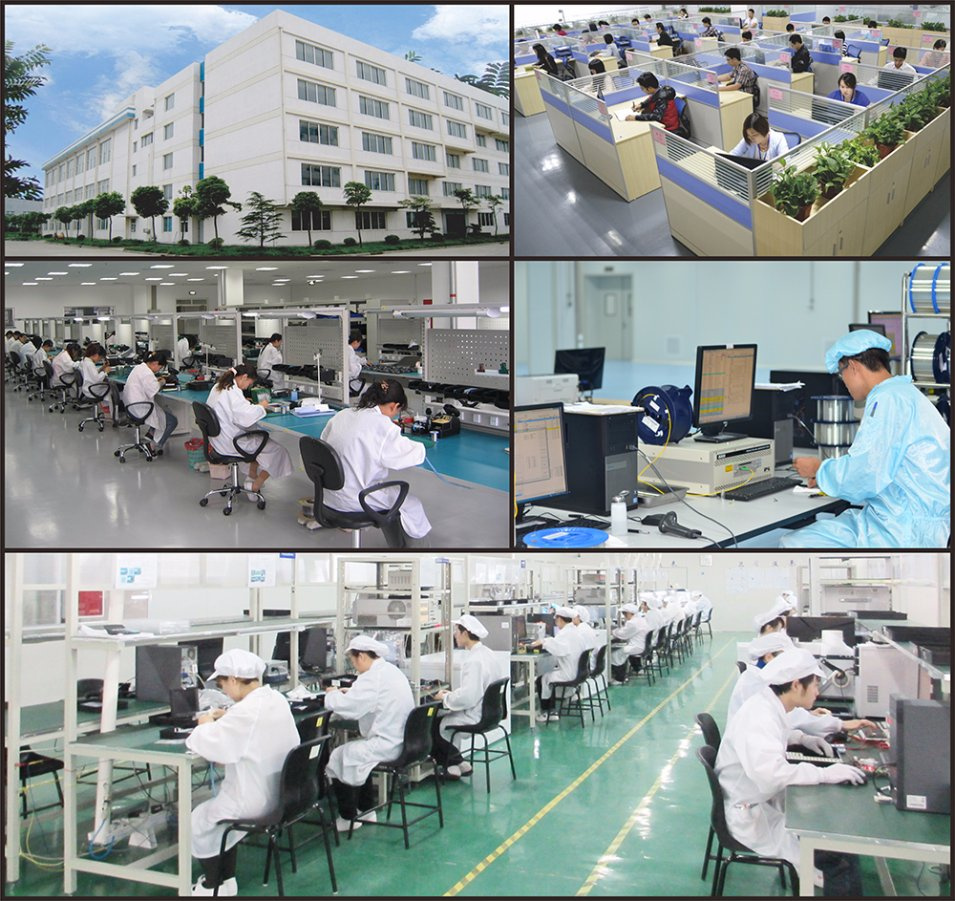

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
