Nanjing KJT Electric Co., LTD >> Customized Inductive Proximity Sensor with Good Quality

Customized Inductive Proximity Sensor with Good Quality

Customized Inductive Proximity Sensor with Good Quality
Price: US $ 5.2-8.9/Piece
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: Kjt-Y8s
Material: ABS/PC
Protection Degree: IP 67
Standard: Standard
Certification: CE
Type: Inductive Proximity Switch
Principle: Inductive
Wires: NPN/PNP 3wire
Application: Position Sensor, Speed Sensor

Product Description

KJT-Y8S  Inductive Proximity Sensor

Detailed Product Description :



   MountingFlush
   SN2.5mm
   Power supply10…30VDC
   Housing size7.4*8*23mm
   Thread size7.4*8*23mm

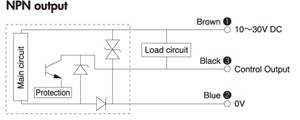

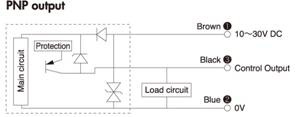

   OutputNPN/PNP  NO/NC
   Temperature drift ≤±10%
   Hysteresis1--20%
   Repeat accuracy≤3%
   Load current≤100mA
   Residual voltage≤2.5V
   Consumption current≤10mA
   Protection circuitsurge,     reverse polarity

   IndicatorYellow LED
   Ambient temp.-25--70ºC
   Ambient RH35--95%
   Frequency300 Hz
   Protection degreeIP67
   Housing materialPBT
   ConnectionPVC Cable 2m




Nanjing KJT Electric Co., Ltd. is a professional manufacturer in the field of sensors and industrial switches, Our high-tech products are widely used in the industrial mechanical equipment and automatic assembly lines for transportation, plastic, metallurgy, chemistry, textile, tobacco, food, printing and so on, with properties of location check, signal transmission, automatic counting and velocimetry.

Including automation and instrumentation division. Owning an outstanding R&D team who focus on core technique and devote themselves to development and innovation, we provide our esteemed customers with All-In-One solutions. We believe that the only way to offer the best industrial control system for customers is to be a total solution provider. Through our enterprise concept, we can make our customers reduce the cost of operation, enhance the efficiency of work, and increase the quality and plus the extra value of products. There are over 8, 000 customers in all industries worldwide. Our qualified products can successfully be used in worse environment with long life-time.
