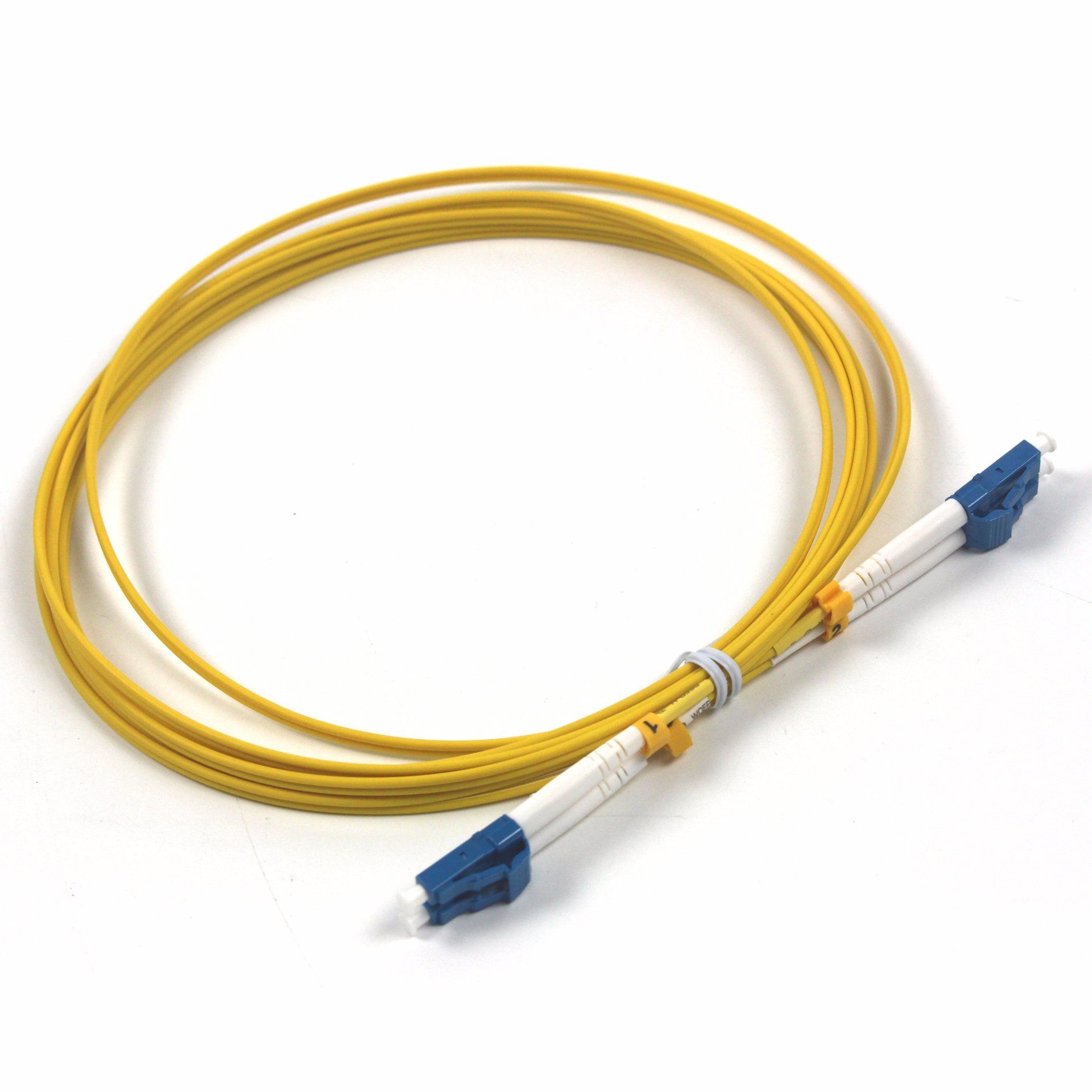

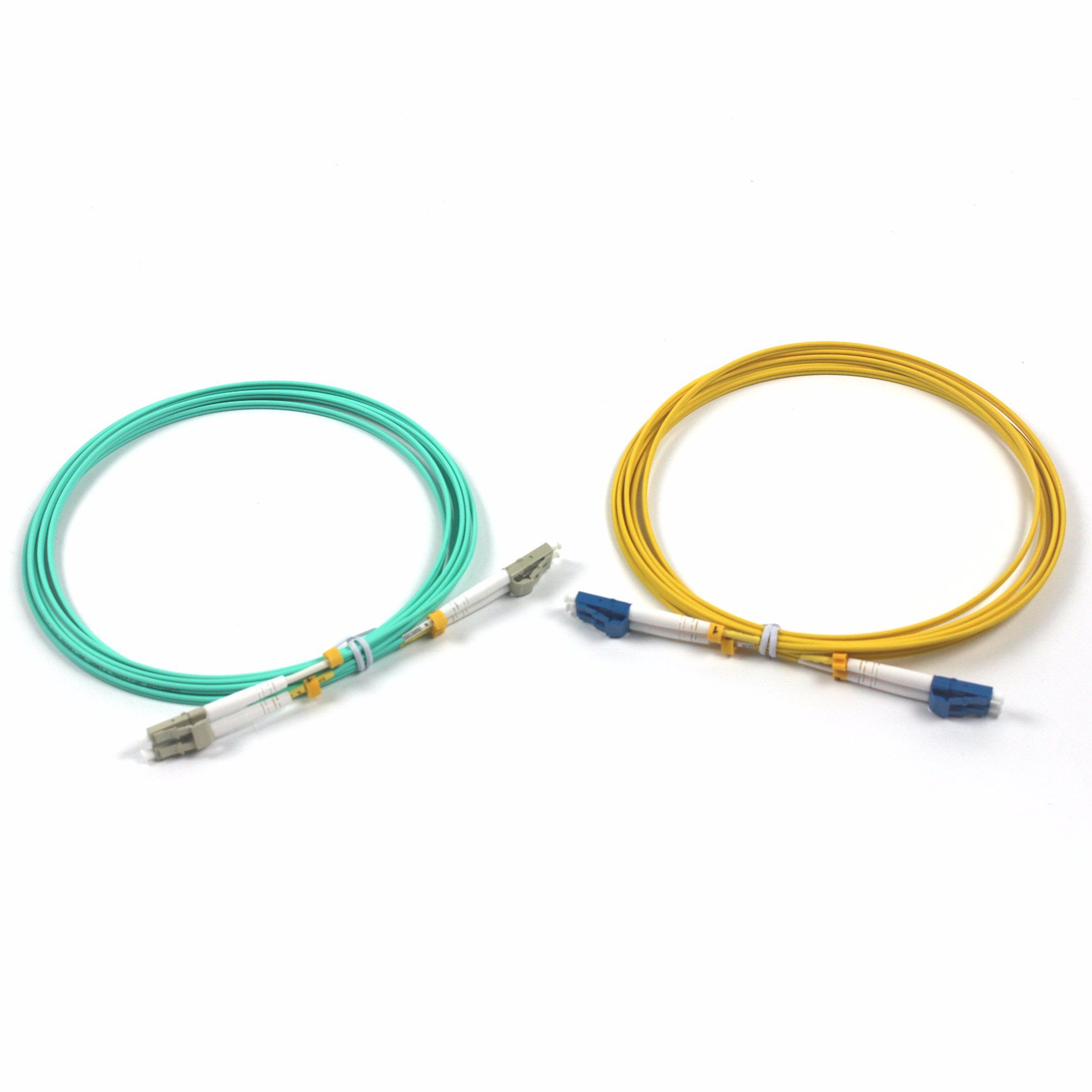

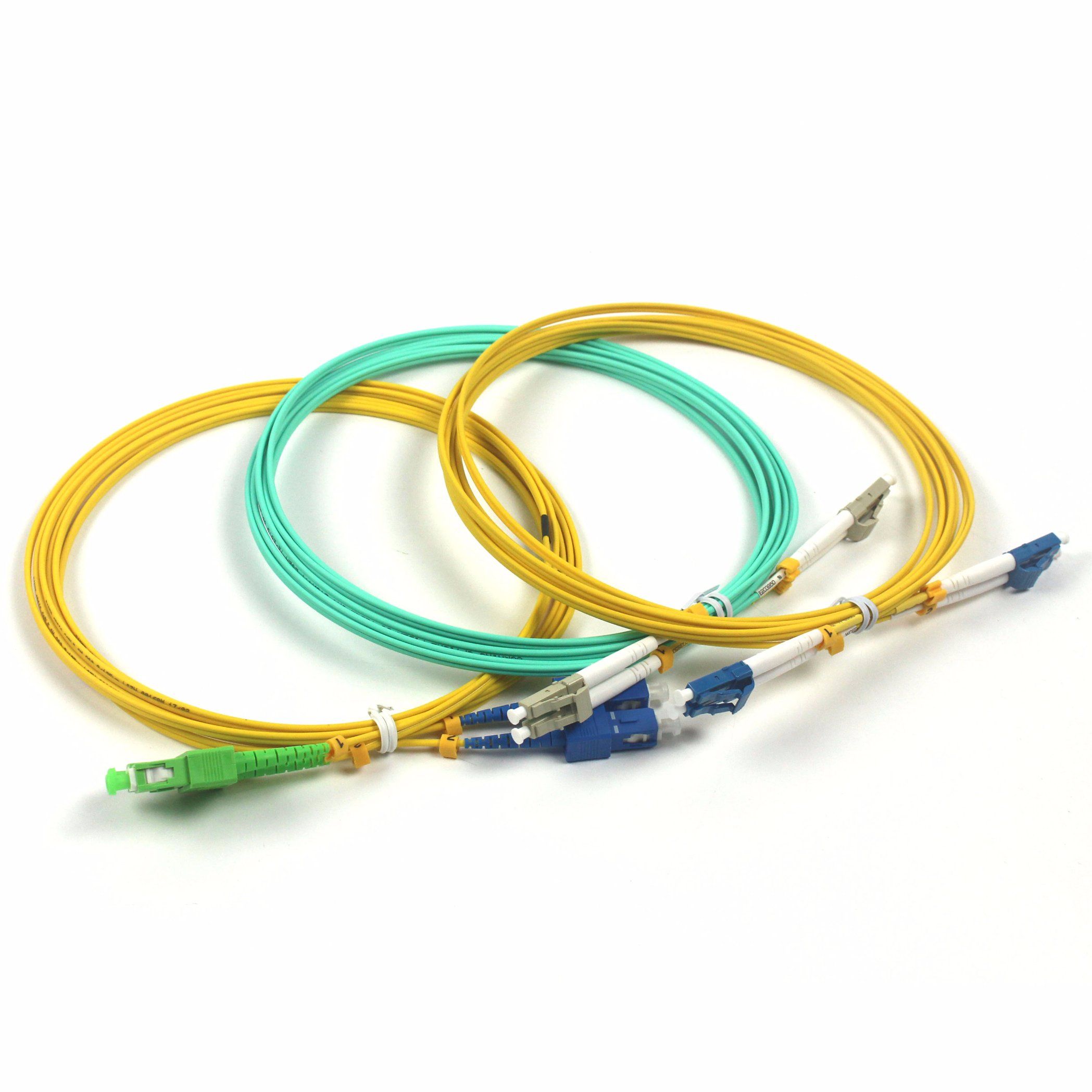

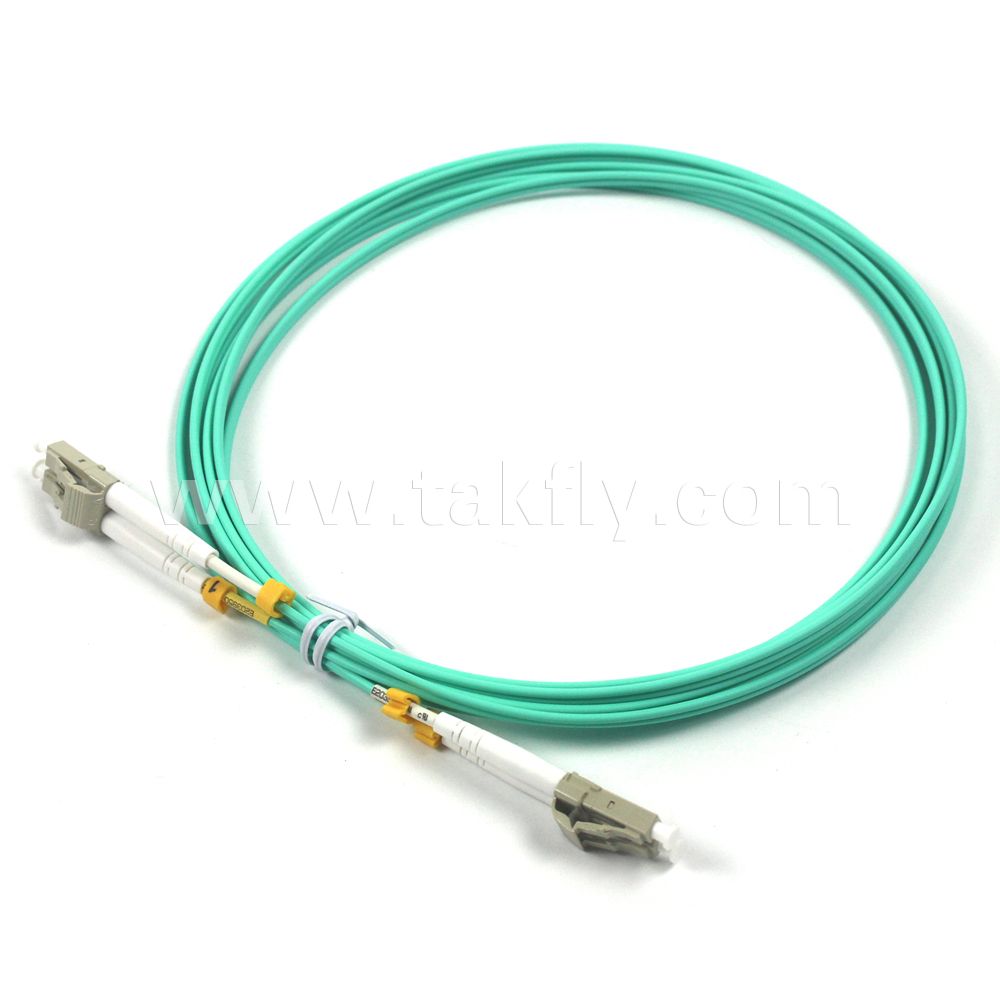

Customized LC Upc Om4 Corning Duplex Fiber Optic Patchcord
| Price: |
US $ 0.1-5/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
OM4 patch cord |
| Item Name: |
Om4 Corning Fiber Patch Cord |
| Keywords: |
Om4,Fiber Patch Cord,Fiber Jumper |
| Connector: |
LC/PC |
| Core Type: |
Duplex |
| Insert Loss: |
<0.3 dB |
| Jacket Material: |
PVC or LSZH |
| Customized: |
Availble |
| Application: |
Probe |
| Type: |
Multi-mode Fiber |
| Connection Structure: |
LC |
| Certification: |
CCC |
Product Description
Customized LC Upc Om4 Corning Duplex Fiber Optic PatchcordOm4 Fiber patch cord is one of the most popular type used for telecommunication networks, cable networks and computer networks etc.The main specific including SM/MM, SX/DX, PC/APC etc.
Features:
1.LC Simplex or Duplex
2.ANSI, IEC , TIA/EIA , NTT and JIS standard compatible
3.UL-rated plastic housing and boot in a variety of colors with 0.9mm, 2.0mm or 3.0mm
4.Precision mechanical dimensions
5.Zirconia ferrule PC or APC diameter125~128 um high concentricity
6.Single mode, Multimode and Angle PCMulti-piece type or one-piece type is available
7.All parts compliant with ROHSSM corning fiber patch cord
Patchcord Application:1.Telecommunication
2.CATVLAN & WAN
3.NetworkBroadband
4.FTTH
Parameter:| Item | Mode Type | PC | SPC | UPC | APC |
| Insertion Loss | SM | ≤0.25dB | ≤0.20dB | ≤0.20dB | ≤0.15dB |
| MM | ≤0.30dB | ≤0.20dB | ≤0.20dB | ≤0.30dB |
| Return Loss | SM | ≥45dB | ≥50dB | ≥55dB | ≥65dB |
| MM | ≥35dB | ≥35dB | ≥35dB | ≥35dB |
| Repetition Test | Additional Loss≤0.1dB,Reture Loss Variability<5dB |
| Temperature Stability(-40ºC~85ºC) | Additional Loss≤0.2dB,Reture Loss Variability<5dB |
| Operating Temperature | -40ºC~+75ºC |
| Storage Temperature | -40ºC~+75ºC |
OM4 Patchcord Order Information:| CODE | CONNECTOR | CABLE SIZE | FIBER TYPE | CABLE TYPE | FIGURE |
| H01 | 1.SM Simplex
2.MM Simplex
3.APC Simplex
4.SM Duplex
5.MM Duplex
6.APC Duplex | 1. 0.9
2. 2.0
3. 3.0
| 1.9/125
2.OM3
3.50/125
4.62.5/125 | 1.Yellow PVC
2.Orange PVC
3.White PVC
4.Yellow LSZH
5.Orange LSZH
6.White LSZH | 1.Blue
2.Beige
3. Green
4.Black
5.Blue and Yellow
6.Red and Black
|
Package and shipping:
About package: Carton case and common exporting packages
About Shipping: A. Shipping time is depends on quantity and factory schedule
B. About Shipping ways:By air,sea and courier(DHL,Fedex,Ups,TnT or EMS)
About Payment:Usually paypal for sample,T/T,Western Union is available
Why choose Takfly?1.High efficiency,with more than 3000 square meters size & 150+ professional workers can finish your order within a week
2.Quality assurance,we are a factory strictly operating ISO 9001:2008 quality control system,twice check before delivery
3.Competitve price.As a factory,costs are controllable
4.Flexible payment term.T/T,L/C,paypal is availble
5.Professional,Our workers are at least 3 years experience in fiber optic fields,besides,we cooperated with Electroson,Telefonica,etc
6.Complete product range, products cover fiber optic cable,Fiber optic adapter,attenuators,full total FTTH solution.

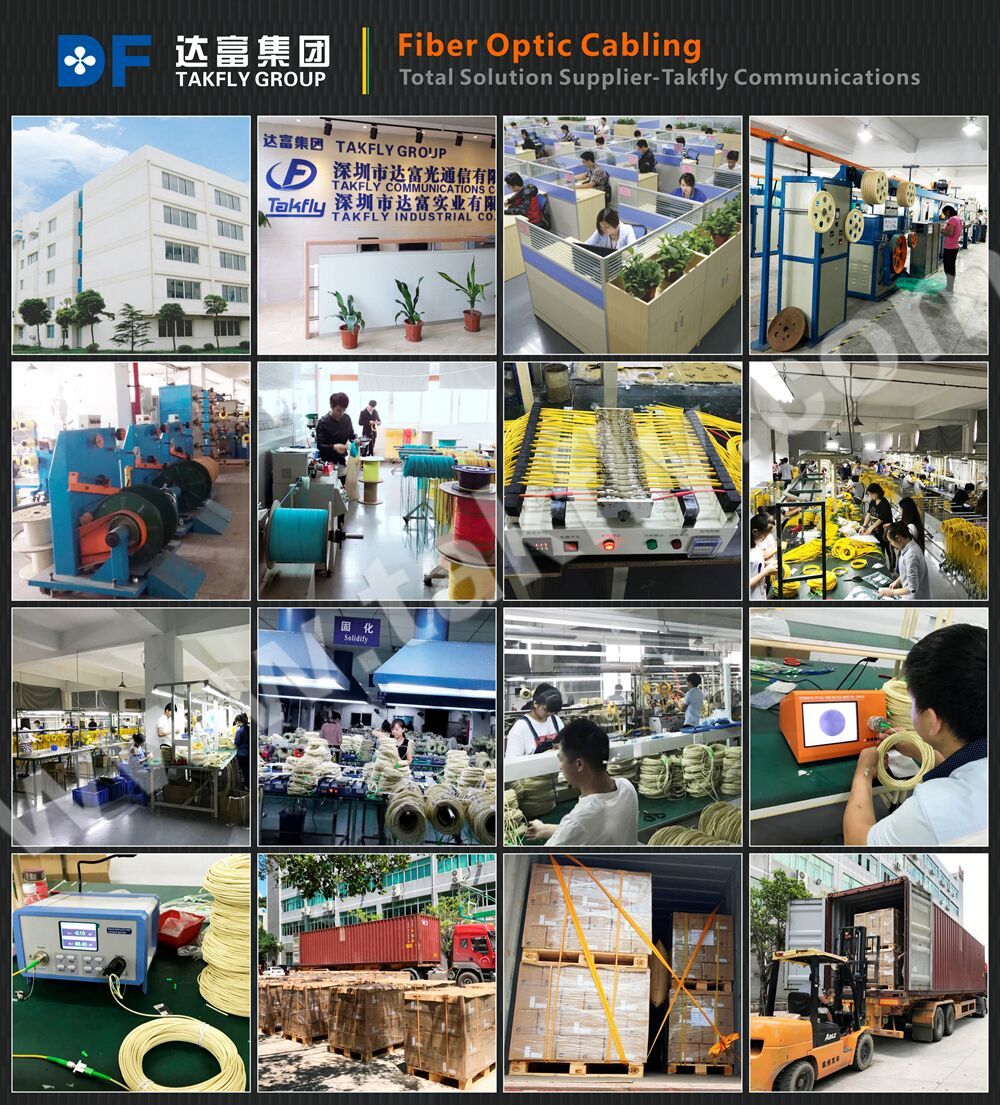

Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.
TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
