Customized Length Optical Fiber Duplex Sm Sc/APC 2.0/3.0mm Patch-Cord
| Price: |
US $ 1-5/Piece |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
Fiber optic patch cord |
| Name: |
Optic Fiber Patch-Cord |
| Fiber Type: |
Singmode |
| Brand Or Logo: |
Customized |
| Cable Length: |
2m, 3m, 5m, or Upon Request |
| Warranty: |
1year to 3 Years |
| Delivery Time: |
Within 2 to 3 Days |
| Connector Type: |
Sc |
| Polishing Type: |
APC |
| Cable Diameter: |
2.0/3.0mm |
| Insertion Loss: |
0.2dB |
| Application: |
Probe |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
CCC |
Product Description

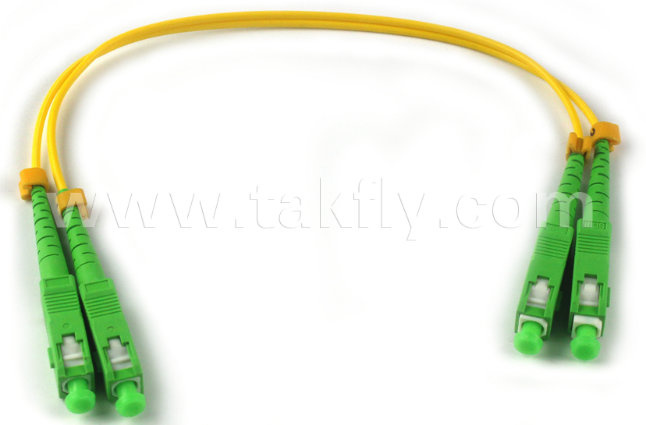

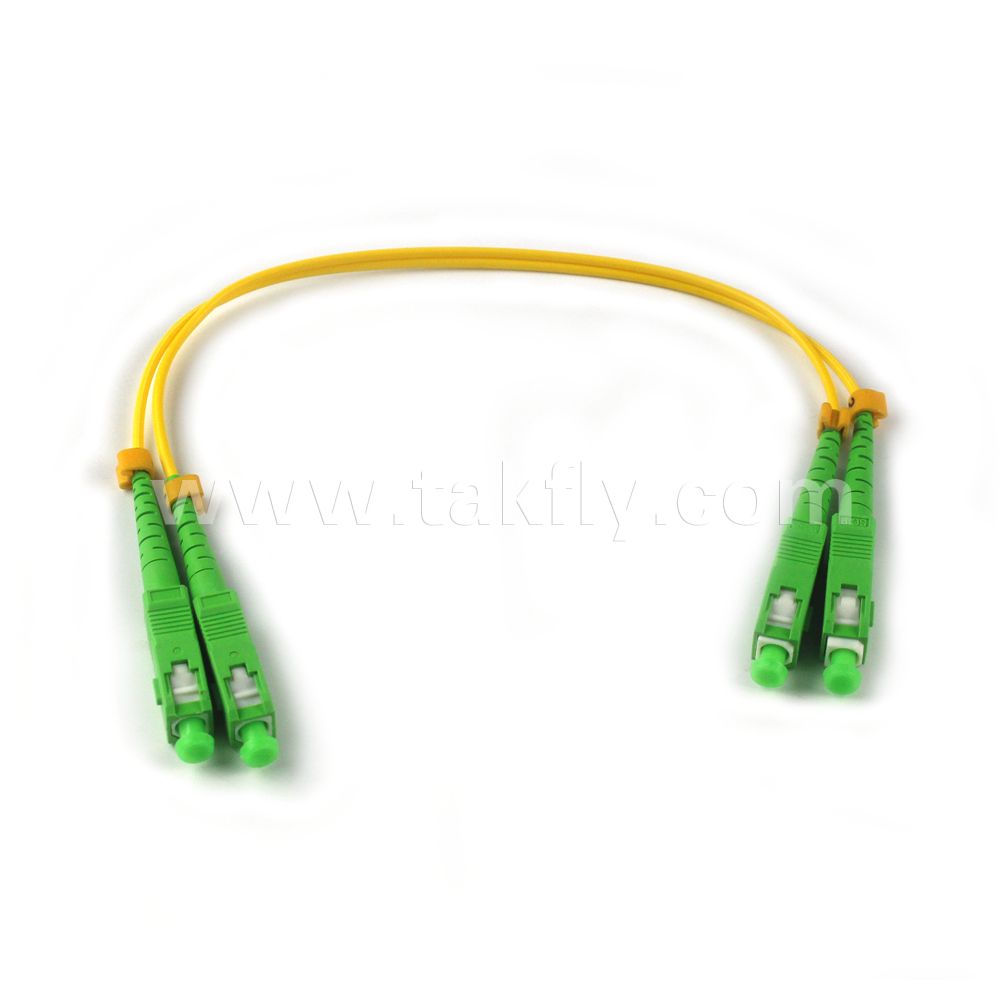

Customized length Optical Fiber Duplex Sm Sc/APC 2.0/3.0mm Patch-CordFiber patch cord is one of the most popular type used for telecommunication networks, cable networks and computer networks etc.The main specific including SM/MM, SX/DX, PC/APC etc.
Features: - SC Duplex Patch Cord
- ANSI, IEC, TIA/EIA, NTT and JIS standard compatible
- UL-rated plastic housing and boot in a variety of colors with 0.9mm, 2.0mm or 3.0mm
- Precision mechanical dimensions
- Zirconia ferrule PC or APC diameter125~128 um high concentricity
- Single mode, Multimode and Angle PC
- Multi-piece type or one-piece type is available
- All parts compliant with ROHS
Spec
| Item | Mode Type | PC | SPC | UPC | APC |
| Insertion Loss | SM | ≤0.25dB | ≤0.20dB | ≤0.20dB | ≤0.15dB |
| MM | ≤0.30dB | ≤0.20dB | ≤0.20dB | ≤0.30dB |
| Return Loss | SM | ≥45dB | ≥50dB | ≥55dB | ≥65dB |
| MM | ≥35dB | ≥35dB | ≥35dB | ≥35dB |
| Repetition Test | Additional Loss≤0.1dB, Reture Loss Variability<5dB |
| Temperature Stability(-40ºC~85ºC) | Additional Loss≤0.2dB, Reture Loss Variability<5dB |
| Operating Temperature | -40ºC~+75ºC |
| Storage Temperature | -40ºC~+75ºC |
Delivery Time: 2-5days after received the paymentOther Patch Cord For Choosing
Order Information: | CODE | CONNECTOR | CABLE SIZE | FIBER TYPE | CABLE TYPE | FIGURE |
| H01 | 1. SM Simplex
2. MM Simplex
3. APC Simplex
4. SM Duplex
5. MM Duplex
6. APC Duplex | 1.0. 9
2.2. 0
3.3. 0 | 1.9/125
2. OM3
3.50/125
4.62.5/125 | 1. Yellow PVC
2. Orange PVC
3. White PVC
4. Yellow LSZH
5. Orange LSZH
6. White LSZH | 1. Blue
2. Beige
3. Green
4. Black
5. Blue and Yellow
6. Red and Black |

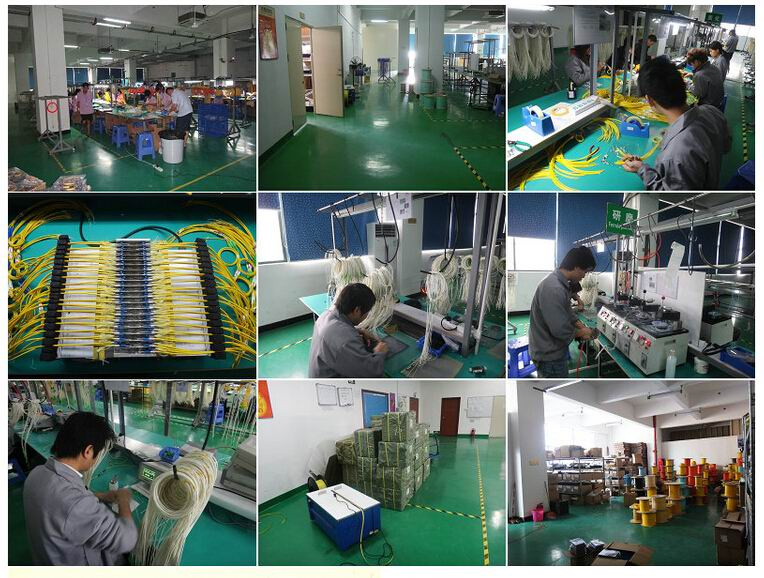

Factory
What service we can offer for you??1. Fiber optic patch cord, pigtail, armoured patch cord, armoured pigtail
2. Fiber optic connector and adapter, hybrid adapter, bare fiber adapter
3. Optic splice closure, dome closure, horizontal splice closure, splitter closure, drop wire clamp, drop wire closure
4. FTTH splitter distribution 12cores, 16cores, 24cores, 32 cores, 48cores
5. Fiber optic splitter, fiber optic coulper PLC splitter
6. Fiber cabinet, fiber patch panel, ODF, wall mount, rack mount ODF
7. ADSS cable accessoriesAny interests about this patch cord,pls leave me an inquiry or contact me directly.
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.
TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
