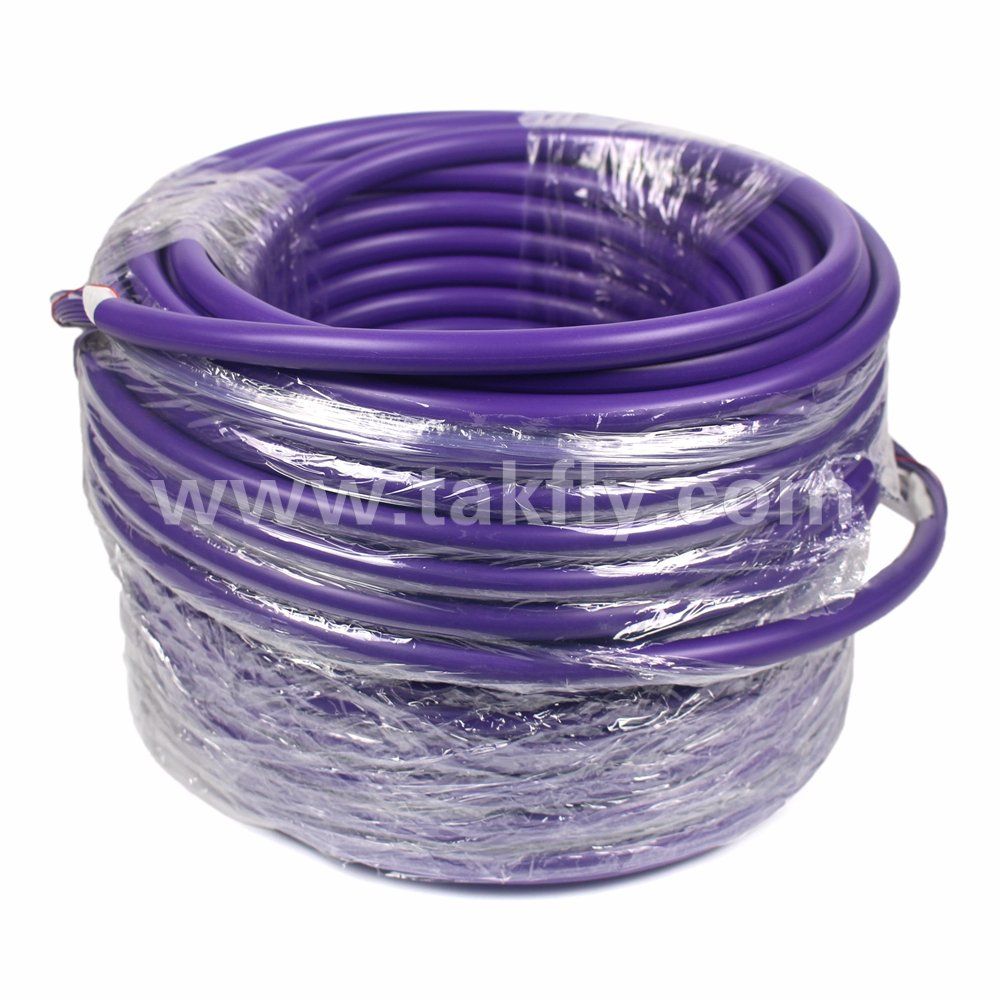

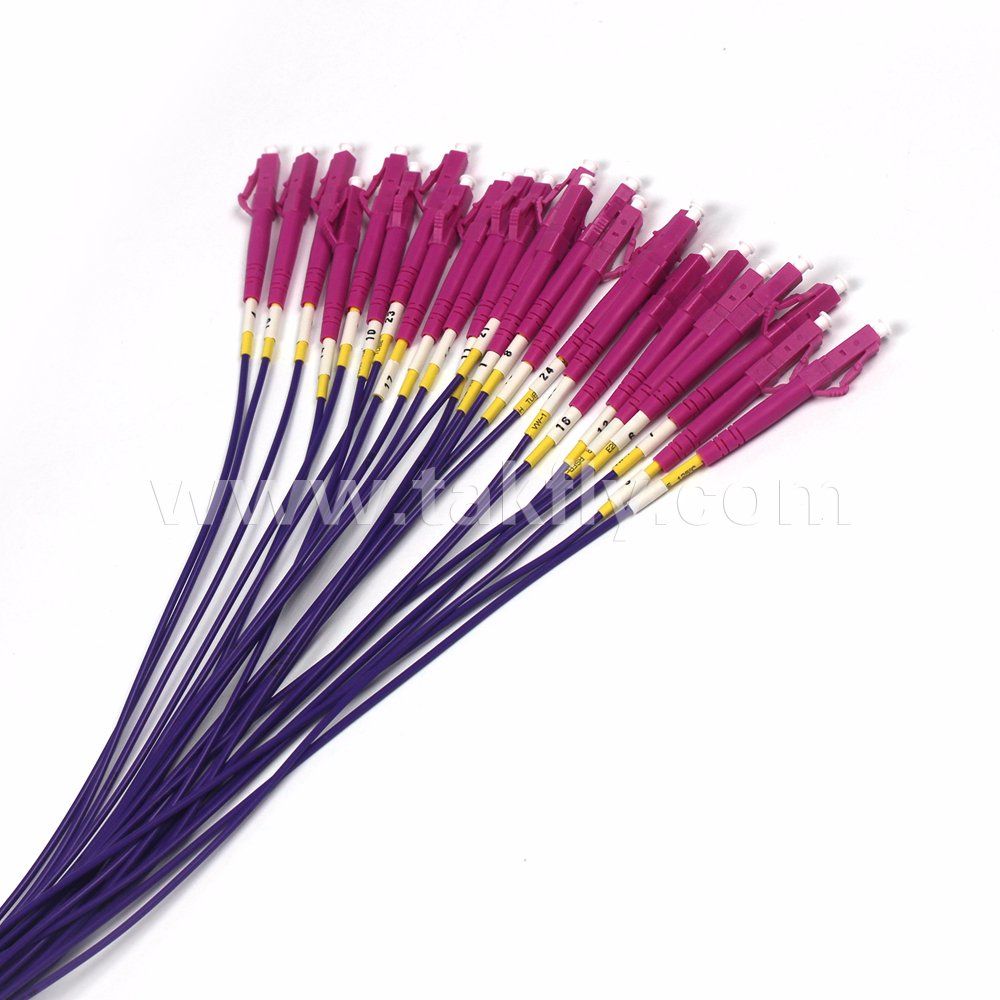

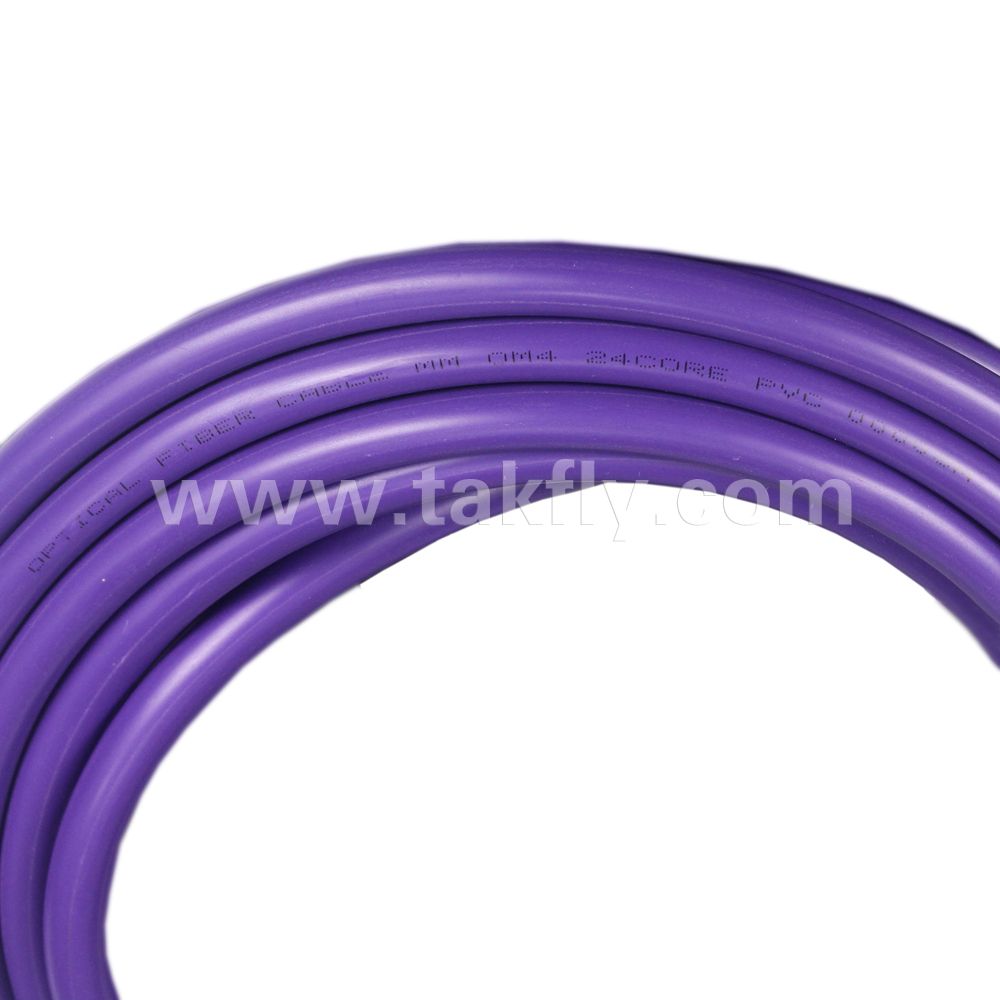

Customized LSZH Om4 12/24 Fiber Optical Distribution Cable
| Price: |
US $ 0.1-10/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Prod Model: |
Om4 fiber cable |
| Item Name: |
Om4 Fiber Optic Cable |
| Manufacturer Type: |
Factory |
| Keywords: |
Om4,Fiber Optic Cable,Optic Fiber |
| Fiber Core: |
Customized |
| Jacket Material: |
PVC or LSZH |
| Length: |
Customized |
| Print: |
Customized |
| Application: |
Probe |
| Type: |
Multi-mode Fiber |
| Connection Structure: |
LC |
| Certification: |
VDE |
Product Description

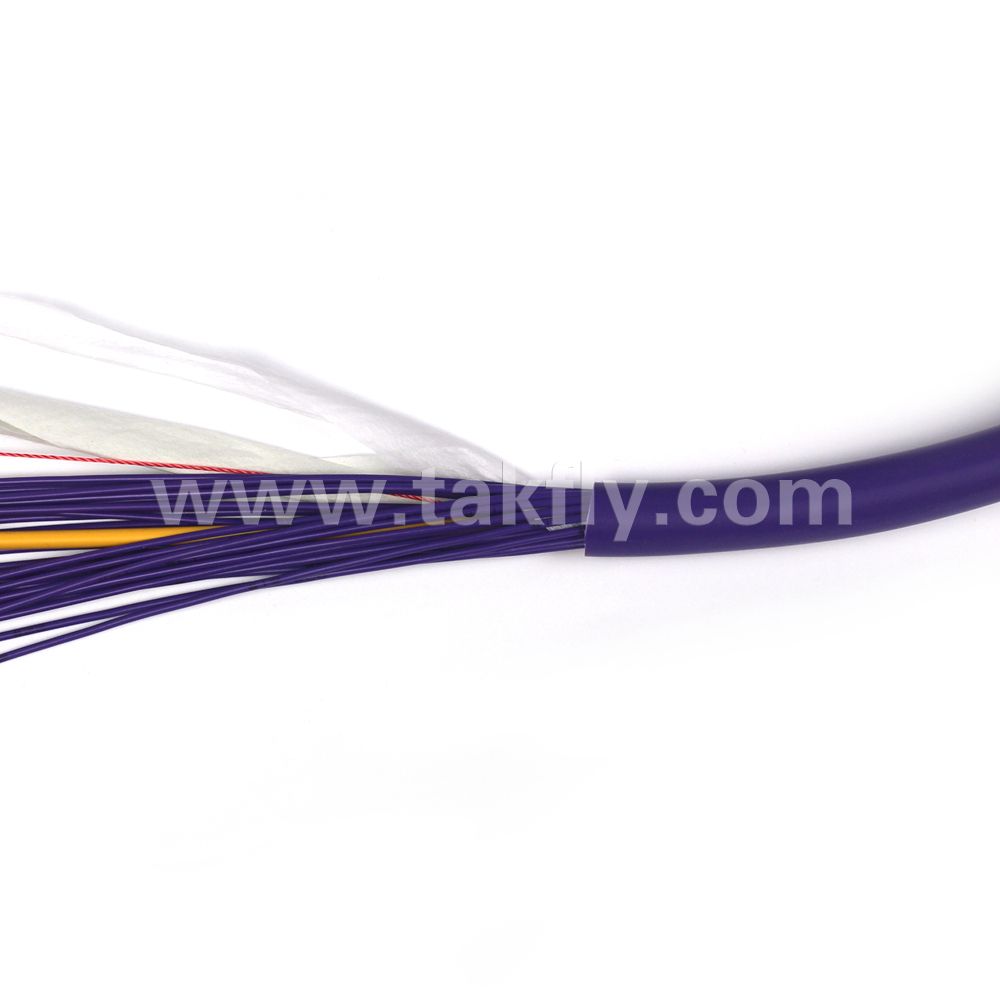

Customized LSZH Om4 12/24 Fiber Optical Distribution Cable OM4 fiber cable use 900um flame-retardant tight buffer fiber as optical communication medium, the tight buffer fiber wrapped with a layer of aramid yarn as strength member units, such unit is extruded with a layer of PVC or LSZH material as inner jacket . The cable is completed with a figure 8 PVC or LSZH jacket.
Standards
Comply with standard GR-409, IEC 60794-2-10/11, meet the requirements of UL approval for OFNR .ORNP.
Cable Characteristics
1 Tight buffer fiber ease of stripping
2Excellent flame-retardant performance
3Figure 8 structure facilitate embranchment
4Aramid yarn as strength member make cable have excellent tensile strength
5Adopt strict process and raw materials control to guarantee the lifespan of 15 years
6 The jacket anti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment
7 All dielectric structure protect it from electromagnetic influence
Specification| Fiber Type | G652D,G655,G657,OM1,OM2,OM3,OM4 |
| Coating Material | PVC, OFNR,OFNP,LSZH,LSOH |
| OD Optional(mm) | 1.6*3.3, 1.8*3.7,2.0*4.1,2.8*5.7 |
| Max Tensile Strength(N) | Long term 100/ Short term 200 |
| Min Bending Radius(mm) | Dynamic 20D/Static 10D (except G657) |
| Temperature range | PVC: -20°C ~+90°C ;LSZH:-20°C ~+70°C |
Why choose us
1.Order inquiry: Keep working time from 8 AM to 23 PM to gurantee the first reply
to clients,and 24 hours no Cellphone power off
2.Order production: Keep very close touch with production department to gurantee the right delivery time toclients
3.Before shipment: Our sales would double check the order quantity,package and strength of cartons to
avoid lost and damage
4.After shipment: Keep tracking shipping status and reporting to clients
5.Shipment: DHL,UPS,FEDEX,TNT,EMS,SEA,AIR
Any question about Om4 fiber optic cable,pls leave me an inquiry or contact me directly.
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

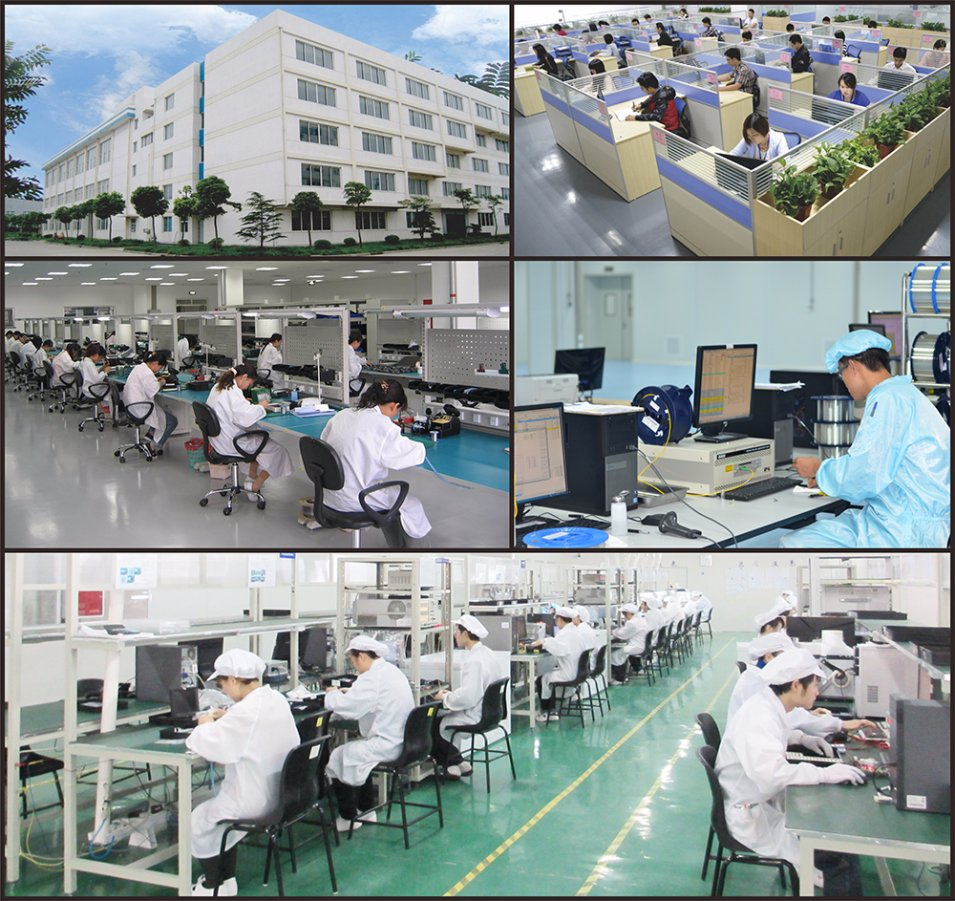

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
