| Prod Model: |
KJT-WJ12 |
| Material: |
Nickel-Copper Alloy |
| Protection Degree: |
IP 67 |
| Standard: |
Standard |
| Certification: |
CE |
| Application: |
Anlog |
| Wires: |
NPN/PNP 3 Wire, Two Wire |
| Type: |
Anlog Sensor |
| Principle: |
Anlog |
Product Description

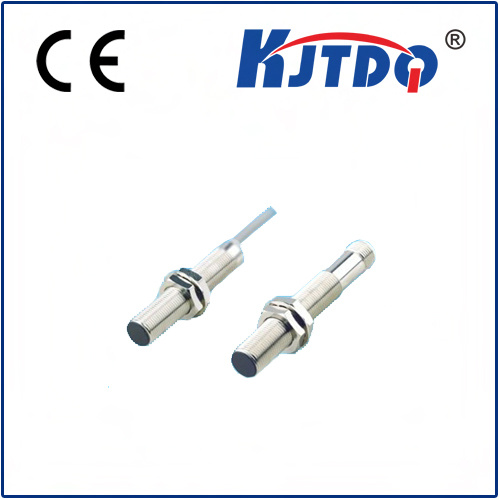

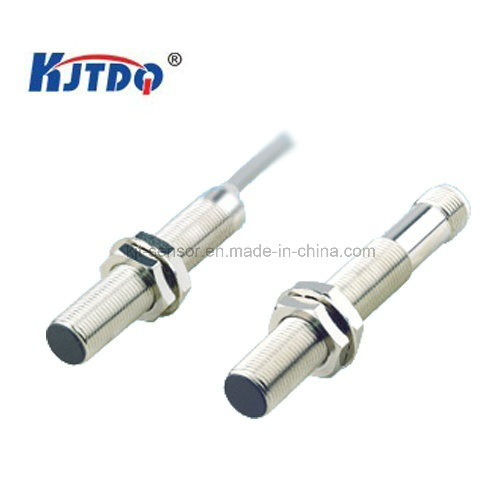

KJT-WJ12 Analog sensor/ inductive proximity switch Detailed Product Description
Features:
1) Multiplicity appearance
2) Compact volume
3) High repeat orientation precision
4) Many output form
5) Strong protection distribution
6) Wide voltage range
7) Dustproof, vibration-proof, waterproof and oil-proof
8) With short-circuit protection and inverted connecting protection
9) Service life up to one million
10) Adopts envelop glue, temperature resist, oil-proof colophony in it
Detail:
| Mounting | F NF | | SN[mm] | 0.4…2mm 0.8…4mm | | Housing size | M12*61 M12*65 | | Thread size | M12*1*53 | | Output | 0…10V | | Power supply | 15…30V DC | | Load current | >=4.7KΩ(voltage output)≤470Ω(current output) | | Temperature drift | ≤±10% | | Linearity accuracy | ≤±5% | | Repeat accuracy | ≤±3% | | Consumption current | ≤20mA | | Protection circuit | Surge and reverse polarity protection | | Indicator | Yellow LED | | Ambient temp. | -25…70ºC | | Ambient RH | 35-95% | | Frequency | 200Hz 100Hz | | Protection degree | IP67 | | Housing material | Nickel plated brass | | Connection | PVC 2m Cable/M12 connector |
|
:
Does KJT keeps goods in stock or only trading ?A: We have large warehouse for goods. Keep lots of goods in warehouse, so could promise fast delivery. Q: What's your shipment method?A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method. Q: What's about MOQ?A: First order MOQ=5 pcs (different type sensor has different MOQ) Q: If i want to release order, what's the payment method you accept ?A: We accept T/T, Paypal, Western union, L/C. Q: If i want to release order, what's the process?A: Thanks. You can send inquiry to us or send us by email, we will reply within 12 hrs. Q: Could KJT provide technology support?A: We're in this field more than 10 years. If there's any problem, please contact with us,we'll provide suggestion from our engineer to help you solve problem. Q:When you use KJT's photoelectric sensor and inductive proximity sensor, the following subject should be noticed: A: Ensure the working voltage is 10-30 V DC or 90-250 AC.Required the sensing distance and the material of detecting objects.For photoelectric sensor ensure it is available through beam and reflection.Ensure it is NPN or PNP output.Q: How can i get a sample ?A: If you need one sample for checking-up,we will provide one free sample for one type sensor(same data sheet) for you, .but we do not carry the freight charge.If we have no this type sample in stock,we could produce it for you.
Nanjing KJT Electric Co., Ltd. is a professional manufacturer in the field of sensors and industrial switches, Our high-tech products are widely used in the industrial mechanical equipment and automatic assembly lines for transportation, plastic, metallurgy, chemistry, textile, tobacco, food, printing and so on, with properties of location check, signal transmission, automatic counting and velocimetry.
Including automation and instrumentation division. Owning an outstanding R&D team who focus on core technique and devote themselves to development and innovation, we provide our esteemed customers with All-In-One solutions. We believe that the only way to offer the best industrial control system for customers is to be a total solution provider. Through our enterprise concept, we can make our customers reduce the cost of operation, enhance the efficiency of work, and increase the quality and plus the extra value of products. There are over 8, 000 customers in all industries worldwide. Our qualified products can successfully be used in worse environment with long life-time.
