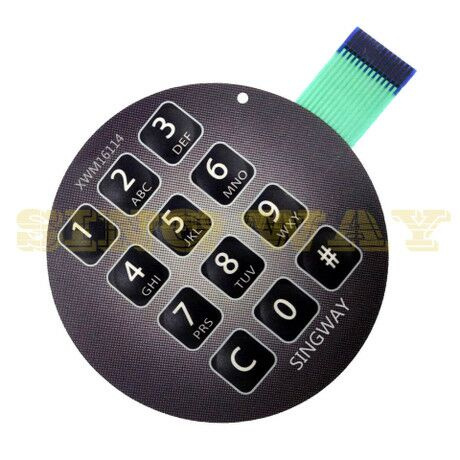

| Prod Model: |
Xwm16115 |
| Type: |
Flat |
| Material: |
PET |
| Application: |
Telecommunication Equipment |
| Brand: |
OEM |
Product Description
1.Quick Details
| Place of Origin | Guangdong,China(Mainland) | Brand Name | SingWay |
| Model Number | Custom | Application | Home Appliance |
Keypad Button Material | PET | Type | Flexible |
| Certification | SGS/ISO9001 | Membrane switch | OEM Membrane Switch |
2.Packaging & Delivery
Packaging Details
Carton
Standard export package
Delivery Time
According to the order
Product Description
Dongguan Singway Electronic Technology Co.,Ltd(Singway Touch) was established in September,2011, is a professional design, production and sales of touch screens and membrance switches and other technology produucts professional company. We mainly for industrial control, car navigation, household appliances, medical equipment and other production and processing of high-quality touch screens and membrane switches.
3.Product Description
We are the professional of manufactory and export Touch Screen,Touch Panel,Membrane Switch,Rubber Matte and Flexible Printed Board and some relative electronic products,we have profuse design with your drawings or requirements,if you are interested in any products of our catalogues please do not hesitate to email us.We are promise that the quality is good and the price is favourable.
| LAYER CONSTRUCTION AND MATERIALS |
| MATERIAL | THK(mm) | |
| EBG180 | 0.18mm | OVERLAY |
| 3M9448A | 0.15mm | OVERLAY SPACER |
| PET | 0.075mm | DOME RETAINING |
| 3M9448A | 0.15mm | CIRCUIT SPACER |
| PET | 0.125mm | LOWER CIRCUIT |
| 3M468 | 0.13mm | REAR ADHENSIVER |
| SILVER PASTE | CI1001 OR EQUAL | |
| CARBON PASTE | CI12001 | |
| METAL DOME TYPE:12.2-SDL-280-AU/SS AND 8.4-SDL-280-AU/SS |
| LOOP RESISTANCE<150Ω |
4. Product Feature
| 1.The electronic properties: |
| Circuit rating:35V(DC), 100mA, 1W |
| Contact resist:10Ω~500Ω |
| Insulation resistance:100MΩ 100V |
| Dielectric strength:250VRms(50~60Hz 1min) |
| Contact bounce<=5ms |
| Life:flat type>=5 million times touch type>=1 million times touch type |
| 2.Mechanical properties: |
| Operating pressure:plane 57~284g(2~10oz), touch type 170~397g(6~14oz) |
| Switch travel:plane type 0,1~0.5mm, touch type 0.6~1.5mm |
| 3.Environmental parameters: |
| Operating temperature:-40C~+80C, Storage temperature:-40C~+70C |
| Humidity:40C, 90%~95%,240 hours vibration:20G, max |
Flat and all embossed key type with tactile effect designs of mylar dome and metal dome.
SMT components mounted in the membrane switch.
Choices of window finish and sureface texture.
EMI, RFI, ESD and transparent window shielding available.
Soldering pin and female connector.
Backlight choices of LED, LED panels, EL panels & light guide film.
Combo keypad design-Silicone rubberkey top+ membrane circuit.
Flexible PCB membrane switch: membrane switch +FPC circuit.
