Customized New Power Supply 350W for ATM Machine
| Price: |
US $ 25-35/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
T-350 |
| Input: |
2.8A/115V, 1.6A/230V AC |
| Output: |
DC 5V/12V/24V |
| Output Rated Current: |
5A/12.5A/6.5A |
| Protection: |
Short-Circuit, Over-Load, Over-Voltage |
| Standards: |
UL1012, En55022, Classa, Ce, RoHS |
| Testing: |
100% Test |
| Cooling: |
by Air |
| Weight: |
1.1kg/PCS, 215*115*50mm/PCS |
| Packing: |
20PCS/Carton/22kg |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Certification: |
SGS |
| Output Power: |
350W |
| Input Voltage: |
90-132V AC, 180-264V AC, 255-373VDC |
| Brand: |
Joymell |
Product Description

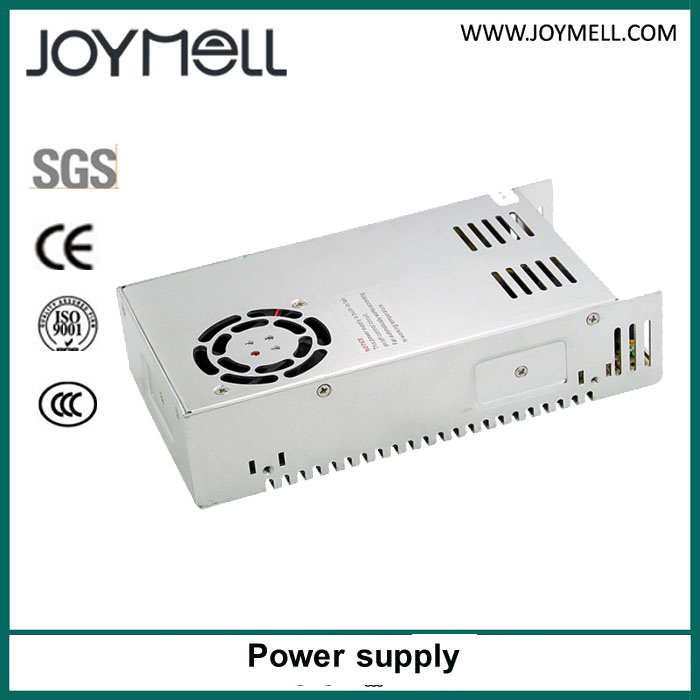

Customized New Power supply 350W for ATM machine
1. Features: *AC input voltage range selected by switch
*Small volumn, low weight, high efficiency
*Protections: Short circuit/Over-load/Over voltage
*Cooling by free air convection
*LED indicator for power on
*100% full load burn-in test

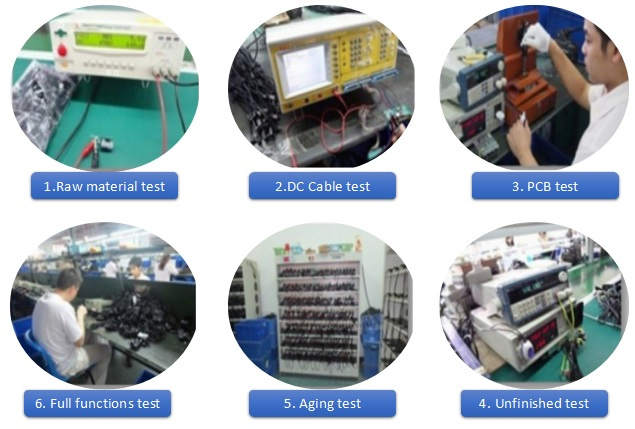

*2 year warranty2. Tests:3. Specification: | | Model | T-350 |
| Output | DC Voltage | CH1: +5V | CH1: +12V | CH1: +24V |
| Voltage tolerance | ±2% | ±6% | ±6% |
| Rated current | 5A | 12.5A | 6.5A |
| Current Range | 0-5A | 0-12.5A | 0-6.5A |
| Rated power | 25W | 150W | 150W |
| Ripple&Noise | 80mVp-p | 120mVp-p | 150mVp-p |
| Ripple &ADJ Range | CH2: -9%~+10% |
| Setup, hold up time | 200ms, 50ms, 30ms/230VAC |
| Input | Voltage Range | 90-132VAC/ 180-264VAC(Selected by switch), 47-63hz, 255-373VDC |
| AC Current | 2.8A/115V, 1.6A/230VAC |
| Efficiency | 80% |
| Inrush current | Cold start 30A/115VAC 60A/230VAC |
| Leakage Current | < 3.5mA/240VAC |
| Protection | Overload | Rated output power 110%~150% start overload protection |
Protection type: Cutoff output, restart power after fault condition is
removed can recover normal output |
| Over voltage | CH1:CH2: 115%-135% |
Protection type: Cutoff output, restart power after fault condition is
removed can recover normal output |
| Environment | Working Temp, Humidity | -10ºC-+60ºC; 20%~90%RH(Pleasure refer to "Derating curve") |
| Storage temp, Humidity | -20ºC-+85ºC; 10%~95%RH,Non-Condensing |
| Withstand Vibration | 10-500hz, 2G 10min/1Cycle, period for 60min, each axes |
| Safety | Withstand voltage | I/P-O/P: 1.5KVAC 1/P-FG:1.5KVAC O/P-FG:0.5KVAC |
| Isolation Resistance | I/P-O/P: I/P-FG, O/P-FG:100M Ohms/500VDC |
| Standard | Safety standard | UL1012 |
| EMC Standard | EN55022, CLASSA |
| Weight | Weight | 1.1kg/pcs, 215*115*50mm/pcs(L*W*H) |

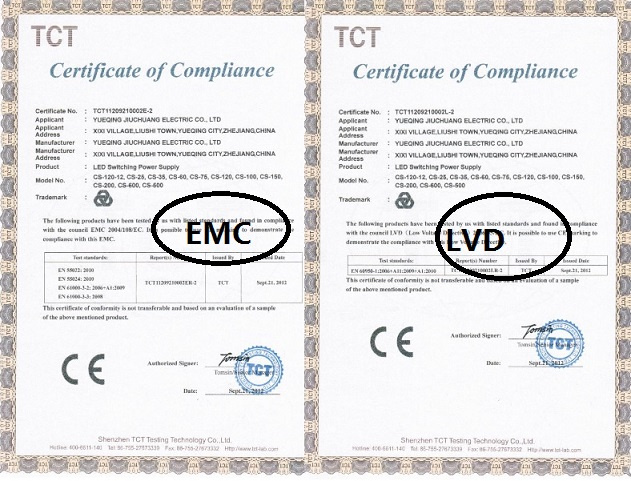

4. Certificate: 5. You can get service:| 1. Prompt reply: Any inquiry or questions would be replied within 24 hours. |
| 2. Quality Product: 100% tested and calibrated. |
| 3. Hospitality: Offer smiling service and your visiting is highly welcomed |
| 4. Fast delivery: Normally 3-7days. |
| Trade Terms | FOB ,CIF ,CNF, EXW |
| Payment terms | T/T,Western union,Paypal |
| Payment conditions | 50% deposit in advance,50% balance before shipping. Small order 100% deposit |
| Delivery time | 3-7working days after deposit,2-4 working days for inventory |
| Packing | Neutral carton. Poly wooden for big orders. |
| Shipping | By sea,by air and by express delivery |
Welcome to contact:
Jancy Han /(Sales)
Manufacturer: Yueqing JoyMell Electric Co.,Ltd
Add: Xinguang industriall zone, Yueqing city, Zhejiang province
Web: WWW.JoyMell.com Linkedin/Facebook/Youtube/Twitter |
Joymell Electric Co., Ltd, with brand Joymell, specialized in Manufaturing and International sourcing service.
Main products including Automatic Transfer switch, Manual transfer switch, Generator Enclosure box, Power supply, Current transformer, Surge protector, Circuit breaker, Cable glands, etc, are following international standards CE IEC, TUV, ISO9001 etc.
We have hundreds of brother companies providing good sources, can be your sourcing agent in China to save cost and a whole series service.
Joymell with experienced Quality management engineers and system, to make sure the products we produced and sourced are with high quality to support customers.
Joymell is a company full of love, we believe enjoy work enjoy life. To provide employees best working conditions, and best treatments. training and learning opportunities to make employees improve themselves.
Joymell also attends some social acitivities, to help old and orphan etc. To take as much social responsibility as can.
Our target is to provide customers as much profit as can, and first-time service. To make employees enjoy work enjoy life.
Welcome to contact Joymell.
