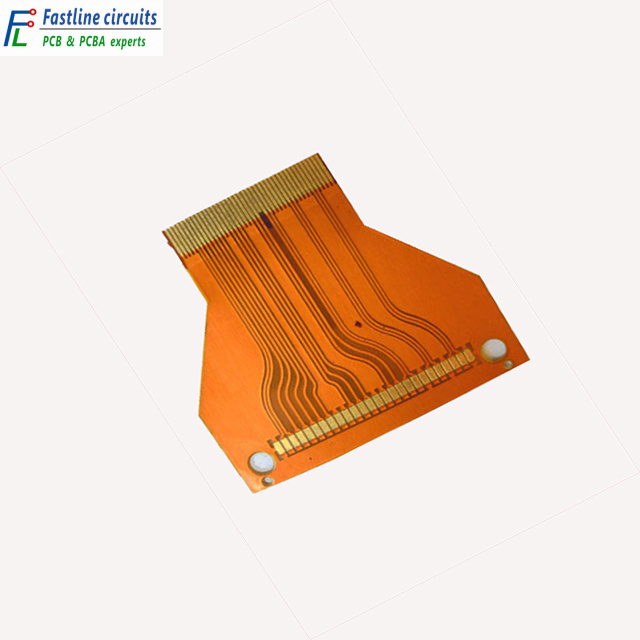

Customized Yellow Flexible Circuit Board with Polyimide Material

Name: Customized Yellow Flexible Circuit Board with Polyimide Material
Brand: all-electronics-online.com
SKU: 768913705
Availability: InStock
Rating: 4.9 (39 reviews)

Price:	US $ 0.43-0.57/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Fl9999
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Board Material:	Polyimide
Board Layer:	1-2 Layer
Board Thickness:	0.1 mm
Copper Thickness:	1 Oz
Solser Mask:	Yellow
Silkscreen:	White
Surface Finishing:	Enig
Lead Time:	4-5 Working Days
Shipping Type:	DHL.TNT, EMS, FedEx, UPS etc
PCB Design:	Custom Design Product
Structure:	Double-Sided FPC
Material:	Polyimide
Combination Mode:	Adhesive Flexible Plate
Application:	Aviation and Aerospace
Conductive Adhesive:	Conductive Silver Paste
Base Material:	Polyimide

Product Description

Parameter & Data Sheet

Size of Flexible PCB	30.5 X 10.38mm
Number of Layers	2
Board Type	Flexible PCB
Board Thickness	0.10mm
Board Material	Polyimide 25µm
Board Material Supplier	Shengyi
Tg Value of Board Material	60ºC

PTH Cu thickness	≥20 µm
Inner Iayer Cu thicknes	N/A
Surface Cu thickness	35 µm

Coverlay Colour	Yellow
Number of Coverlay	2
Thickness of Coverlay	25 µm
Stiffener Material	NO
Stiffener Thickness	N/A

Type of Silkscreen Ink	IJR-4000 MW300
Supplier of Silkscreen	TAIYO
Color of Silkscreen	White
Number of Silkscreen	1

Peeling test of Coverlay	No peelable
Legend Adhesion	3M 90ºC No peeling after Min. 3 times test

Surface Finish	Immersion Gold
Thickness of Nickle/Gold	Au: 0.03µm(Min.); Ni 2-4µm
RoHS Required	Yes
Famability	94-V0

Thermal Shock Test	Pass, -25ºC±125ºC, 1000 cycles.
Thermal Stress	Pass, 300±5ºC,10 seconds, 3 cycles. No delamination, no blistering.
Function	100% Pass electrical test
Workmanship	Compliance with IPC-A-600H & IPC-6013C Class 2

Fastline is a Leading PCB manufacturer in China. It was found in 2003, serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries.

Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument, security electronics, aerospace and so on.

And provides "PCB One-stop PCB solution" to meet customers' diverse demands.

Our factories with a facility area of more than 40, 000 square meters with 1000 professional staff, And we have got the approval of ISO9001 certificates. ULCertification and all Products Meet RoHS compliance.

Fastline Circuits is commited to provide superior quality products and services that consistently meet and exceed our customers requirements on time, every time!
