| Prod Model: |
CVS100, CVS100F, CVS250 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| Brand: |
Winston |
| Uimp: |
8kv |
| Control: |
Manual |
| Rated Voltage: |
690V |
| Rated Frequency: |
AC50/60Hz |
| Release Type: |
Thermal Magnetic |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Certification: |
CE |
| Structure: |
Moulded Case Circuit Breaker |
| Type: |
Circuit Breaker |
| Function: |
Circuit-Breaker Failure Protection |
Product Description
Specifications
CVS100 3P intelligent moulded case circuit breaker
1. CE,OEM
2,CVS 100A 3P MCCB
3.Small size, easy installation
CVS100F 3P intelligent moulded case circuit breaker
1. CE,OEM
2,CVS 100A 3P MCCB
3.Small size, easy installation
CVS 4P 250A winston Moulded Case Circuit Breaker
1. CE,OEM
2,CVS 250A 4P MCCB
3.High quality CVS

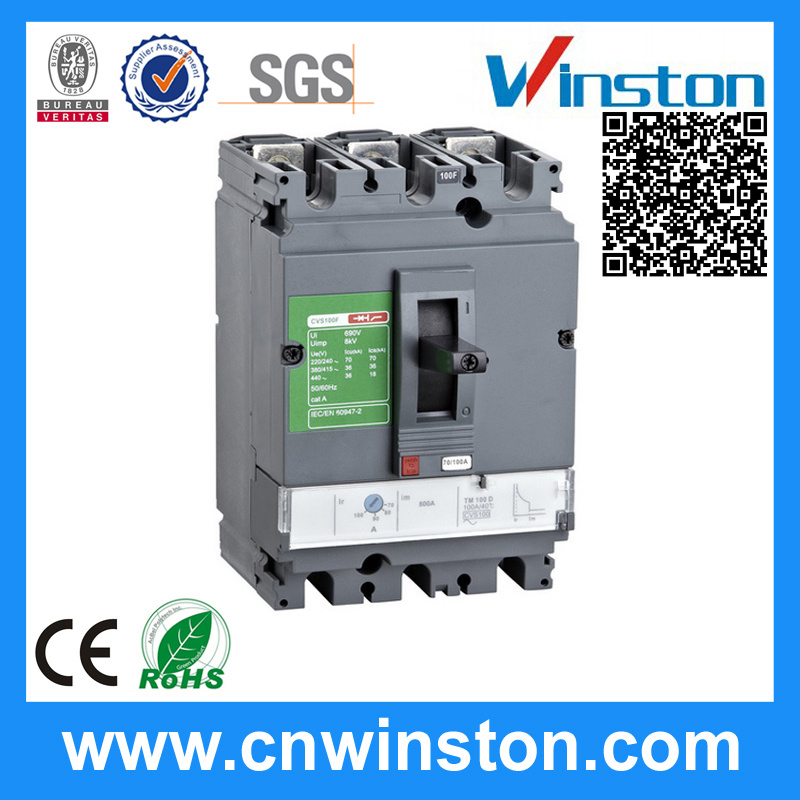

CVS100 Thermal magnetic Moulded Case Circuit Breaker with CE approval
CVS100 Thermal magnetic Moulded Case Circuit Breaker with CE approval
Product Description
1. The CVS series MCCB reflects the latest current limiting principle and manufacturing technology, characterized by compact structure, full modularization, high breaking, and zero arcover.
2. Its rated insulation voltage is 690V, rated operating voltage is AC50/60Hz, 440V and below, rated current up to 630A.
3.It's used for generating infrequent conversion and infrequent startup of the motor.
4.Circuit breaker is equipped with overload, short circuit and under voltage protection devices, so as to protect the circuit and E type compact power equipments from damage.
5. It conforms to IEC60947-2 and EN60947-2 standard.
Specifications
Number of poles | 3P |
Frame current |
100A |
| In (rated current) | 160 A ( 40 °C ) |
| Ui | 690V |
| Ue | AC50/60Hz, 440V |
| Uimp | 8kV |
| Circuit breaker application | distribution |
| Brand | Winston |
| Pollution degree | 3 conforming to IEC 60947-1 |
| Control type | Toggle |
| Mounting mode | Fixed |
| Dimension(mm) W X H X D | 105mm X 161mm X 86mm (for 3P) |
| 140mm X 161mm X 86mm(for 4P) |
| Protection type | Overload protection (thermal) |
| Short-circuit protection (magnetic) |
Item No.: CVS100/160/250F | Number of poles: 3P & 4P | Frame current: 160A |
| Ue: AC50/60Hz, 440V | Uimp: 8kV | Brand: Winston |
| Control type: Toggle | Mounting mode: Fixed | MOQ: 8 pcs |
| Circuit breaker application: distribution | Earth-leakage protection: without |
| Suitability for isolation: Yes conforming to EN/IEC 60947-2 | Pollution degree: 3 conforming to IEC 60947-1 |
| In (rated current) :160 A ( 40 °C ) | Ui: 690V |
| Dimension(mm): W X H X D | 105mm X 161mm X 86mm (for 3P) |
| 140mm X 161mm X 86mm(for 4P) |
| Protection type: Overload protection (thermal); Short-circuit protection (magnetic) |
| Payment: T/T(30% as advance, balance before shipment), L/C, Western Union |
| Package: 8pcs per carton, 40.5cm X 29cm X 31cm per carton. |
Symbol:
Ui: rated insulation voltage.
Uimp: rated impulse withstand voltage.
Ue: rated operational voltage.
icu: rated ultimate short-circuit breaking capacity.
Working Environment
1. the altitude below 2000m.
2. the ambient temperature between 40ºC and -5ºC.
3. It can withstand the impact from humid air, salt spray, oil mist and mold.
4. In places with no danger of explosion, no conductive dust, and no substance enough to corrode metal or damage the insulation.
5. In places with no rain and snow erosion.
