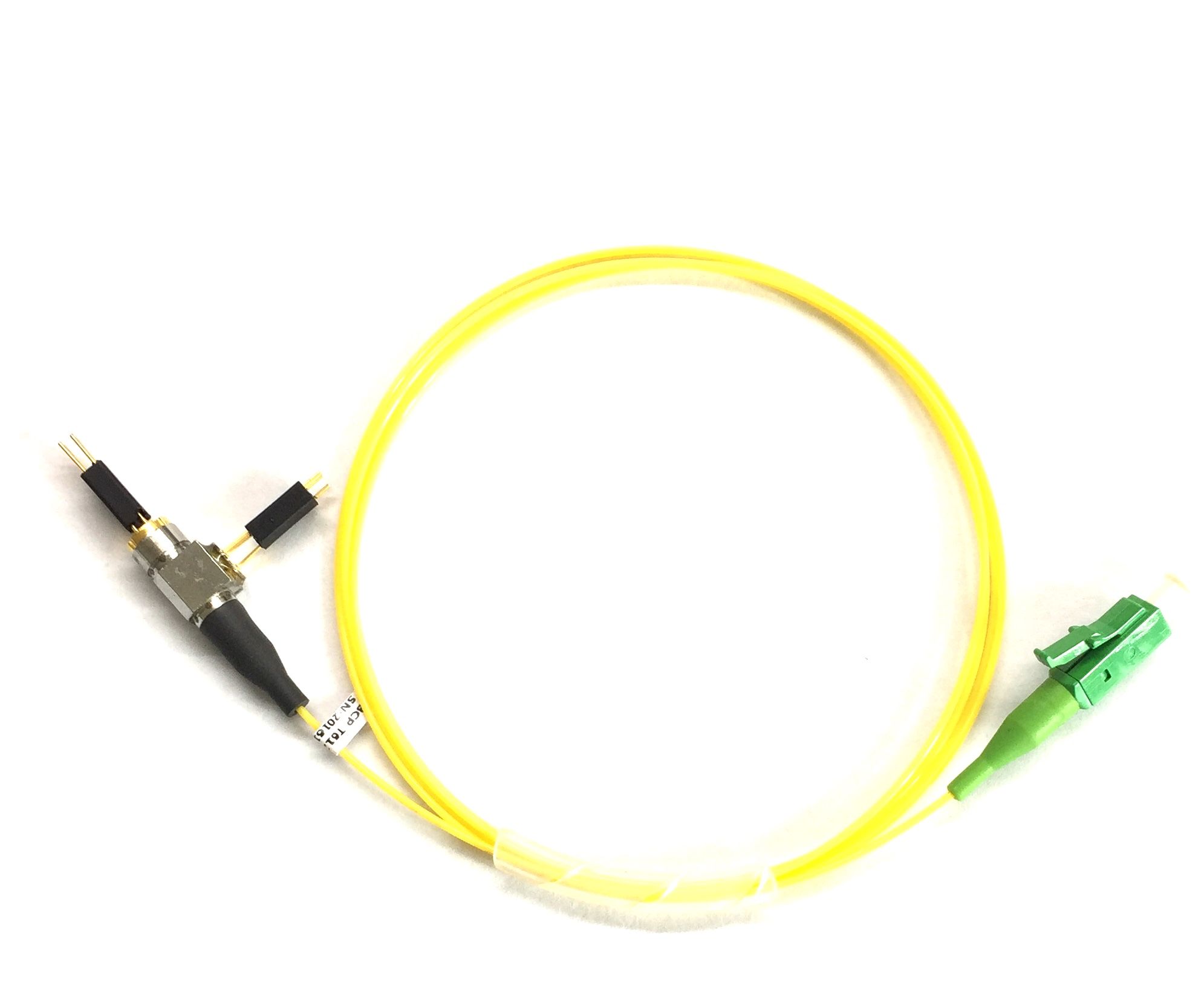

CWDM Dfb Laser Diode Tosa (GY-Q18**51-PSA-C2) CATV Optical Transmitter

Name: CWDM Dfb Laser Diode Tosa (GY-Q18**51-PSA-C2) CATV Optical Transmitter
Brand: all-electronics-online.com
SKU: 666264952
Availability: InStock
Rating: 4.5 (136 reviews)

Price:	US $ 5-50/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GY-Q18**51-PSA-C2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Fiber Transceiver
Wiring Devices:	DDF
Certification:	RoHS
Condition:	New

Product Description

Features: 5year warranty

MQW 1470nm ~ 1610nm CWDM DFB laser diode transmitter
Low Operating current
Excellent Reliability
Rear Facet Monitor
Date rate operation up to 2.5Gbps
Single mode Optical Fiber
ST\FC\SC/PC Receptacle, or Pigtail optional
Need more detail information, pls visit our website or contact our sales for data sheet.

Applications:
Telecommunication
Data Communication

Electrical and Optical Characteristics:
Transmitter Specifications(Tc=25Degree, unless otherwise specified)

Parameter		Symbol	Test conditions	Min	Typ	Max	Unit
Center Wavelength	GYQ184751-PSA-C2	Λo	CW,T=0' to 70'C	1462.5	1470	1477.5	nm
	GYQ184951-PSA-C2	Λo		1482.5	1490	1497.5	nm
	GYQ185151-PSA-C2	Λo		1502.5	1510	1517.5	nm
	GYQ185351-PSA-C2	Λo		1522.5	1530	1537.5	nm
	GYQ185551-PSA-C2	Λo		1542.5	1550	1557.5	nm
	GYQ185751-PSA-C2	Λo		1562.5	1570	1577.5	nm
	GYQ185951-PSA-C2	Λo		1582.5	1590	1597.5	nm
	GYQ186151-PSA-C2	Λo		1602.5	1610	1617.5	nm
Optical Output Power ( I_op=I_th+20mA)		P₀	CW	0	-	-	dBm
Operating Voltage		V_OP	CW	-	-	1.6	V
Threshold Current		I_th	T=25'	-	8	12	mA
Threshold Current		I_th	T=0~+70'	-	30	40	mA
Operating Current		I_OP	T=25'	-	16	30	mA
Operating Current		I_OP	T=70'	-	50	75	mA
Spectral Width		Δλ		-	-	1	nm
Side mode suppression ratio		SMSR	CW	30	40	-	dB
Rise and Fall Time		T_r, T_f	Ib=Ith,20-80%	-	-	0.15	nS
Monitor Current		I_m	CW,Po=5mW	0.08	0.5	-	mA
Connector Loss		IL_1550nm		-	-	0.5	dB
Connector Reflection		RC_1550nm		-	-	-50	dB
Optical Isolation		ISO		35	-	-	dB

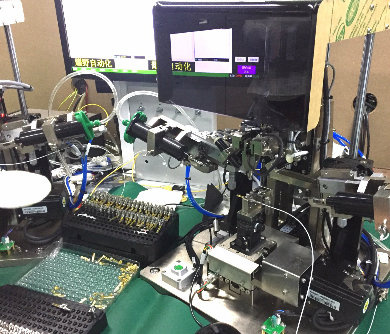

Factory Equipment

Shipement and payment

GY SUNTEC is a high-tech enterprises of ShenZhen China, was founded in 2006. Design and manufacture fiber optic active components, modules and fiber optic system products, Include SFP, SFP+, XFP, CFP, CFP2, CFP4, QSFP+, SFP28, QSFP28 series optical transceiver, and fiber media converter, optical video transmitter and receiver, we also customorized the laser diode for customer. Our products widely applied in many fiber optical communication fields, such as Telocom, Datacom, Data centre, access network, fiber channel and FTTX, CCTV surveillance etc. Our engineer have more 18year experience in fiber optic field, abundant technology design capability and rich OEM & ODM co-operation experience, we would design and biuld your product for your application. Compliant with CE, RoHS, FCC. To achieve your 100% satisfaction is our persistent goal! Looking forward to establishing a long-term and steady co-operation relationship with you!

GYSUNTEC have more than 50 employee, include R&D 6 and businessman 8. We have more than USD500000 investment in auto machine and test equipment.

Our products fully compitable with all famous brands

We have an experienced engineering team with over 18 years on cross platform compatibility and able to access to massive major manufacturer's switches, routers...To verify the compatibility in our test lab.

CISCO, HP, EXTREME, , JUNIPER, ARISTA, FUJITSU, HUAWEI, , ZYXEL, DLINK, Siemens, WESTERMO, KORENIX etc.

Welcome to visit GYSUNTEC!
