Cx-Flm-RF-3001-1 Muti-Point Small Float Level Switch

Name: Cx-Flm-RF-3001-1 Muti-Point Small Float Level Switch
Brand: all-electronics-online.com
SKU: 749931025
Availability: InStock
Rating: 5 (135 reviews)

Price:	US $ 15/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CX-FLM-RF-3001-1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Install Mode:	Optional
Float Ball Size:	Optional
Temperature:	-20~100c
Switch:	Nc/No
Power Supply:	220V
Accuracy Error:	±2mm (in Water)

Product Description

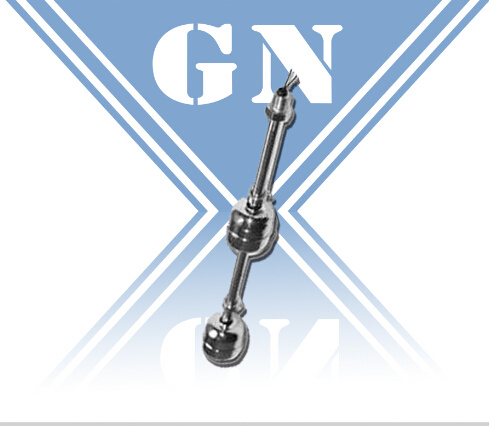

CX-FLM-RF-3001-1 Muti-point small float level switch

Brief introduction
1.Muti-point small float level switch (direct mounted with double points and double float)
2.Simple structure , conveniently usage's level control parts
3.It can control the level for hot water inside the appliance or mechanical equipment or sealed container

Main features
1.Adopt SUS304/316 stainless steel
2.It does not have complex circuit and will not get disturbed
3.It has high temperature resistance, long working life ,stable performance

Main parameters

Installation	Top or bottom-mounted (vertical +/-20 ºC)
Installation screw	G1/8"
Electric connection	300mm, UL1430 AWG22
Float material	SUS304/316
Pressure	6 Bar
Float proof temperature	-10~80ºC
Accuracy	+/-2mm (in the water)
Repeatability	+/-1mm (in the water)
Switch type	N.C./N.O
Work voltage	220VAC
Work current	0.70A
Switch power	70VA
Durability	100000times
Float dimension	Dia.28 * dia.9.50*28

Cixi flowmeter Co., Ltd. Was established in 2008 and since then has been dedicating itself to research and manufacture of various kinds of flowmeter. With sophisticated experience in technology and management, CIXI Flowmeter has made a name for itself as an excellent manufacturer of various kinds of flowmeter. In 2007, we have especially set up Shanghai Cixi Instrument Co. Ltd for handling the deals of Export.

Thanks to outstanding performance of products, CIXI Flowmeters are being applied in more and more fields where there' S liquid to measure. CIXI Flowmeters have found users in many countries besides China, such as Malaysia, India, Thailand, Vietnam, South Africa and so on. Increasing number of users are finding that CIXI Flowmeter are kind of product with super performance and reasonable price.
