Cx-FM Fuel Consumption Flow Meter

Name: Cx-FM Fuel Consumption Flow Meter
Brand: all-electronics-online.com
SKU: 749066485
Availability: InStock
Rating: 4.6 (69 reviews)

Price:	US $ 160/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CX-FM
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Medium:	Diesel Oil
Flow Range:	1-80L/H 4-200L/H
Output:	Output
Temperature:	-40-80c
Pressure:	32bar
Material:	Brass

Product Description

CX-FM fuel consumption flow meterProved and tested system

Easy and accurate reading of engine fuel consumption
No extra maintenance necessary
Tamper-proof measurement
Low installation costs
Quick and easy installation
Short down-time of vehicle only
Quick pay-back period

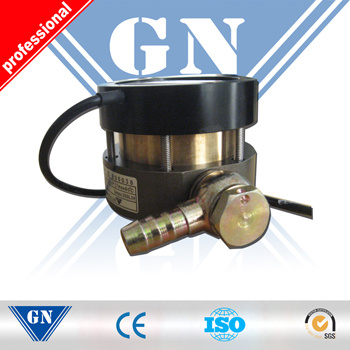

GN series Fuel consumption flow meter, is made by technology from Switzerland, It is most popular Fuel consumption flow meter in the world.

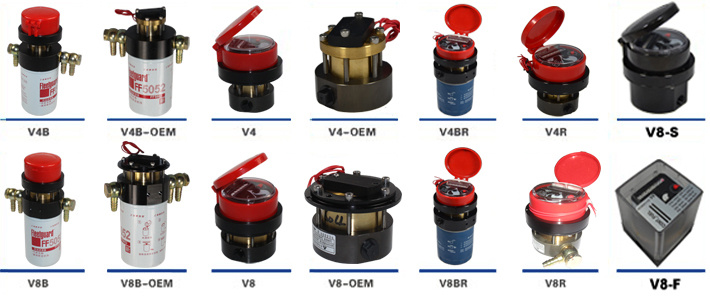

V4 series Fuel consumption flow meter
Model: V4 / V4 OEM / V4R
Size: DN 4 mm
Connection: M14× 1.5FT
Flow range: 1~80L/H.
Pressure: PN 16 bar
Repeatability: ± 0.1%
Normal flow: 50 UH
Max error: ± . 1%(Note: If use the pulse value alone, the accuracy better than 0.5%)

V4:
With mechanical totalizer, no pulse output

V4R:
Flow meter with both totalizer and 3-wire pulse
Output.
Electric limit: 4-18VDC(12 VDC recommended),
Pulse volume: 1Upulse

V4 OEM(2wire):
Flow sensor with reed switch pulse output
Electrical Iimit: 12124148 VDC, 50mA,
Pulse volume: 0.005Upulse

V4 OEM(3wire):
Flow sensor with hall sensor pulse output
Electrical limit: 4-18VDC(12 VDC recommended),

V8 series Fuel consumption flow meter
Model: V8/V8 OEM /V8R/D8
Size: DN 8 mm
Connection: M14× 1.5FT
Flow range: 4-200L/H.
Pressure: PN 16 bar
Repeatability: ± 0.1%
Normal flow: 135 L/H
Max error: 1% (Note; If uses the pulse value alone, the accuracy better than 0.5%)

V8:
With mechanical totalizer, no pulse output

V8R:
Flowmeter with both totalizer and pulse output
(hall sensor pulse output, 3 wire)
Electrical limit.: 4-18VDC(12VDC recommended),
Pulse volume: 1 L/pulse

V8 OEM(2wire):
Flow sensor with reed switch pulse output
Electrical limit: 12/24/48 VDC, 5OmA,
Pulse volume: 0.0125L/Pulse

V8 OEM(3wire):
Flow sensor with reed switch pulse output
Electrical limit: 12/24/48 VDC, 50mA,

D8:
Duel V80EM sensor, do not need change the oil path when installation.

Cixi flowmeter Co., Ltd. Was established in 2008 and since then has been dedicating itself to research and manufacture of various kinds of flowmeter. With sophisticated experience in technology and management, CIXI Flowmeter has made a name for itself as an excellent manufacturer of various kinds of flowmeter. In 2007, we have especially set up Shanghai Cixi Instrument Co. Ltd for handling the deals of Export.

Thanks to outstanding performance of products, CIXI Flowmeters are being applied in more and more fields where there' S liquid to measure. CIXI Flowmeters have found users in many countries besides China, such as Malaysia, India, Thailand, Vietnam, South Africa and so on. Increasing number of users are finding that CIXI Flowmeter are kind of product with super performance and reasonable price.
