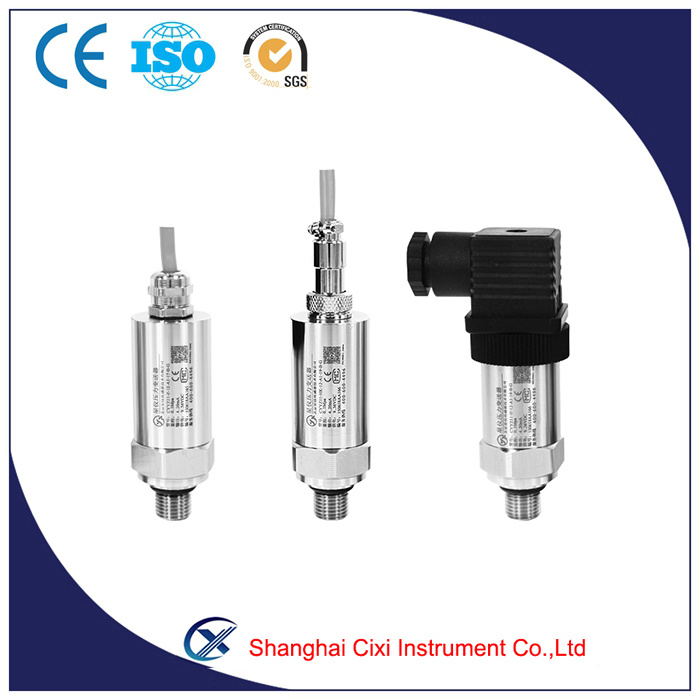

Cxptb-211 High Quality Pressure Sensor (CXPTB-212)
| Price: |
US $ 300/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal,Western Union |
| Prod Model: |
CXPTB-211 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Range: |
-1~0~200MPa |
| Accuracy: |
0.25%Fs, 0.5%Fs |
| Nonlinearity: |
Full Range X 0.2% |
| Reliability: |
Full Range X 0.05% |
| Output: |
4-20mA, Hart Option |
| Input Voltage: |
24(9-36V)DC (Standard) |
| Operating Temperature: |
-20~80c |
| Compensated Temperature: |
0~70c |
| Overload Pressure: |
150%Fs |
| Wetted Parts: |
Stainless Steel |
| Type: |
Pressure Measurement |
Product Description
CXPTB-211 Industrial Pressure Sensor (Intelligent type)Description
CXPTB-212 series high precision pressure transmitters has been specially designed to cover the majority of industrial applications where need high accuracy measuring. Compact design and robust construction make these instruments suitable for all application in machine construction, process control, laboratory or quality and materials testing equipment.Application- Mechanical Engineering Industry
- Hydraulic and level measurement
- Gas tank pressure monitoring
- Industrial test and control
- General industrial applicastions
Feature- Pressure range:-1~0 to 0…2000bar
- HART digital communication
- Better than 0.5% combined error
- Configurable via handled
- Output supplied directly to DCS or PLC
- Approved for hazardous environments

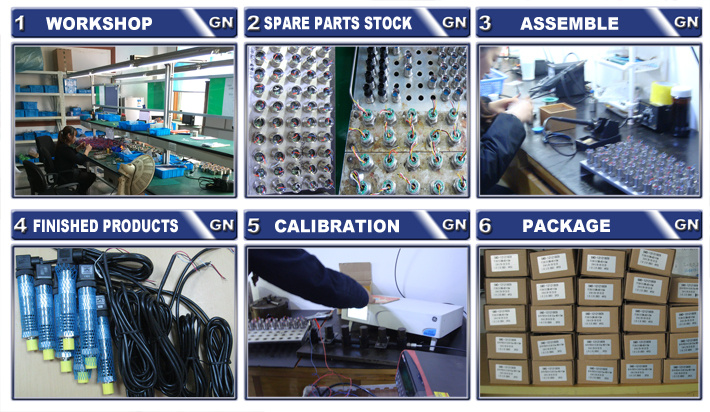

Production Line

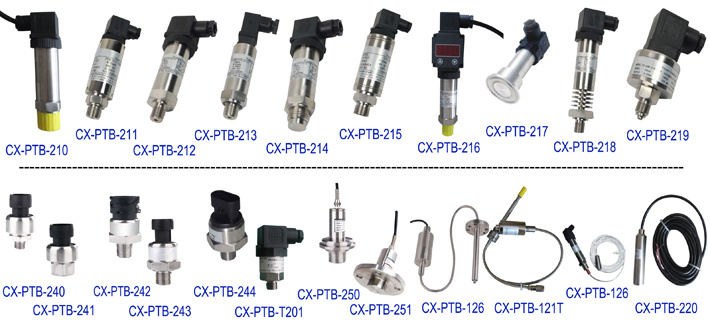

Series of Products
Group Photo
Payment Terms
1.Loading Port: Shanghai China
2. Samples Leading Time: 3-7 working days
3. Delivery Time: Within 7-15 days after payment
4.Payment: T/T, Western Union, Paypal
After-sales service
We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
Our Integrity Promises your Quality !
Please contact with me, I will provide you professional service and high quality products.| Connector type1 | Function | Color | 5PIN | Connector type2 | Function | Color |
5PIN connector
0-5V; 0-10V
0.5-4.5V,1-5V | S+ | Blue | 1 | Grand cable
0-5V; 0-10V
0.5/4.5V,1-5V | S + | Blue |
| E+- | Red | 2 | E + | Red |
| E-/S- | Black | 3 | E-/S- | Yellow/White |
5PIN connector
1.5mV/V,2mV/V
3.33mV/V | S+ | Blue | 1 | Grand cable
1.5mV/V,2mV/V
3.33mV/V | S+ | Blue |
| E + | Red | 2 | E + | Red |
| S - | White | 3 | S - | White |
| E - | Yellow | 4 | E - | Yellow |
| C | Black | 5 | C | Black |
5PIN connector
4-20mA | E+ | Red | 1 | Grand cable
4-20mA | E+ | Red |
| S+ | Black | 2 | S+ | Black |
| Connector type3 | Function | Color | 4PIN | Connector type4 | Function | Color | 4PIN |
Hirschman
0-5V; 0-10V
0.5-4.5V,1-5V | E+ | Red | 1 | M12×1 connector
0-5V; 0-10V
0.5-4.5V,1-5V | E + | Brown | 1 |
| S+ | Blue | 2 | S + | Blue | 3 |
| E -/S- | Black | 3 | E -/S- | White | 4 |
Hirschman
4-20mA | E+ | Red | 1 | M12×1 connector
4-20mA | E+ | Brown | 1 |
| S+ | Black | 2 | S+ | Blue | 3 |
Co n nector t y p e 1
| Function
| Color
| 5PIN
| Co n nector t y p e 2
| Function
| Color
|
5PIN con n ect o r
0-5 V ; 0- 1 0 V
0.5-4.5 V ,1 - 5 V
| S+
| Blue
| 1
| Grand ca b le
0-5 V ; 0- 1 0 V
0.5/4.5 V ,1-5V
| S +
| Blue
|
E+-
| Red
| 2
| E +
| Red
|
E-/S-
| Black
| 3
| E-/S-
| Y e ll o w /White
|
5PIN con n ect o r
1.5mV/ V , 2mV/V
3.33mV/V
| S+
| Blue
| 1
| Grand ca b le
1.5mV/ V , 2mV/V
3.33mV/V
| S+
| Blue
|
E +
| Red
| 2
| E +
| Red
|
S -
| W h ite
| 3
| S -
| W h ite
|
E -
| Y e ll o w
| 4
| E -
| Y e ll o w
|
C
| Black
| 5
| C
| Black
|
5PIN con n ect o r
4-20mA
| E+
| Red
| 1
| Grand ca b le
4-20mA
| E+
| Red
|
S+
| Black
| 2
| S+
| Black
|
Co n nector t y p e 3
| Function
| Color
| 4PIN
| Co n nector t y p e 4
| Function
| Color
| 4PIN
|
Hirschm a n
0-5 V ; 0- 1 0 V
0.5-4.5 V ,1 - 5 V
| E+
| Red
| 1
| M12×1 co n ne c tor
0-5 V ; 0- 1 0 V
0.5-4.5 V ,1 - 5 V
| E +
| Br o w n
| 1
|
S+
| Blue
| 2
| S +
| Blue
| 3
|
E -/S-
| Black
| 3
| E -/S-
| White
| 4
|
Hirschm a n
4-20mA
| E+
| Red
| 1
| M12×1 co n ne c tor
4-20mA
| E+
| Br o w n
| 1
|
S+
| Black
| 2
| S+
| Blue
| 3
|
