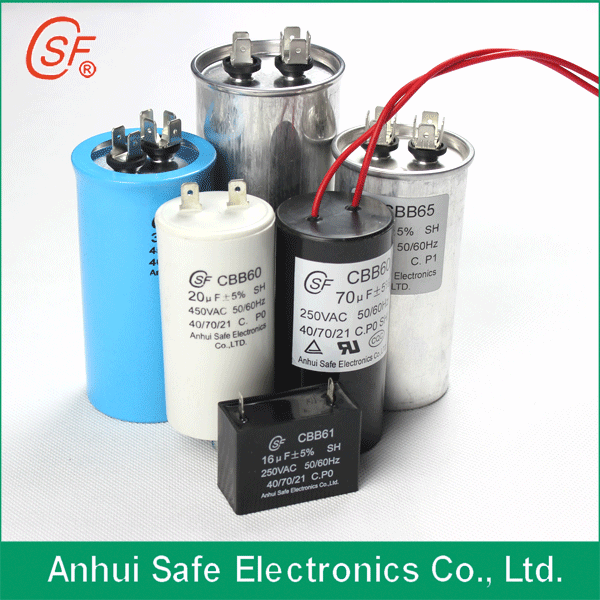

Cylinder Capacitor

Name: Cylinder Capacitor
Brand: all-electronics-online.com
SKU: 695472735
Availability: InStock
Rating: 4.7 (21 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CBB60
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Polypropylene Capacitor
Package Type:	Through Hole
Application:	Automobile
Usage:	Fan Capacitor
Structure:	Motor Capacitor
Electrolyte:	Oil/Resin
Capacitance:	1-120UF

Product Description

Air conditioner capacitor,oil capacitor, motor capacitor,IGBT capacitor,CBB65 capacitor,motor run capacitor,aluminum case capacitor,anti-explosion capacitor,inverter welding capacitor, fan capacitor, CBB61 capacitor.
The capacitor takes heavy-edge metallize Al/Zn PP film as electrodes and dielectric. Its components are sealed with flame-retardant epoxy resin. It has cylindrical outline with high moisture resistance and stability.
Applications
Broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for washers and high efficiency compressors of refrigerators etc.
Features:
1. Wide capacitance range, small size
2. Long life due to self-healing effect
3. Suitable for blocking, by-pass and coupling of DC and signals to VHF range
4. Widely used in filter, noise suppression and low pulse circuits
5. Capacitance: 1uF --50uF.
6. Rated voltage: 250VAC / 370VAC / 440VAC / 450VAC / 500VAC
7. Operating frequency: 50/60Hz
8. Capacitance deviation: +-5%
9. Out leads: Wire or tabs
Specifications can be supplied according to the customers' special need.

For more information,you can contact and view our website:
www.capacitorfilm.com

Standard	GB3667.1-2005, IEC60252-1: 2001, UL810
Capacitance range	1uF~120uF
Capacitance deviation	± 5% or according to customers’ requests.
Rated Voltage	220VAC, ~ 500VAC
Rated frequency	50/60Hz
Operating Temperature	-40° C~+85° C
Class of safety protection	P0, P1, P2
Testing voltage	T-T: 2.0Un/60S
Tangent of loss angle of a capacitor	tanσ ≤ 0.002 (100Hz)
Size	according to chart or users require

Anhui Safe Electronics Co., Ltd. is a member of Green International Group. We mainly deal with AC motor capacitors, DC link capacitors, BOPP film (polypropylene film), MPP film (metalized film), inkjet PVC ID cards, polyester heat transfer film, PET film and other related products.

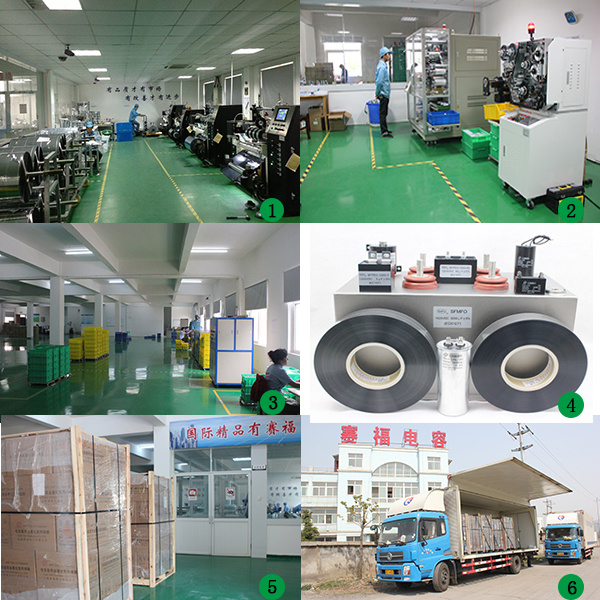

Our company has arranged the production of AC Motor Capacitors since 1999. Since the foundation of our company, the high-end slitters, the large-scale high-velocity winding machines, metal-spraying machines, automatic lines, automatic test lines and other advanced lines have been imported successively from Japan, Italy and Switzerland.

The production lines are state-of-the-art with internationally first-class quality. The annual output of all types of AC Motor Capacitors is 18 million pieces. We take the lead in this industry in China. There is a standard capacitor lab and calibration rooms for weight-and-measure gauges and test instruments in our company. We have got ISO9000 Quality System Certification and are endowed with considerable strong capability of technological development and quality control.

With one decade of experience accumulation and constant renovation, our company makes three key essential technological breakthroughs in the aspects of safety, endurance and temperature resistance. The products have all kinds of quality approvals to enter international markets such as CQC, UL, cUL, TUV and VDE. The products are suitable in diversified kinds of domestic and overseas prestigious-branded air-conditioners, refrigerators, compressors, washers, illuminators and other industries.

Our company is located in Tongling city-- ecological city of China. Our company adjoins to Shanghai, Nanjing and Ningbo and is close to traveling scenic spots of famous Huangshan Mountain and Jiuhuashan Mountain.

"good faith, serving the whole world" is our principle.
