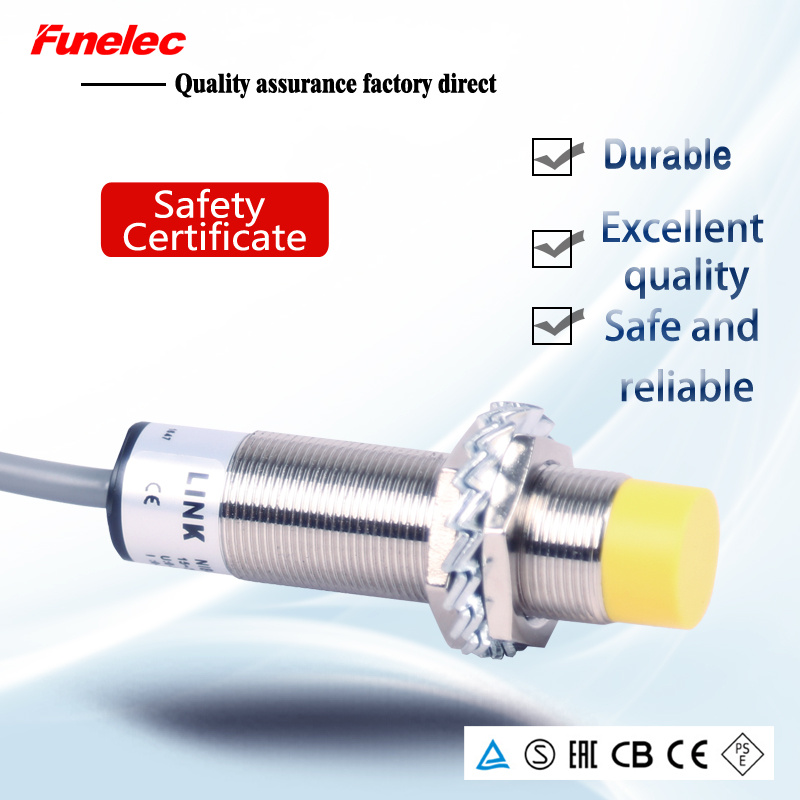

Cylinderical NPN No M12 DC 3 / 4 Wires Standard Function Series Wiring Inductive Proximity Sensor
| Price: |
US $ 1-1.2/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
FNM12-DG-NO1 |
| Type: |
Inductive Proximity Sensor |
Product Description
For output type:
NPN, PNP, Normally Open, Normally Closed Selection, Select the option according to the need to use, and explain the output type as follows:
Normally open and normally closed, the main difference is based on the status of the contacts in the sensor when there is no induction.
Normally open type: The contact is open when the proximity switch sensor is not activated (when no object is sensed) and closed when the proximity switch sensor senses the object. Normally open is the signal output is in the open state in the normal state. When the object is sensed, the contact is closed and the signal is output.
Normally closed: The contact is closed when the proximity switch sensor is not active and is open when the proximity switch sensor senses an object. Normally closed is the signal output in the normal state is closed, the signal continues to output, when the object is touched when the contact is open, the output closes the signal.
NPN: After the installation, when there is no induction, the output is high (for example, input 24V, output 24V or so). When there is an object sensing, the output is low and the output signal is triggered to achieve the detection purpose.

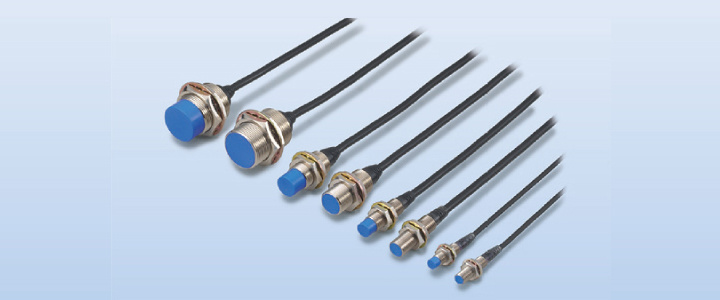

PNP: After installation, when there is no induction, the output is low (for example, input 24V, output 0V or so). When there is an object sensing, it outputs a high potential and triggers the output signal to achieve the detection purpose. Cylinderical NPN NO M12 DC 3 / 4 wires Standard function series wiring inductive proximity sensorStandard function type inductive sensors LR12X series | | Features Non contact detection, safe and reliable; ASIC design; Perfect choice for metallic targets detection; | | Part number | NPN NO LR12XBF02DNO LR12XBN04DNO | PNP NO LR12XBF02DPO LR12XBN04DPO | NPN NC LR12XBF02DNC LR12XBN04DNC | PNP NC LR12XBF02DPC LR12XBN04DPC | NPN NO+NC LR12XBF02DNR LR12XBN04DNR | PNP NO+NC LR12XBF02DPR LR12XBN04DPR | | Technical specifications | Mounting Flush Non-flush | Leakage current [lr] ≤15mA | Rated distance [Sn] 2mm 4mm | Circuit protection Short-circuit, overload and reverse polarity | Assured distance [Sa] 0…1.6mm 0…3.2mm | Output indicator Yellow LED | Dimensions M12*63mm M12*67 mm | Ambient temperature -25ºC…70ºC | Output NO/NC(dependson part number) | Ambient humidity 35-95%RH | Supply voltage 10…30 VDC | Switching frequency [F] 1500 Hz 1000 Hz | Standard target Fe 12*12*1t Fe 12*12*1t | Voltage withstand 1000V/AC 50/60Hz 60s | Switch-point drifts [%/Sr] ≤±10% | Insulation resistance ≥50MΩ(500VDC) | Hysteresis range [%/Sr] 1…20% | Vibration resistance 10…50Hz (1.5mm) | Repeat accuracy [R] ≤3% | Degree of protection IP67 | Load current ≤200mA | Housing material Nickel-copper alloy | Residual voltage ≤2.5V | Connection type 2m PVC cable |
| | |
| | | |
| | | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
| | |
WenZhou Funelec Electrical Co., Ltd., which specializes in manufacturing series of breakers, is a scientific enterprise integrating with scientific research, manufacture, processing and trading business. It has 300 employees with an area of more than 3000 square meter.
The main products in our company are Miniature Circuit Breaker, Residual Current Circuit Breaker, isolator. It consists of 9 series of products with over 60 types. Our products apply into high end of market in the world. With the safe product certificate of EU-CE, Sweden S, Finland F1, Poland B, Argentina IRAM&CB and the certificate of China CCC, ISO9001 International Quality Management System, the qualification of products reaches advanced world level, and the quality is accepted by high end of market. Meanwhile, we have our own intellectual rights for breakers and leakage breakers and have advanced testing and assembly equipment and exquisite manufacture techniques.
It covers worldwide markets, among them European as a leading market with many customers from top 500 enterprises. WenZhou Funelec Electrical Co., Ltd.
