Cylindrical Small Size 2.8V 3.5f Ultracapacitor/Edlc/Seper Capacitor
| Price: |
US $ 0.4-0.5/Piece |
| Min Order: |
200/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
BUP002R8L355FA |
| Rate Voltage: |
2.8V |
| Rate Capacitance: |
3.5f |
| Operating Temperature: |
-40c~65c |
| Max. Tolerance Of Capacitance: |
-20%~+80% |
| Cycle Life: |
1000000times |
| Color: |
Black |
| Type: |
Supercapacitor |
| Application: |
General Purpose |
| Package Type: |
Through Hole |
| Capacitance: |
3.5f |
| Usage: |
Backup Power |
| Tuning: |
Supercapacitor |
| Filter: |
Supercapacitor |
Product Description
Liaoning Brother Electronics Technology co., Ltd.
FeaturesCylindrical shape structure,low internal resistance;
Comply with ROHS standards,no Cd,Pb and other pollutants;
Long charge-discharge cycle life;
Ultra-low internal resistance,suitable for high power discharge.

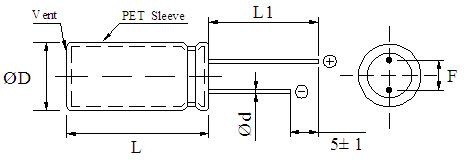

High voltage up to 2.8V, under the same conditions with high reliability.SpecificationsShape of standard product
Spec. value of standard product and dimensions
Part Number | Nominal
Voltage
V dc |
Capacitance
F | MAX ESR
1kHz,mΩ | ΦD×L
±1.0(mm) | F±0.5
(mm) | Φd±0.1
(mm) | L1±1.0
(mm) |
| BUP002R8L355FA | 2.8 | 3.5 | 60 | 8×19 | 3.5 | 0.6 | 30 |
Part Number | Max. stored energy
mWh |
Nominal current
A | Weight
g |
| BUP002R8L355FA | 3.81 | 0.77 | 1.9 |
Packiaging & DeliveryPlastic tray/Standard export carton
576pcs/case(80pcs/case)
6case/carton(3456pcs/carton)
9.2kgs/carton| Part Number | QUANTITY(PCS) | Dimension (L×W×H)mm | Total weight (Kg) |
| | / Inner | / Outer | Inner | Outer | |
| BUP002R8L355FA | 576 | 3456 | 260×188×90 | 400×280×290 | 9.2 |
ApplicationsIntelligent electrical appliance,electronic toy
Intelligent door lock,MP3,PDA,DVD,VTR,GPS,PLC
UPS,electric cooker, self-powered super flashlight,laptop
Electronic energy meters,water meter ,electricity meter
Memory Back up Batteries
Smart grid and other ancillary equipment.
Our Service1. All of BIGCAP super capacitor 2.8v 0.25f, 0.35f, 0.5f, 1f, 2f, 3f, 3.3f, 4.7f, 5f, 8f, 10f, 15f, 20f, 25f, 30f, 50f 60f,70f quality guaranteed 1 year2.We can supply our customer high quality products with a reasonable price, by using our products, customers can cut off their production cost and assure their products' stability.
3.We can design and produce products according to customer's requirments.
4.With our professional technical team,we can provide our customer with professional technical support.
5.More importantly,we will be five-star service,high quality and low price!
Liaoning Brother Electronics Technology Co., Ltd is a manufacturer of the Bigcap® Super capacitors which is located at High-TechTechnologyIndustrial Park, Chaoyang, Liaoning. Favorable location endows our company with easy access to transportation and communication.
Our company specializes in the design, research, development, production and sale of various super capacitors which exhibit complete specifications and reliable quality. The capacity of single super capacitor ranges from 0.01F to 3000F and our products extend to cover more than 100 types in around ten series, such as BRE, BRP and BME. So far our products have come into extensive use in such areas as intelligent instruments (gas meter, water meter, ammeter, etc. ), electrical equipment, medical equipment, solar and wind energy products, toys, and electric cars. Serving as back-up source, our products supplies high power in short term.
Our research team is highly experienced in the manufacturing of super capacitors. Our management has been engaging in the management of production and R&D of super capacitor for 12 years, our main technical personnel have 8 to 10 years' experience in the design and manufacturing of this field and our workers have more than 5 years' experience in the processing of super capacitors. Our work team that is made up of the technical elites of the industry commits to turning out first-rate super capacitors of China and to enabling our products to play a leading role in international brands.
By carrying forward the valuable experience in the super capacitor industry and combining the advanced electrode activation technology, now our products exhibit advanced technical level in China and stable quality. Our BIGCAP® Super capacitor series is characterized by reissuance to high voltage (Single super capacitor can operate in 2.8V. ), great stability in long-term operation, wide temperature range (maximum temp.: 85º C), ultralow internal resistance that applies to electric discharge of medium and large power.
Our production facilities are characterized by high automation degree and high precision. Our company carries out the Six Sigma management system and has obtained the ISO9001: 2008 quality management system and the ISO14001: 2004 environmental management system. Our products are environmental-friendly and comply with the RoHS of the EU.
Our quality policy is win good market reputation through scientific quality management, elaborate production process, powerful technical support and excellent after-sales service.
Bigcap Technology relies on product quality to survive and progress. Each one of our product is our cell, the quality of which is closely related to the life of Bigcap. To offer satisfactory products to customers is the bounden duty of all our employees.
