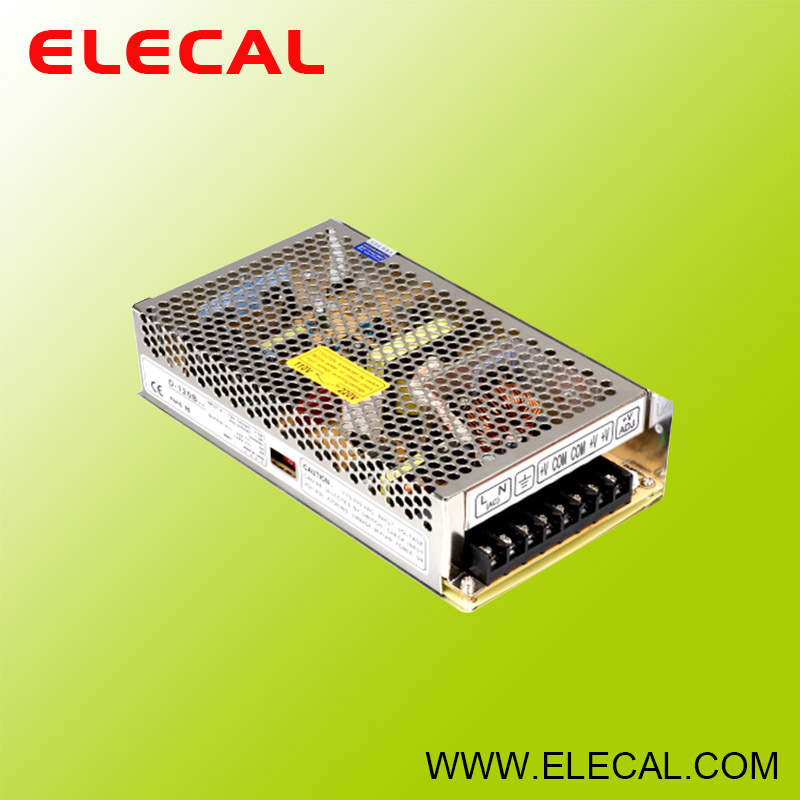

D-120 Multiple Output Switching Power Supply

D-120A

D-120B

OUTPUT NUMBER

CH1

CH2

CH1

CH2

DC VOLTAGE

5V

12V

5V

24V

RATED CURRENT

12A

5A

6A

4A

CURRENT RANGE

2-12A

0.5-5A

2-10A

0.4-4A

RATED POWER

120W

126W

RIPPLE & NOISE (max.) Nofte.2

60mVp-p

120mVp-p

60mVp-p

1S0mVp-p

VOLTAGE ADJ. RANGE

CH1:4.75-5.5V

VOLTAGE TOLERANCE Note.3

±2.0%

±6.0%

±2.0%

±7.0%

LINE REGULATION

+0.5%

±1.0%

+0.5%

±1.0%

LOAD REGULATION

±0.5%

+5.0%

+0.5%

±6.0%

SETUP, RISE TIME

200ms_J 50ms at full load

HOLD UP TIME (TVp.)

24ms at full load

VOLTAGE RANGE

68 ~ 132VAC/176 ~ 264VAC selected by switch 248 - 370VDC

FREQUENCY RANGE

47-63HZ

EFFICIENCY CTyp-)

78% | 80%

AC CURRENT (Typ.)

2.2A/115VAC 1.3A/230VAC

INRUSH CURRENT (Typ.)

COLD START 32A

LEAKAGE CURRENT

<3.5mA/240VAC

PROTECTION

OVERLOAD

105 -135% rated output power

Protection type: Shut down o/p voltage, re-power on to recover

OVERVOLTAGE

CH1:5.75-6.75VDC

Protection type: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.

-10 - +60°C {Refer to "Derating Curve")

WORKING HUMIDI1T

20 - 90% RH non-condensing

STORAGE TEMP.,HUMIDITY

-20~+85°C, 1~95% RH

TEMP. COEFFICIENT

±0.03%/°C (O-SOr) on +5V output

VIBRATION

10 ^m 500Hz, 2G 10min./1 cycle, 60min. each along X, Y, Zaxes

SAFETY &

SAFETY STANDARDS

UL60950-1, TUV EN60950-1, CCC GB4943 approved

WITHSTAND VOLTAGE

l/P-0/P:3KVAC l/P-FG:1.5KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

l/P-O/P, l/P-FG, O/P-FG:100M Ohms / 500VDC /25OC/ 70% RH

EMC EMISSION

Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,6,11, ENS5024, light industry level, criteria A

OTHERS

MTBF

272.8Khremin. MiL-HDBK-217F{25°C)

DIMENSION

199*110*50mni(L*W*H)

PACKING

0.82Kg; 16pcs/14.2Kg/0.95CUFT

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : indudes set up tolerance, line regulation and load regulation.

4. The power supply is considered a component which will be installed into a final equipment.
