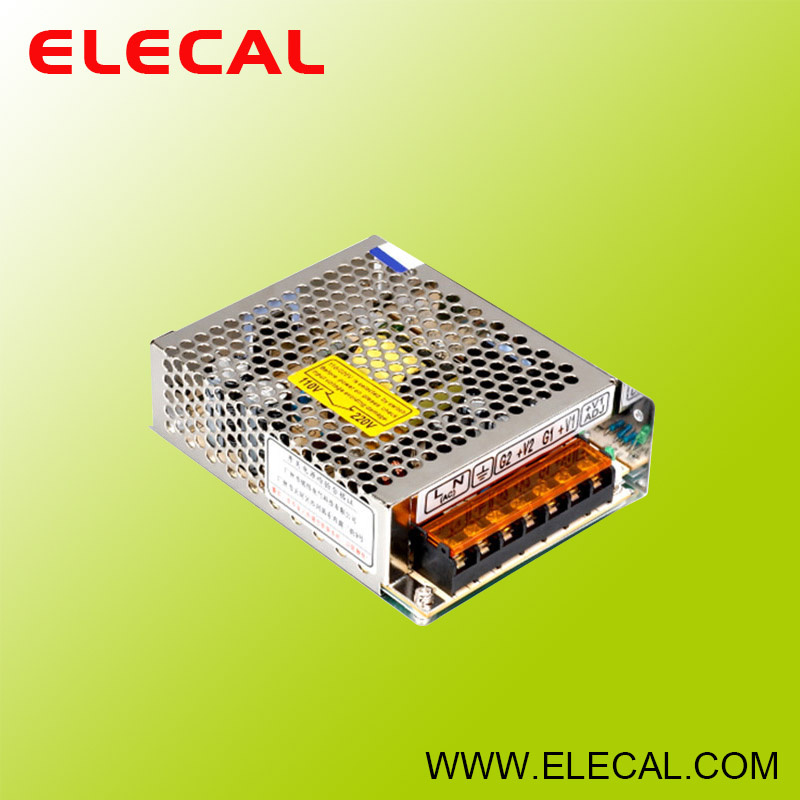

D-30 Multiple Output Switching Power Supply

Name: D-30 Multiple Output Switching Power Supply
Brand: all-electronics-online.com
SKU: 828694585
Availability: InStock
Rating: 4.6 (49 reviews)

Price:	US $ 2/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	D-30
Frequency Range:	47-63Hz
Warranty:	2 Years
Certification:	CE
Output Type:	Multiple Output
Output Power:	32W/35W
Input Voltage:	0.8A/115VAC
Brand:	Elecal

Product Description

MODEL		D-30A		D-30B
OUTPUT	DC VOLTAGE	5V	12V	5V	24V
	RATED CURRENT	4A	1A	2.2A	1A
	CURRENT RANGE	0.5-4A	0.1-1A	0.5 ~4A	0.1 ~1A
	RATED POWER	32W		35W
	RIPPLE & NOISE (max.) Note.2	50mVp-p	100mVp-p	50mVp-p	100mVp-p
	VOLTAGE ADJ. RANGE	CH1:4.75-5.5V		CHI: 4.75-5.5V
	VOLTAGE TOLERANCE Note.3	±2.0%	+ 3,-7%	±2%	+ 3,-5%
	LINE REGULATION	±0.5%	±1.0%	±0.5%	±1.0%
	LOAD REGULATION	±0.5%	±4.0%	±0.5%	±4.0%
	SETUP, RISE, HOLD TIME	200ms, 50ms, 30ms at full load
INPUT	VOLTAGE RANGE	85 - 132VAC /170 ~ 264VAC selected by switch 240 -370VDC
	FREQUENCY RANGE	47-63Hz
	EFFICIENCY(Typ.)	72%		74%
	AC CURRENT	0.8A/115VAC 0.45A/230VAC
	INRUSH CURRENT(max.)	COLD START 18A/115VAC 36A/230VAC
	LEAKAGE CURRENT	<1mA/240VAC
PROTECTION	OVER LOAD	105-150% rated output power
		Protection type: Fold back current limiting, recovers automatically after fault condition is removed.
ENVIRONMENT	WORKING TEMP.	-10 ºC+60 ºC (Refer to output load derating curve)
	WORKING HUMIDITY	20 - 90% RH non-condensing
	STORAGE TEMP., HUMID	20_+85t:,1_95%RH
	TEMP. COEFFICIENT	±3%/r (0~5( ºC)
	VIBRATION	1Q - 500Hz, 2G 10min./1cycle> period for 60min. each along X, Y, Z axes
SAFETY & EMC	SAFETY STANDARDS	Design refer to UL1012
	WITHSTAND VOLTAGE	l/P-0/P:1.5KVAC l/P -FG:1.5KVAC O/P -FG:0.5KVAC
	ISOLATION RESISTANCE	l/P-O/P, l/P -FG, O/P -FG:100M Ohms/5MVDC
	EMI CONDUCTION &RADIATION	Design refer to FCC Par ti 5 J Conduction
OTHERS	MTBF	417.6K hrs min. MIL-HDBK-217F(25C)
	DIMENSION	1299838mm (LWH)
	PACKING	0.41Kg; 30pcs/13.4Kg/0.86CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Rfiple & noise are measured at 20Mhlz of bandwidth by using a 12" twisted pair-wre terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation.

Our comany produce many electric appliance: Distribution box. Circuit breaker. Contactor. Relay and so on

We have an excellent working team. We produce every electric appliance carefiully and responsibly

Our electric appliances are used all over the word. We happily supply best productions and best service for every one

We hope cooperate with every friend from the word

www.elecal.com
