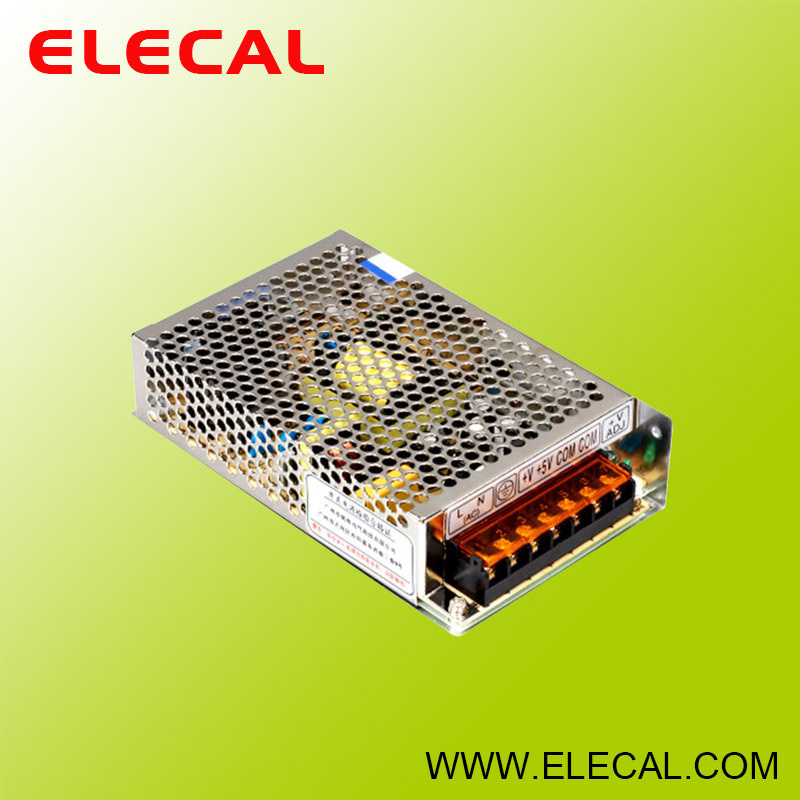

D-60 Multiple Output Switching Power Supply

D-60A

D-60B

OUTPUT

OUTPUT NUMBER

CH1

CH2

CH1

CH2

DC VOLTAGE

5V

12V

5V

24V

RATED CURRENT

4A

3A

3A

1.8A

CURRENT RANGE

0.3-6A

0.2-4A

0.3-6A

0.2-2.2A

RATED POWER

56W

58W

RIPPLE & NOISE (max.) Not».2

75mVp-p

150mVp-p

75mVp-p

150mVp-p

VOLTAGE ADJ. RANGE

CH1:475-5.5V

CHI: 4.75-5.5V

VOLTAGE TOLERANCE Noto.3

12.0%

+6.0%

±2.0%

+5.0%

LINE REGULATION

±0.5%

±1.0%

±0.5%

±0.5%

LOAD REGULATION

±0.5%

±4.0%

±0.5%

±4.0%

SETUP, RISE TIME

300ms, 50ms/23QVAC 800ms, 50ms/11GVAC at full load

HOLD UP TIME (Typ.)

80ms/230VAC 10ms/115VACatfull load

INPUT

VOLTAGE RANGE

85-264VAC 120-370VDC

FREQUENCY RANGE

47-63Hz

EFFICIENCY(Typ.)

73%

76%

AC CURRENT (TVp.)

2A/115VAC 1A/230VAC

INRUSH CURRENT (Typ.)

COLD START 20A/115VAC 40A/230VAC

LEAKAGE CURRENT

<3.5mA/240VAC

PD^TF^Tinii

OVERLOAD

105 -150% rated output power

Protection type: Hiccup mode, recovers automatically after fault condition is removed.

rnvi bwiiwii

OVERVOLTAGE

5V: 5.75-6.75V

Protection type: Hiccup mode, recovers automatically after fault condition is removed.

ENVIRONMENT

WORKING TEMP.

-10 ~ +60°C (Refer to "Derating Curve")

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

20~+85°C,10~95%RH

TEMP. COEFFICIENT

+0.03%/t; (0 ~ 50*0 on +5V output

VIBRATION

10 - 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Zaxes

SAFETY &

EMC

(Note 4)

SAFETY STANDARDS

UL1012, UL60950-1rTUV EN60950-1 approved

WITHSTAND VOLTAGE

l/P-0/P:3KVAC l/P-F6:1.5KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

l/P-O/P, l/P-FG, O/P-FG:100M Ohms / 500VDC/25OC/ 70% RH

EMC EMISSION

Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN55Q24, light industry level, criteriaA

OTHERS

MTBF

301.2K hrs min. MIL-HDBK-217F (25OC)

DIMENSION

159*97*38mm (L*W*H)

PACKING

0.54Kg; 24pcs/13.8Kg/0.75CUFT

NOTE

1. All parameteiE NOT specially mentioned are measured at 230VAC input rated load and 251C of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth b/ using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacrtsr.

3. Tolerance : induda& set up tolerance, line regulalicxi and load regulation.

4. The power supply is considered a component which will be installed into a final equipment.
