D Hole/Square Type Metal FC/APC/Upc Fiber Optic Adapter
| Price: |
US $ 0.1-0.3/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
D type/Square Type FC Fiber Optic Adapter |
| Insertion Loss: |
Less Than or Equal to 0.2dB |
| Return Loss(APC): |
More Than or Equal to 50dB |
| Operating Temperature: |
-40 ~ 85c |
| Storage Temperature: |
-40 ~ 85c |
| Transmission Medium: |
Single-Mode |
| Structure: |
FC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
PC(',UPC) |
| Connector Type: |
D Type/Square Type Metal FC/APC/Upc Fiber Adapter |
Product Description

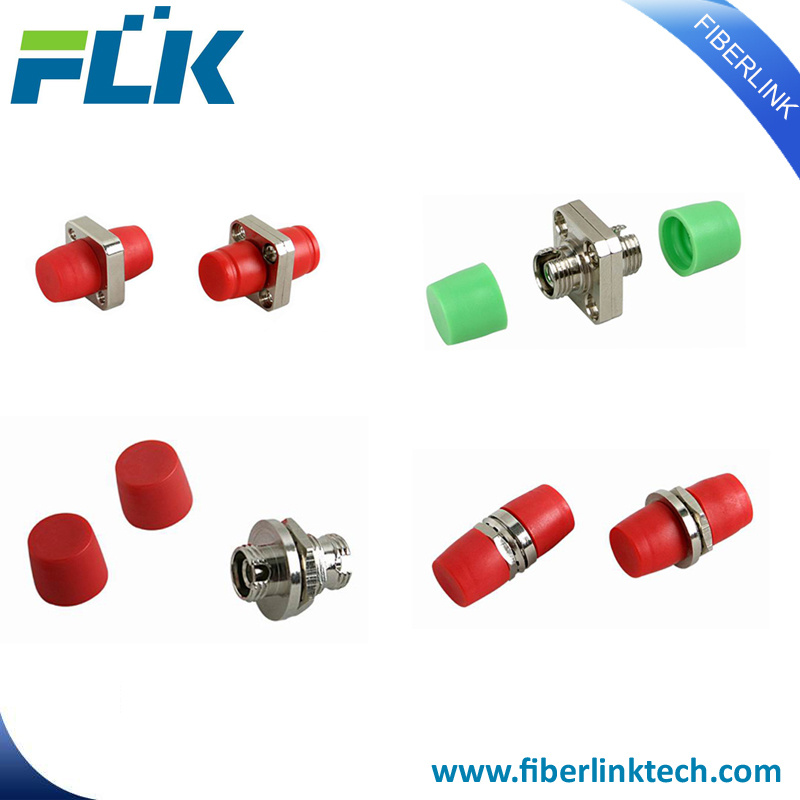

D type/Square Type Metal FC/APC/UPC Fiber Optic Adapter
Descriptions
Mating sleeve fiber optic adapters allow users to couple from one connector type to another same type. FC Fiber Optic adaptors are comprised of a polymer/metal outer body and inner assembly fitted with a precision alignment mechanism. FC Optical adapters are precision made and manufactured to demanding specifications. The combination of a ceramic/phosphor bronze alignment sleeves and precision molded polymer housing provides consistent long-term mechanical and optical performance.
Features
FC Adaptors with Excellent changeability and directivity
100% Optic test (Insertion Loss)
Ceramic and phosphor bronze sleeve tube optional
Accurate external size
Individually packaged
Applications
Fiber optic transmission system
CATV networks
LAN
Testing/Measurement Instruments
Fiber distribution frame, Mounts in Fiber Optic Wall Mount and Rack Mount Cabinets
Specifications
| Polish Type | Unit | PC | APC |
| Nominal fiber O/D | um | 125±2 |
| Insertion Loss | dB | ≤0.20 | ≤0.20 |
| Return Loss | dB | ≥50 | ≥60 |
| Mating Durability (500Cycles) | ≤0.20dB |
| Temperature Stability | ≤0.30dB |
| Operating Temperature | -40 ~ 85ºC |
| Storage Temperature | -40 ~ 85ºC |

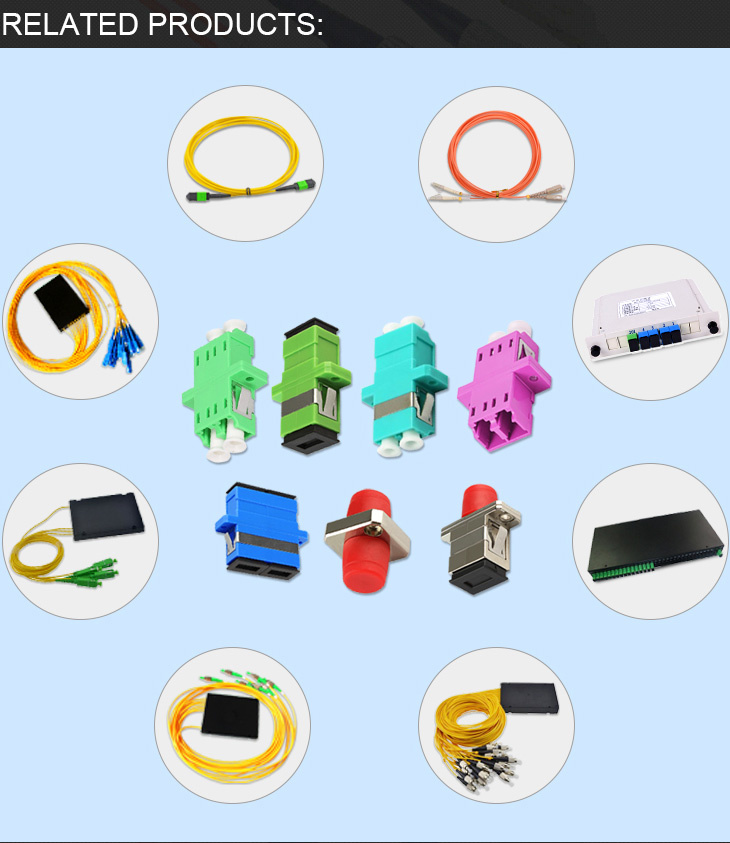

Related products
Our fiber patch cord production line:

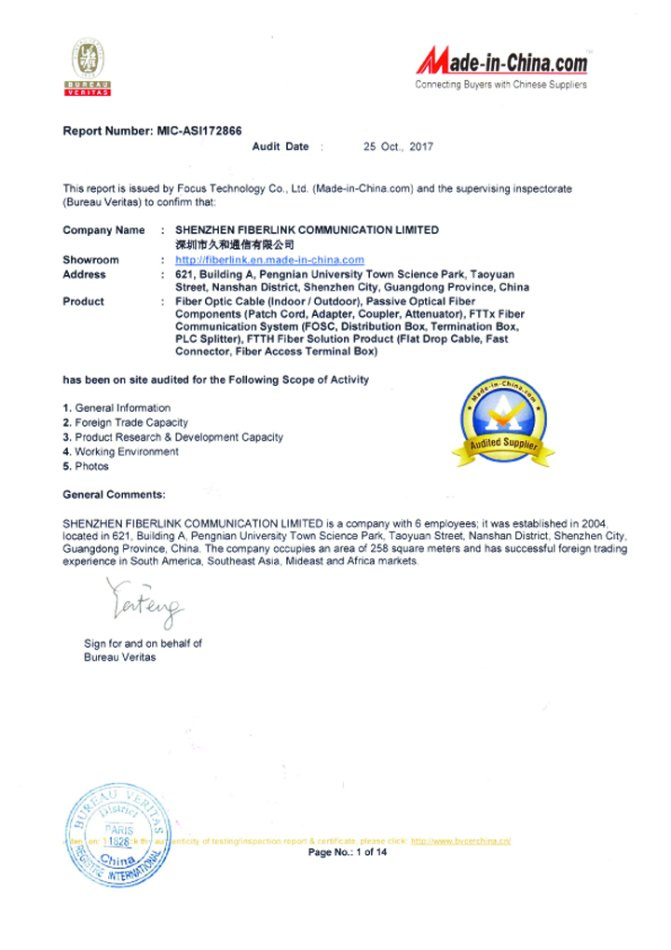

Certifications
Shipping:
Service:
1.Professional manufacturer, 100% tested.
2.Customers solutions in days, not weeks.
3.Warmly services with careful attentions.
4.Can provide your specific inquiry within 24 hours.
5.Save much costs, bring more benefit for customer to expand business.
6.We have been 9 years experience in this field. We are the prefessional supplier that you can trust.
