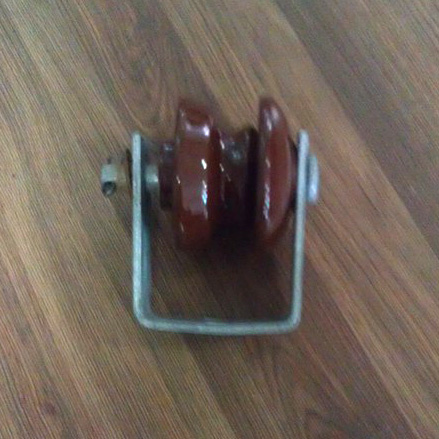

D Iron with Spool Insulator

Name: D Iron with Spool Insulator
Brand: all-electronics-online.com
SKU: 715879405
Availability: InStock
Rating: 4.3 (99 reviews)

Price:	US $ 2-30/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	EB-2B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
D Iron Material:	Carbon Steel
Finish:	Hot DIP Galvanized
Application:	High-temperature
Material:	Porcelain
Structure:	Shackle Insulator
Color:	Brown
Brand:	Vic

Product Description

ceramic low voltage hot dip galvanized D bracket insulator

1. With a wide range, good quality, reasonable prices and stylish designs, Orient D bracket insulator is extensively used in high voltage transmission &distribution .
2. Porcelain D bracket insulator is used to change angle or direction of conductor, the main type number of shackle insulator is ED-2B,ED-2B1,ED-2B2 and so on .
3. Orient Ceramic shackle insulator has two or more sheds and an axial mounting hole ,can be fixed firmly by thread nails .
4. porcelain spool shackle type d rion insulator can be used either in a horizontal position or in a vertical position. They can be directly fixed to the pole with a bolt or to the cross arm.
5. The design of Orient shackle insulator conforms to IEC, ANSI BS and other standards.

Type	Main dimensions (mm)					Mechnical failing load (kN)	Power frequency flashover voltage (KV)
Type	H	D	d	d1	R	Mechnical failing load (kN)	Dry	Wet
ED-2B	76	89	48	17.5	10	13	25	12
ED-2B1	76	92	55	18.5	9	13	25	12
ED-2B2	76	90	50	19	9.5	13	25	12
ED-2B3	76	89	50	21	9.5	13	25	12
ED-2B4	76	89	48	21	10	13	25	12
ED-2C	80	80	50	22	6	13.5	25	12
E-1	180	150	70	26	13	20	45	27
E-2	150	130	70	26	12	20	38	23
R-6	80	70	40	18	7	8.9	12	15

Victory Electric Power Equipment Co., Ltd. is Located at 68 Qiaoting Road, Shuige Industrial Park, Lishui City Zhejiang P. R. China, which is one of the largest enterprises specialized in producing power fittings, insulators and pole line accessories in China. We had got the Internatioanl Qaulity System ISO9001: 2000 certificate, and almost all products had passed the international lab test.

Our company have a strong technological power, top-ranking production equipments, advanced production process, a complete range of examining/detecting methods and high-efficiency enterprise management mechanism; Whose energy-saving and insulating capabilities comply with the energy-saving and insulating standards specified by the country. The company implements the national standards strictly and also makes equivalent adoption of the international standards.

Our company pay more attention to the sales network and after-sale service, Our products had been sold to more than 30 countries or regions. Our company continuously introduces the new technology, equipments and high-tech talents to make innovations in quality, technology and mechanism, realize the enduring improvement of quality and the high-standard upgrading of pre-sale and after-sale services, and meet the requirements of old and new customers so as to make more efforts and contributions to the brilliant future of the international electric power industry.
