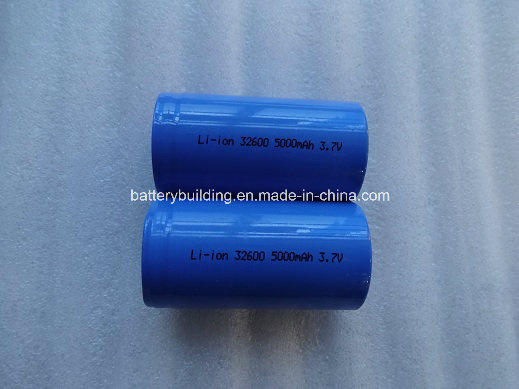

D Size Li-ion Battery Icr32600 5000mAh

Prod Model:	32600
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Bbg
Model Number:	32600
Nominal Capacity:	5000mAh
Size:	Max32.5*60.5mm
Cycle Life:	1,000 Times
Weight:	Approx 147g
Application:	Digital Products
Warranty:	1 Year
Certification:	CE, RoHS
Type:	Lithium-Ion Batteries
Usage:	Boat
Rechargeable:	Chargeable
Discharge Rate:	Medium Discharge Rate
Shape:	Cylindrical Battery
Nominal Voltage:	3.7V

Product Description

32600 3.7V 5000mAh D size Rechargeable Lithium ion Battery

1.Specification:
Nominal voltage: 3.7V
Nominal capacity: 5000mAh
Size: Max. 32.5*60.5mm
Cycle life: 1000 times
Warranty: 1 year
Weight: Approx 147g
Application: Digital products
Electrical features: With over-charge, over-discharge, short circuit and over-current protections, temp. Control NTC and PTC

2. Product Configuration:

No.	Item	Criteria
1	Li-ion Cylindrical Cell	Li-ion 32600-5000mAh 3.7V
2	PCM	NO
3	Wire & Connector	NO
4	PVC Film	Blue



3. Product Specification:

1.1 Capacity	Nominal Capacity 5000mAh (1.2A Discharge) Minimum Capacity 4950mah(0.48ADischarge)
1.2 Nominal Voltage	3.7V
1.3 Internal Impedance	≤ 70m
1.4 Discharge Cut-off Voltage	3.0V
1.5 Max Charge Voltage	3.75±0.05V
1.6 Standard Charge Current	1.2A
1.7 Max Charge Current	2.2A
1.8 Standard Discharge Current	1.2A
1.9 Max Continue Discharge Current	2.4A
1.10 Max Pulse Discharge Current	4.8A
1.11 Weight	147±1g
1.12 Max. Dimension	Diameter(Ø): 32.5mm Height (H): 60.5mm
1.13 Operating Temperature	Charge: 0 ~ 45°C Discharge: -20 ~ 60°C
1.14 Storage Temperature	During 1 month: -5 ~ 35°C During 6 months: 0 ~ 35°C


Application:
Portable equipment: POS, Portable printer, handset etc.
Medical instrument: B ultrasound, Ecg monitoring instrument electric pulmotor
Consumer electronics: PDA, MID, laptop, emergency light power source, Electriv power tool e-bicycle
Industrial and commercial instrument: Light power meter Gas testing instruments fusion splicer flaw detector
Electric toy: RC car/ boat/helicopter

Shipping:
1. We will ship the products within 15 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsiblility of the shipping service.

Payment:
1.We accept T/T, PAYPAL, Cash and so on.
2.If you prefer other payment terms, please contact us.

Replacement Policy:
1.We provide one year warranty.
2.If items is defective , please notify us within 3 days of delivery
3.Any items must be returned in their original condition to qualify for a replacement.
4.The buyer is responsible for all the shipping cost incurred.
