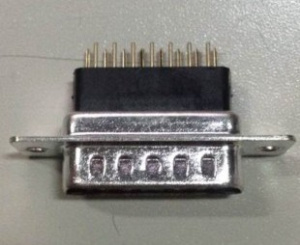

D-SUB Male Connector with Straight High Profile DIP Type

Name: D-SUB Male Connector with Straight High Profile DIP Type
Brand: all-electronics-online.com
SKU: 726501595
Availability: InStock
Rating: 4.9 (143 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1000/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	D-SUB connector series 005
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Type:	High Voltage Coaxial Connectors
Coupling Mechanism:	Clamping Type

Product Description

D-SUB Male Connector Straight high Profile DIP Type

Materials:
Shell: Steel material nickel finished dimples on plu only
Insulator: PBT thermoplastic 30% glass filled UL 94V-0 rated black color
Contact material: Brass
Contact finish: Selective gold finished
Grounding bracket: Brass material tin finisehd with #4-40 threaded assembled
Electrical characteristics:
Contact current reting: 5.0AMPS
Contact resistance: 30 millionhms max
Dielectric withstanding coltage: 500V AC min
Insulation resistance: 1000megaohms min
Temperature rating: -55° C - + 105° c
