D4 Inductive Proximity Sensor Namur Sensor

Name: D4 Inductive Proximity Sensor Namur Sensor
Brand: all-electronics-online.com
SKU: 798895335
Availability: InStock
Rating: 4.9 (143 reviews)

Price:	US $ 5.6-8.8/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KJT-NJK4
Material:	Nickel-Copper Alloy
Protection Degree:	IP 67
Wires:	Two-Wires
Standard:	Standard
Certification:	CE
Type:	Inductive Proximity Switch
Principle:	Inductive
Application:	Position Sensor, Speed Sensor

Product Description

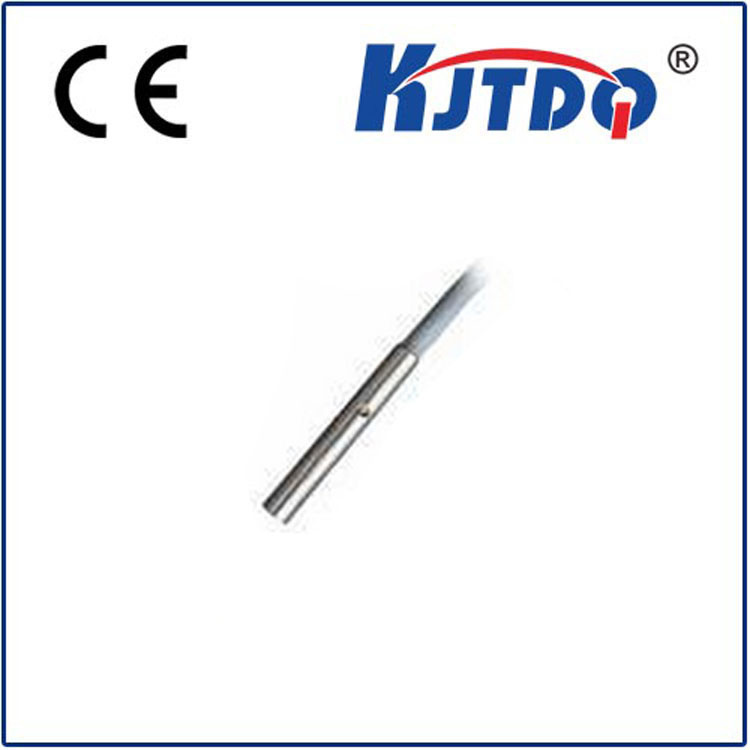

KJT-NJK4 Series Proximity Sensor/ inductive Namur switch

Detailed Product Description

Features:

1) Note: Customize for cable length, sensing distance ,housing material and shape.
Metal cylinderical inductive sensor

2) Compact volume

3) High repeat orientation precision

4) Small volume for narowwness space

5) Strong protection distribution

6) Dustproof, vibration-proof, waterproof and oil-proof

7) With short-circuit protection and inverted connecting protection

8) Service life up to one million

9) Adopts envelop glue, temperature resist, oil-proof colophony in it
Products Advantage:
1. Contactless, no abrasion, high reliability.
2. LED indicator
3. Diameter from φ 4-M30, multi lengths available
4. Cable and connector connection optical
5. Stable performance with professional IC design
6. Short-circuit protection, reverse polarity protection
7. Wide applied in position controlling and counting function.

Model	KJT-NJK4

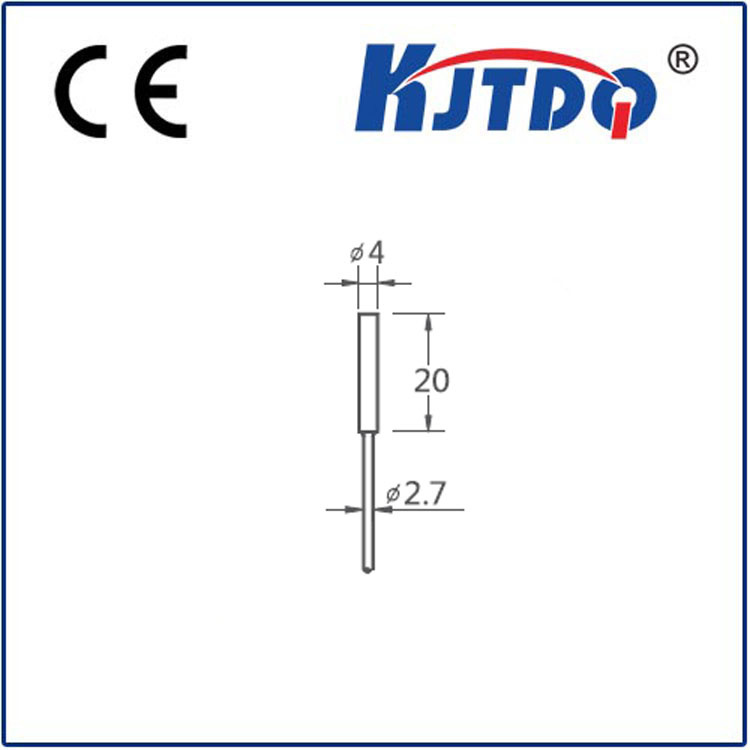

Specification(mm)	M4120/ M4120
Mounting	Flushed/ Non-flushed
Sensing distance	0.8mm/ 1mm
Supply voltage	8.2VDC
Output	NAMUR
Return difference	1-20%
Repeated accuracy	<3%
Frequency	2500Hz/ 2000Hz
Output display	/
Polarity protection	/
Insulation pressure resistance	500 V/AC,50/60Hz,60s
Short-circuit protection	/
Ambient temperature	-25~+70C
Ambient humidity	35~95%
Protection degree	IP67
Housing material	Stainless steel
Connection	2m PVC Cable
Certification	CE

Nanjing KJT Electric Co., Ltd. is a professional manufacturer in the field of sensors and industrial switches, Our high-tech products are widely used in the industrial mechanical equipment and automatic assembly lines for transportation, plastic, metallurgy, chemistry, textile, tobacco, food, printing and so on, with properties of location check, signal transmission, automatic counting and velocimetry.

Including automation and instrumentation division. Owning an outstanding R&D team who focus on core technique and devote themselves to development and innovation, we provide our esteemed customers with All-In-One solutions. We believe that the only way to offer the best industrial control system for customers is to be a total solution provider. Through our enterprise concept, we can make our customers reduce the cost of operation, enhance the efficiency of work, and increase the quality and plus the extra value of products. There are over 8, 000 customers in all industries worldwide. Our qualified products can successfully be used in worse environment with long life-time.
