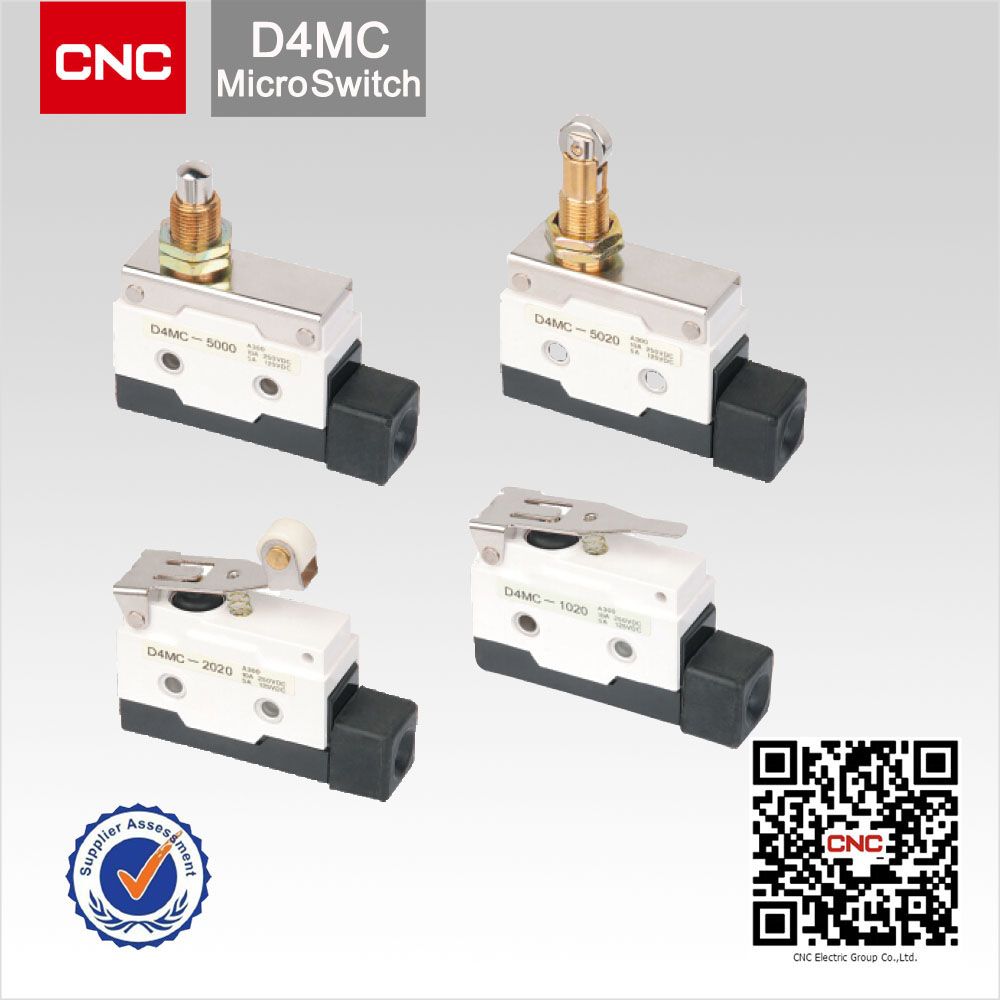

D4mc Series CNC Mini Micro Switches

Name: D4mc Series CNC Mini Micro Switches
Brand: all-electronics-online.com
SKU: 103220284
Availability: InStock
Rating: 4.3 (83 reviews)

Price:	US $ 1.5/Piece
Trade Terms:	FOB,CIF,CIP
Min Order:	50/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	D4MC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Current:	5, 10A
Rated Voltage:	AC 250/380V DC 125/250V
Mechanical Life:	15000000 Times
Electric Life:	500000 Times
Operation Speed:	0.05mm-0.5m/S
Ambient Temperature:	-25 to 80
Humidity:	Below 95%Rh
Protection Structure:	IEC Specification: IP63
Color:	White, Black
Certificate:	IEC/En 60947-5-1
Pressing Type:	Lever Roller
Protection:	Dust-Proof
Size:	Small-Sized
Breaking Form:	Duplex Type
Environment:	﹤250℃
Breaking Capacity:	General Type
Brand:	CNC

Product Description

D4MC Series CNC Mini Micro Switches

General

D4MC Series CNC Mini Micro Switch is used in AC control circuit of 50/60Hz, with a voltage UPT to 380V and a rated control capacity of 100VA in DC control circuits with a voltage up to 220V and rated control capacity of 100W.

D4MC Series Electrical Micro Switch:
1. Model: D4MC series
2. Standard: IEC/EN 60947-5-1
3. Frequency: 50/60Hz
4. Use condition: 380VAC/100VA or 220VDC/10W
5. Certoficate: ISO9001: 2000, ISO14001: 1996, CE

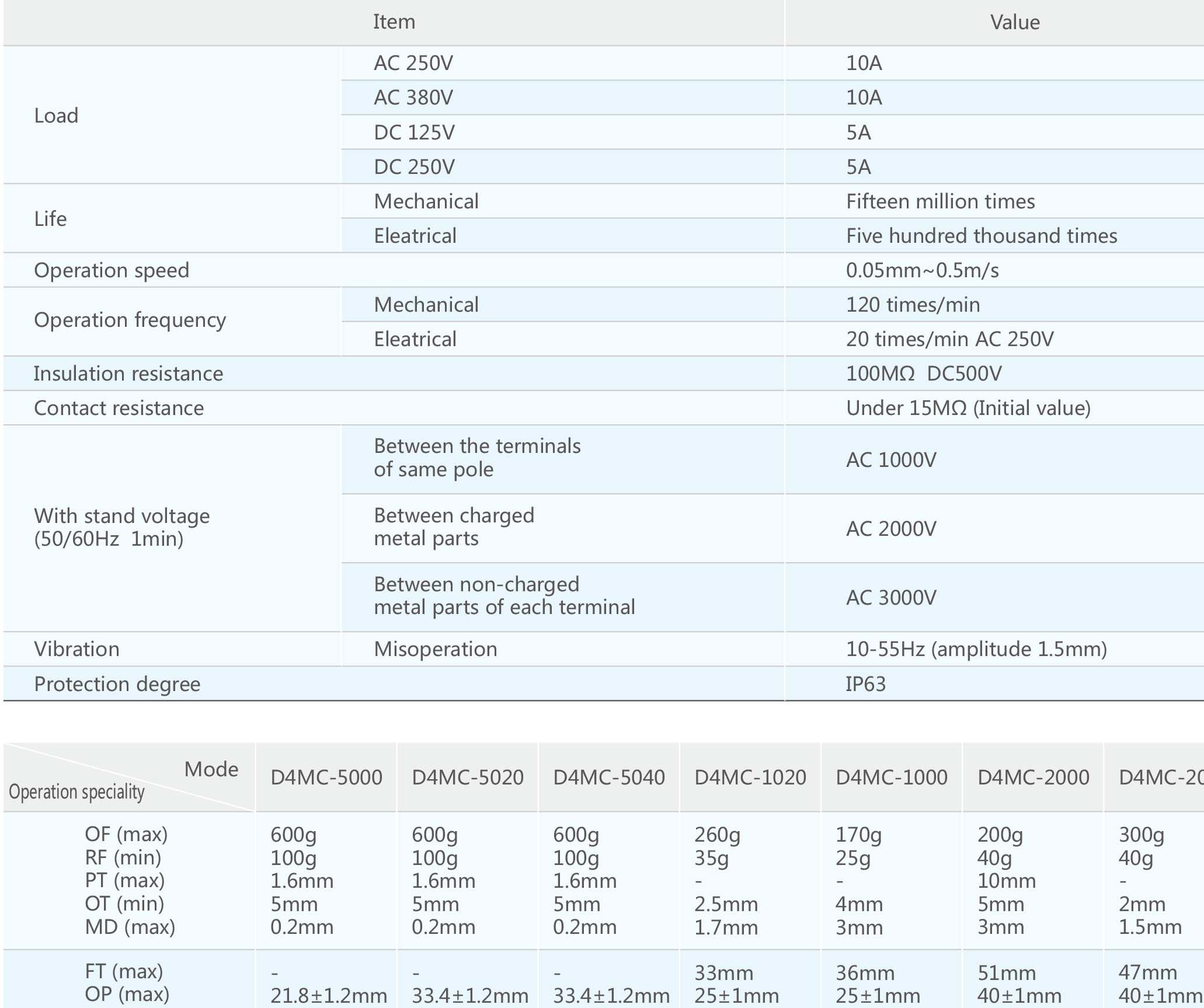

Specification

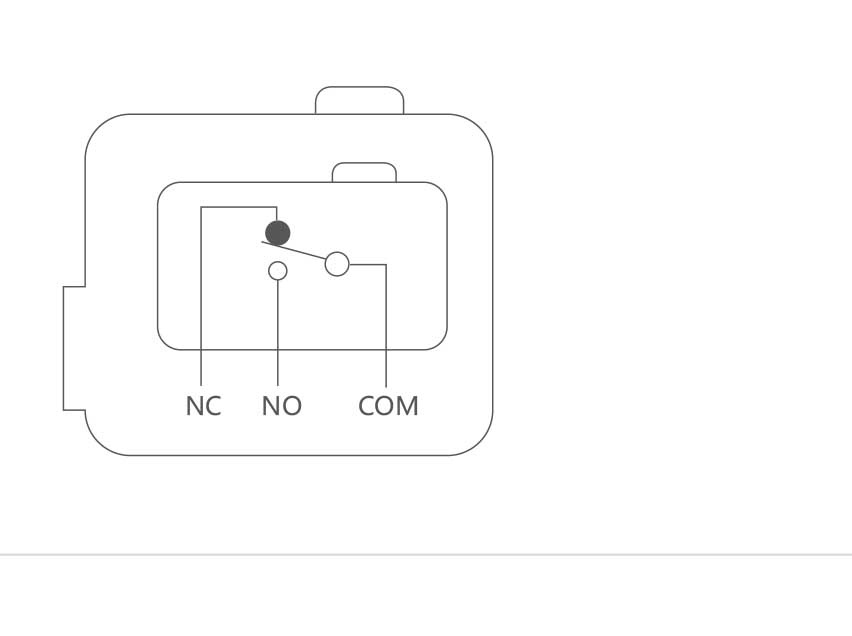

Contact Form

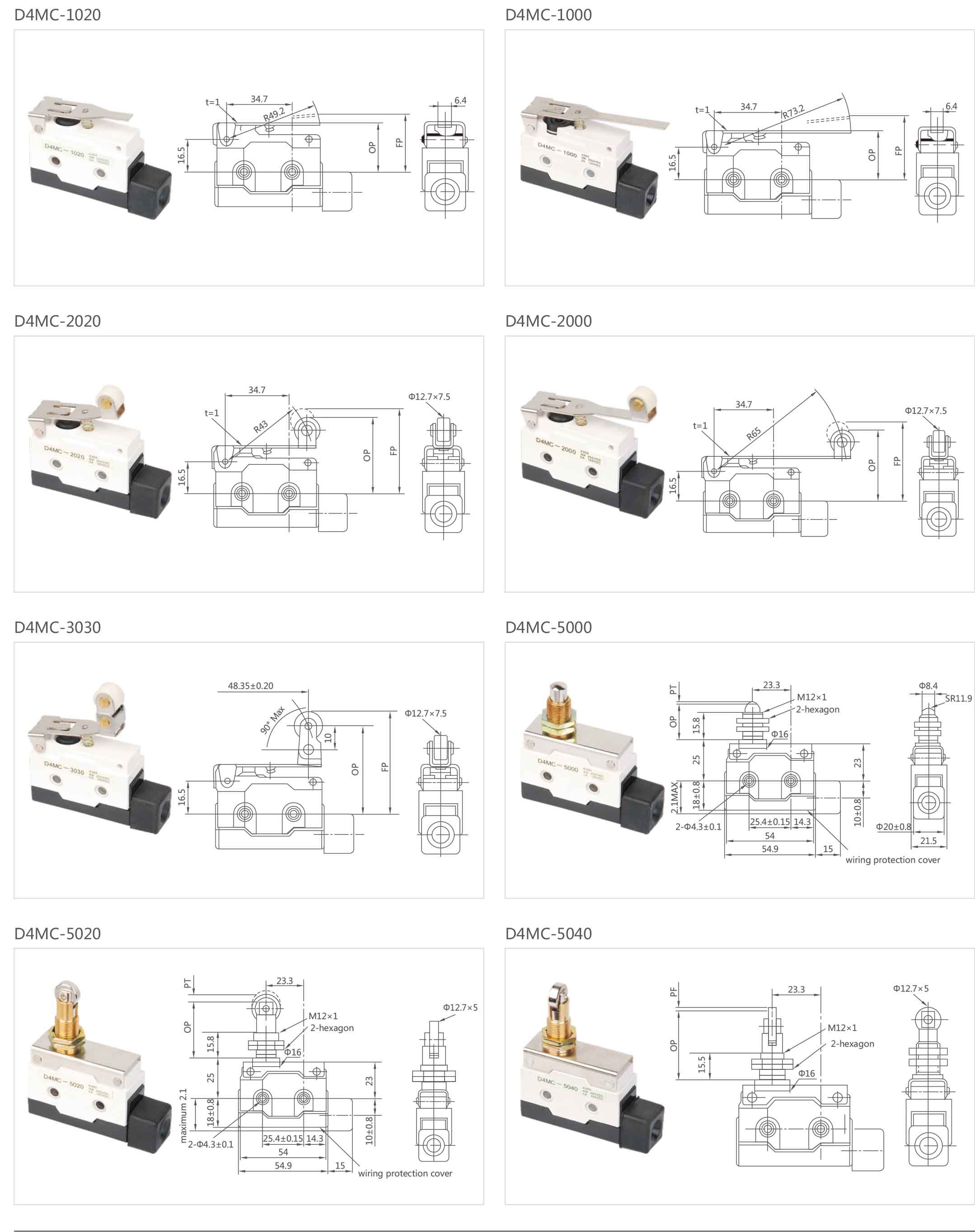

External appearance size
