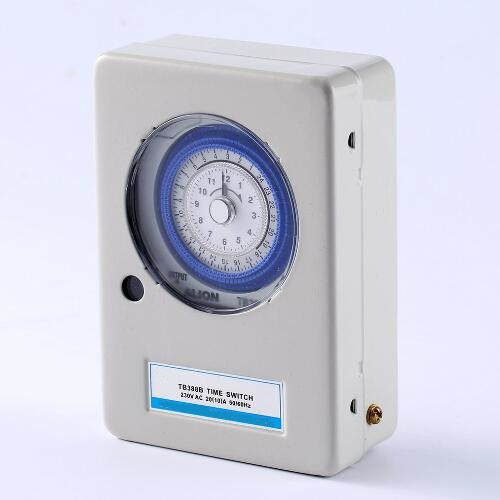

Daily Program Analogue Time Switch with Metal Box (TB-388B)

Name: Daily Program Analogue Time Switch with Metal Box (TB-388B)
Brand: all-electronics-online.com
SKU: 732232202
Availability: InStock
Rating: 5 (77 reviews)

Price:	US $ 8.3-20.85/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	TB-388B
Mechanism:	Mechanical
Frequecy:	50~60Hz
Time Range:	24 Hour
Operating Voltage:	230-240 VAC/110VAC/24VDC/12VDC
Width:	107mm
OEM Or ODM:	Accepted

Product Description

Analogue time switch

1 channel

Daily program

96 switching segments

Quartz controlled

Shortest switching time: 15 minutes

Clock hands for time display

Simple summer/winter time correction

Screw terminals

Switching status display

With power reserve (Nickel metal hydride battery replacement )

Can easily replace rechargeable batteries

With external protective metal shell, can prevent electromagnetic interference

Technical Data

Operating voltage

110 - 230 VAC

Frequency

50-60Hz

Number of channels

Width

107 mm

Installation type

Wall installation/3-point mounting
Screw mounting method

Type of connection

Screw terminals

Drive

Fluoresecent lamp load (conventional) parallel-corrected

1300VA 70μF

Shortest switching time

15 min

Programmable every 30 min

15 min

Time accuracy at 25 °C

≤ ± 2 s/day(Quartz)

Type of contact

SPST

Switching output

Not potential-free

Number of switching segments

Power consumption

3 VA

Test approvals

Housing and insulation material

High-temperature resistant, self-extinguishing thermoplastic

Type of protection

IP 40

Protection class

II in accordance with EN 60 730-1

Ambient temperature

-10 °C … +50 °C

Connection Example

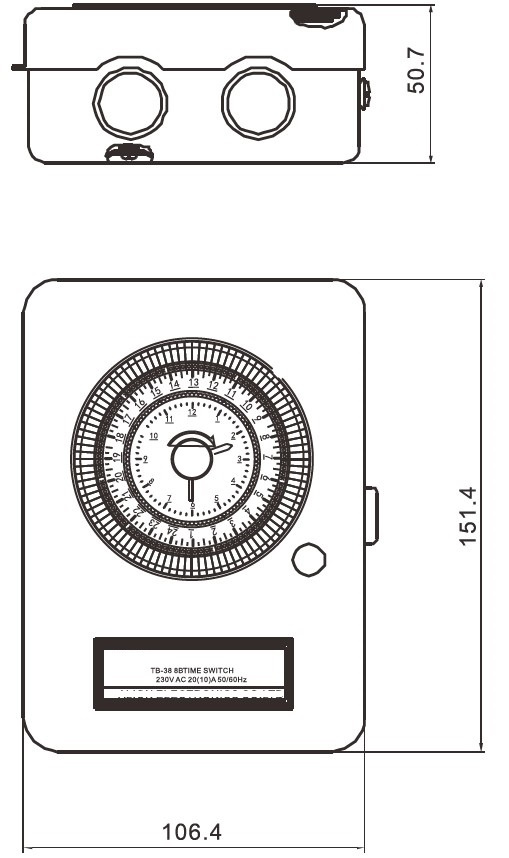

Scale Drawings

Quartz-controlled stepper motor

Program

Daily program

Power reserve

300 hours

Max. switching capacity at 250 V AC, cos φ = 1

20 A

Max. switching capacity at 250 V AC, cos φ = 0.6

12 A

Incandescent/halogen lamp load

2300W

Motor load (cos φ =0.7)

AC 110V, 750W; AC 220V, 1500W
