Wuxi Huishan Automatic Controller Co., Ltd. >> Danfoss Design Electrical Thermal Actuator Full Stroke 3.0 mm

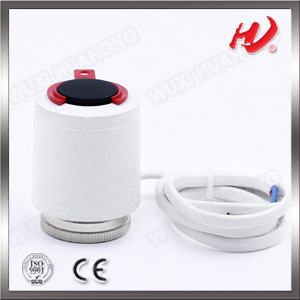

Danfoss Design Electrical Thermal Actuator Full Stroke 3.0 mm

Danfoss Design Electrical Thermal Actuator Full Stroke 3.0 mm
Price: US $ 5.8/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: DR-12
Color: Ral9003
Wires: 2 Wires, Blue and Brown
Connection: M30X1.5
Dimension: ø41X59
Materials: ABS + PC ABS Plastic

Product Description

When power are given, the position will be ON, if cut the power the position will be OFF

Specification
ModelDR-12
CertificateCE
Voltage230 V/AC, 24 V/AC
Control elementwax sensor imported from France
Timeless than 4.5 mins
Full stroke3.0 mm
Working force90`120 N
Power2.5 W/3.0 W
Current150 mA/250 mA
Installation sizeM30x1.5
Lead wire2-wire, blue and brown
Protection classIP44

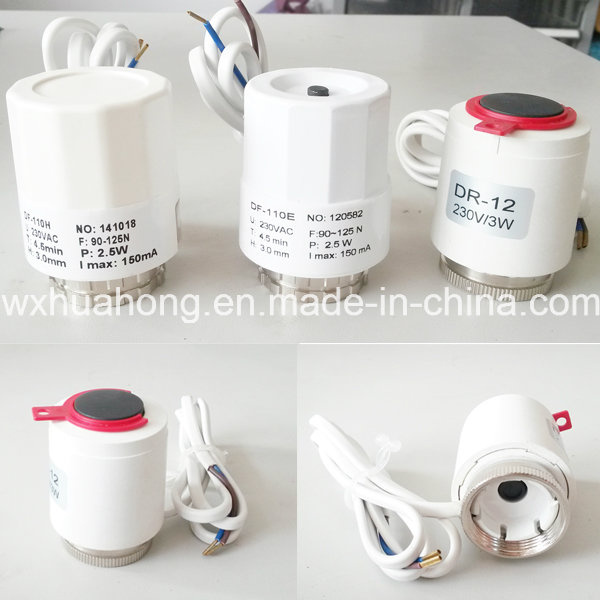

Product images

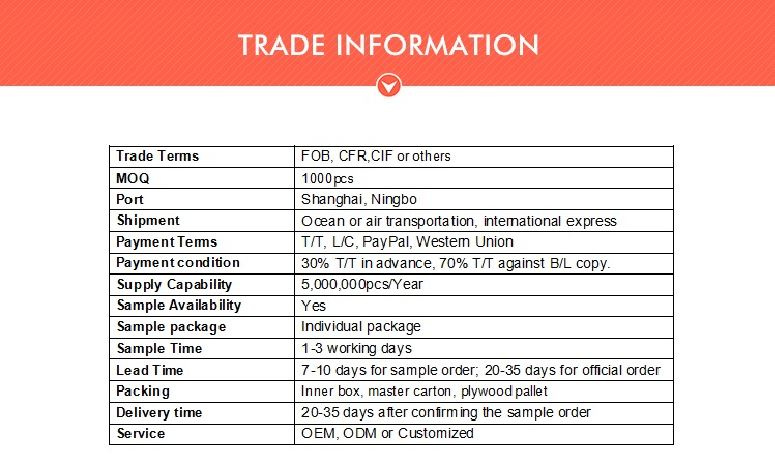

Payment terms
SamplesPaypal


Western Union
Orders30% T/T in deposit, balance against B/L copy


Irrevocable L/C at sight

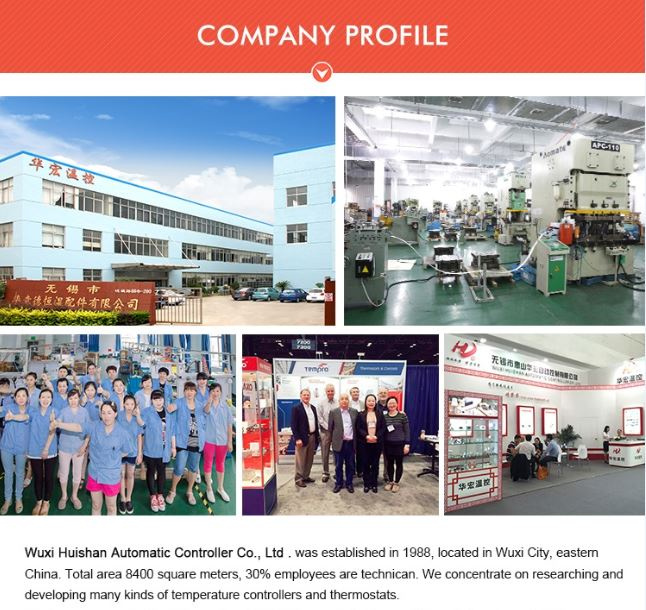

Wuxi Huishan Automatic Controller Co. Ltd., was founded in 1988. We are located in Wuxi city, which is 40 mins Far away From Shanghai by train. Financial and commercial center of China. After 20 years development, we have set up a new 8400m2 standard moredn workshop, equipped with advanced machinery and testing laboratory which enable us to be a professional manufacturer for temperature control porducts. 35% of our employees are mechanic and engineer and we are ISO9001: 2000 approved.

After 20 years continuous of developing, we have been producing high quality of room thermostats, thermostatic valves, thermostatic heads, liquid sensor for TRV, temperature and pressure safety valve, industrial thermostats, pressure switches, flow switches etc. We produce strictly according to the standard with a result that many products are CQC, EN215, CE, VDE, RoHS approved. With over 10 years export experience, we expanded our market to Europe, Middle East, North America, South America, and some of our customers are famous for international companies. We also offer OEM and ODM services to our customers, based on our strong technical force. For the same reason our customers are satisfied with our quality and service. Our production capacity is over than 3 million piecess. Looking forward to developing the market and technology togther with our overseas partners, and build up a mutual prosperous future.
