Danpon Red /Green Laser Modules Laser Diode with Aspheric Collimator Glass Lens

Danpon Red /Green Laser Modules Laser Diode with Aspheric Collimator Glass Lens
Price: Negotiable/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: Red laser modules
Operating Distance: 5-10m
Emitting Color: Green
Laser Head Numbers: Single-head
Control Mode: PC Control
Usage: Laser Pointer
Application: Outdoor
Light Source: Danpon
Lamp Power: 3V~6.2V

Product Description

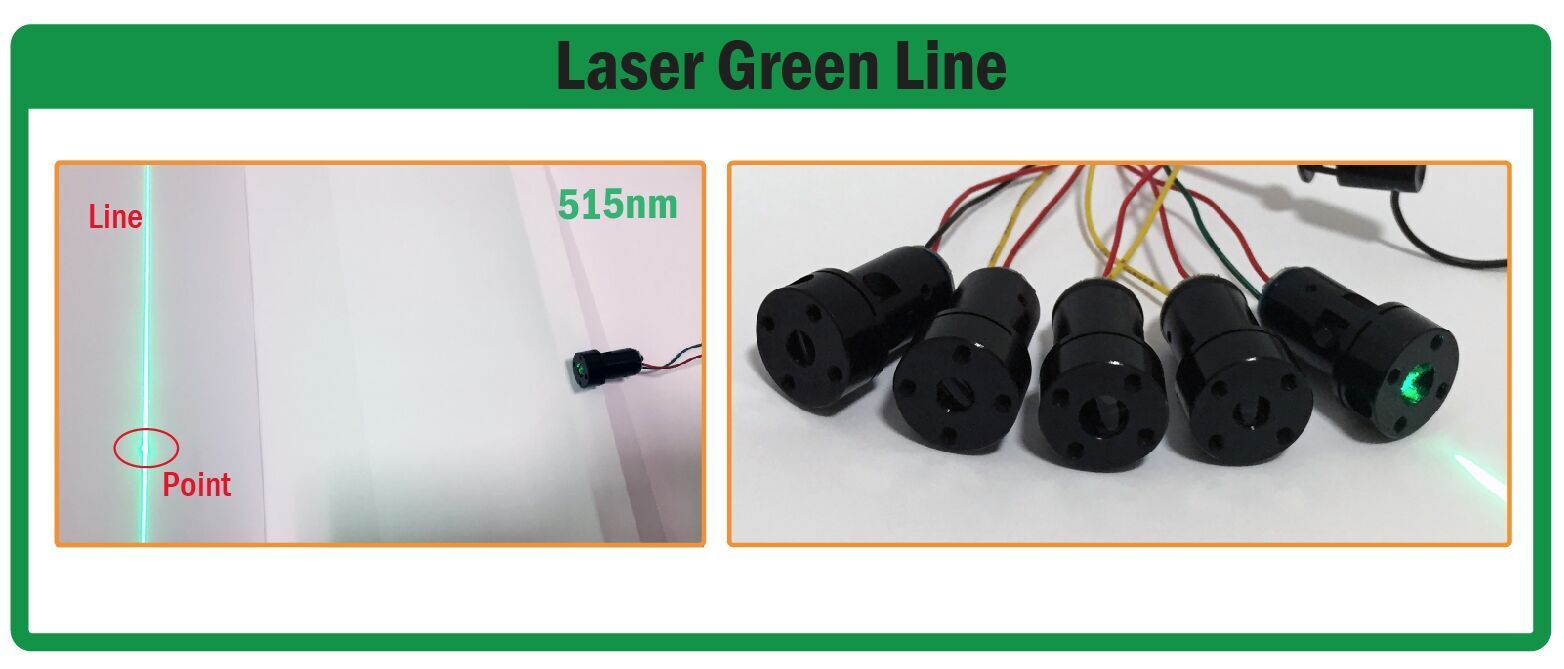

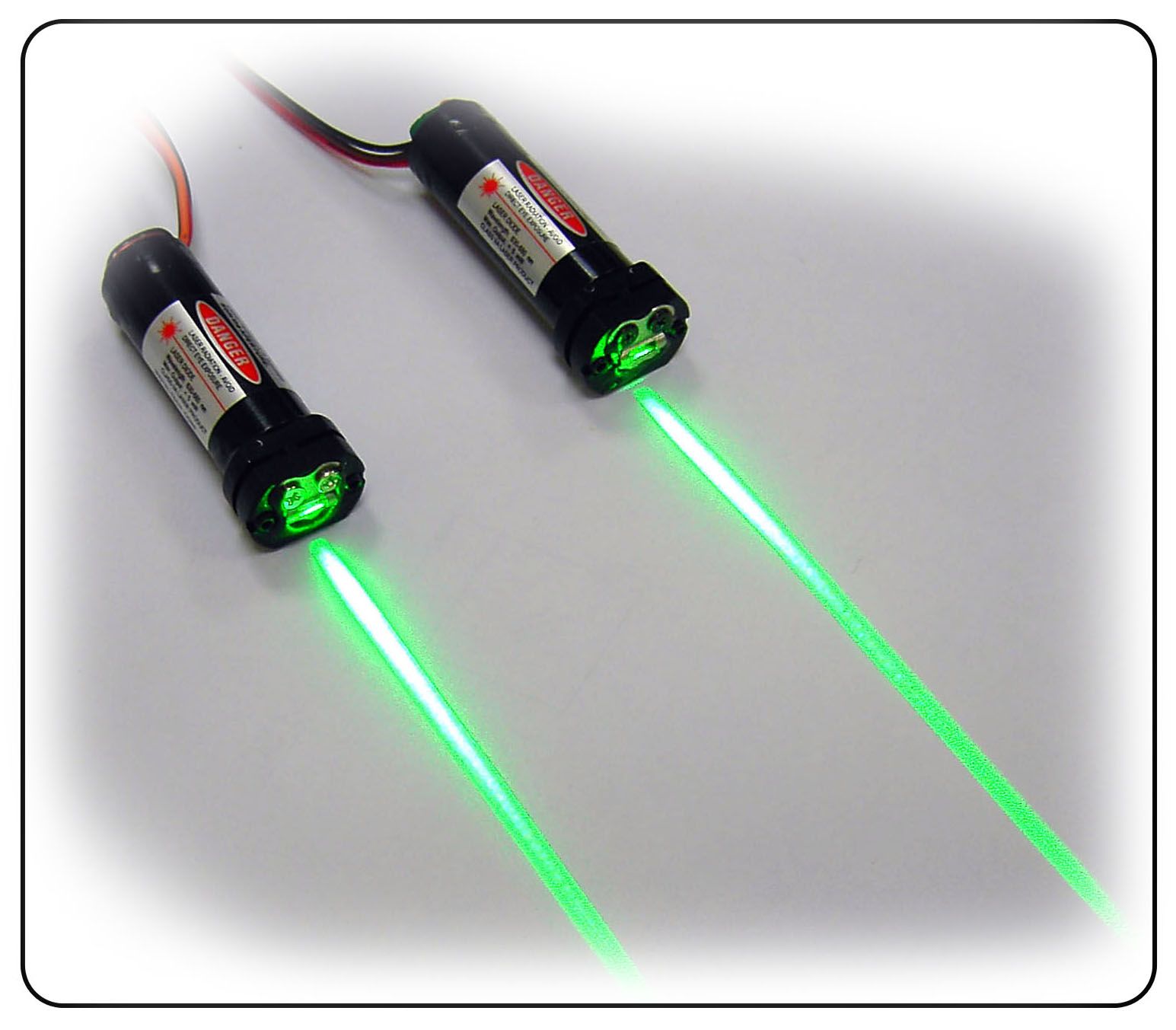

532nm Green line module




TECHNICAL SPECIFICATION
Laser Wavelength : 515nm/532nm
Power : 1mw/5mw/10mw/20mw
Operation voltage : 3V(2 AA batteries)
Operation current : 100mA~180mA
Lens : Aspheric collimator lens
Operation temperature : 0ºC~+45ºC
Shape : Round dot
Projection angle : >140°
Line width : <1.8mm@5M

Module size : φ17-φ13x45mm

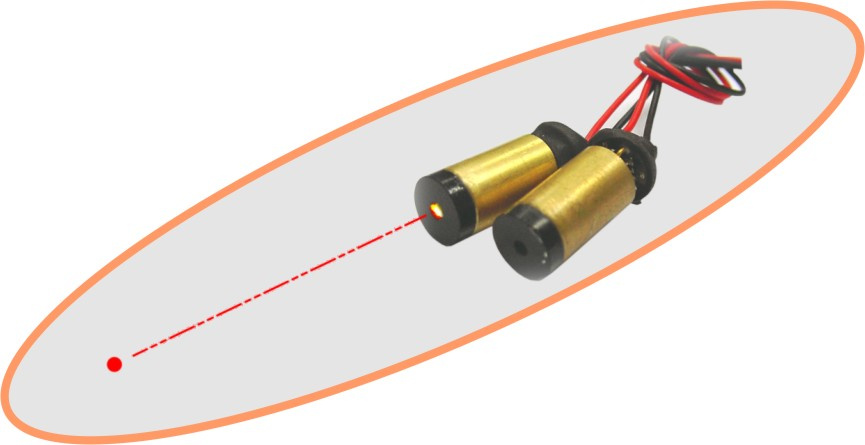

635nm--5mW Red dot module




TECHNICAL SPECIFICATION
Laser Wavelength : 635nm /650nm
Power : 5mw
Operation voltage : 3V(2 AA batteries)
Operation current : 30mA~50mA
Lens : Aspheric collimator lens
Operation temperature : 0ºC~+45ºC
Projection angle : >140°
Line width : <1.8mm@5M

Module size : φ16-φ13x21mm


PRODUCT FEATURES:
1. Intelligent feedback control with internal booster circuit;
2. High light transmittance optical system;
3. Low power consumption, high performance optical power output;
4. Stable performance, good consistency and long service life.




Statement:
Our company ShangHai JiaBei Instruments Co.,Ltd is specialized in the manufacturing of laser products in China for over ten years,we supply all kinds of laser modules including red and green lasers.we have different types of output power,dot and line lasers for options.Using aspheric collimator glass lens to make the laser line clear and bright and protect the laser from the high temperature.Let me know your detailed requirements so that we could serve you better.



Shanghai JIABEI INSTRUMENTS COMPANY established in 2003, is an integrating entperise of research and development, production and sale of laser products for landsurvey industry. Our products include laser levels, laser modules, laser pointers and some other related accessories in construction. Located in the morden city of Shanghai which is also one of the most beautiful and influential city in China.

We have over 50 employees in our company, it is a group of experienced technicians and management personnel, our well-equipped facilities and excellent quality control throughout all stages of production enables our popularity and reputation of our brand DANPON increase steadily in the global market. After more than ten years' effort, our company has become one of the leading manucacturers of laser products in China. With excellent quality and considerate after-sale service, currently we are having a good market in many countries. 80% percent of our products are exported to Japan, Russia, Australia and Taiwan.

Our company regards "reasonable prices, efficient production time and good after-sales service" as our goal. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers needs" for the management and "zero defect, zero complaints" as the quality objective.

If you like any kinds of our products, Please feel free to contact us, and we are also glad to receiver your OEM order. We are looking forward to builidng a successful business relationship to cooperate with more customers for mutual development and benefits in the near future.
