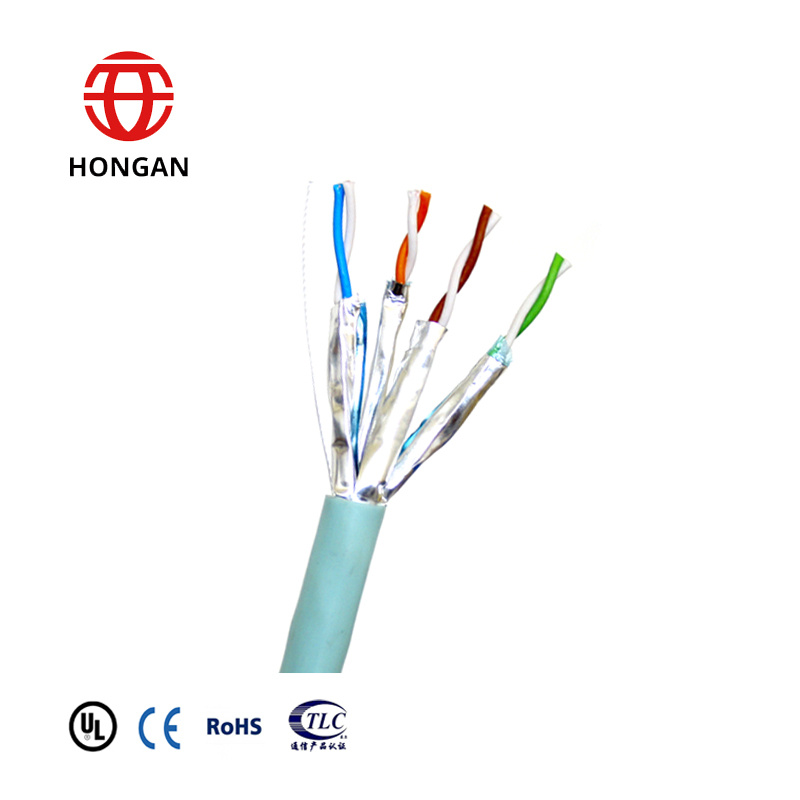

| Prod Model: |
CAT7(U/FTP S/FTP) |
| Frequency: |
4-600 MHz |
| Attenuation: |
3.7-50.1 dB/100m |
| Phase Delay: |
535-552 Ns/100m |
| Export Market: |
Europe,Middle East, South-East Asia,Africa etc. |
| Standards: |
IEC61156,ISO/IEC11801,ANSI/Tia/Eia-568-C,Yd/T1019 |
| Application: |
Long Distance Symmetric Cable |
| Conductor Material: |
Copper |
| Type: |
Cat 7 |
| Certification: |
UL |
| Cover Material: |
PVC;PE;Lszhp |
| Conductor Type: |
23 AWG Copper |
| Brand: |
Hongan |

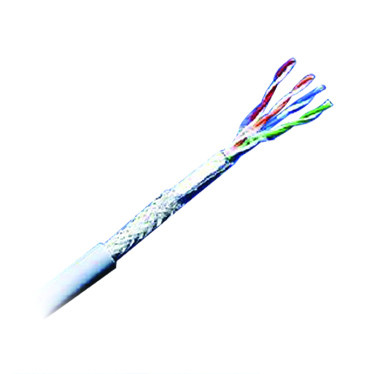

Product Description
Product Description- Characteristics of product:1.Bandwidth comply with the freqency of 600MHz of category7;
2.A variety of sheaths can be selected according to different kinds of environment in order to make the best of cable's function;
3.Specially designed for 10-Gigabit Ethernet;
4.Comply with ROHS standard.-Applications:1.155 Mbps ATM
2.622 Mbps ATM
3.1000 Base-T

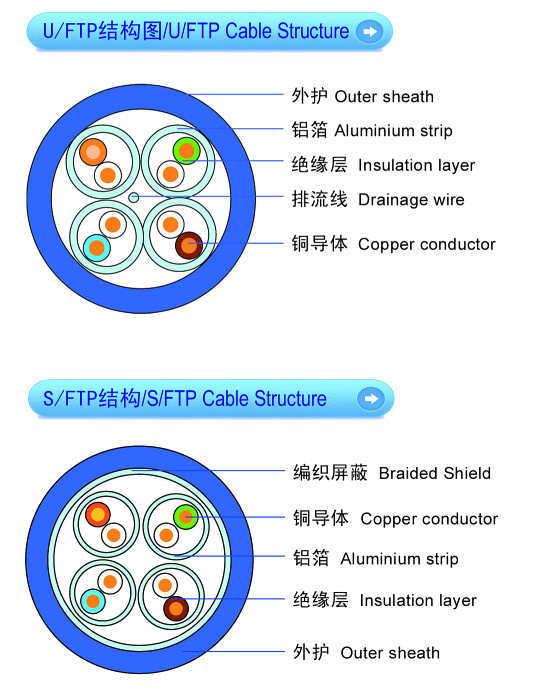

4.10G Base-T-Material instruction:1.Conductor:23AWG Copper;
2.Insulation:Solid HDPE or Skin-Foam-Skin PE;
3.Sheath:Environment Friendly PVC or Flame Resistance PE or Low Smoke Zero Halogen Polyolefin(LSZHP);-Physical Electrical Characteristics:1.D.C resistance(max):7.5Ω/100m at 20ºC;
2.Mutual capacitance(max):5.6nF/100m;
3.Unblanced capacitance(max):160pF/100m;
4,Dielectric strength between conductors(min):2.5kv/2s;
5.Impedance:1-600MHz 100+/-15 Ω;
6.Differential phase delay(max):45ns/100m;
7.Installation temperature:-20ºC-+60ºC;
8.Permitted bend radius:Over 8 times diameter of the cable.| Transmission Performance |
| Frequency(MHz) | Attenuation(Max)(dB/100m) | Next(Min) (dB/100m) | Psnext(Min)(dB/100m) | Elfext(Min)(dB/100m) | PSELFEXT(Min)(dB/100m) | RL (Min)(dB) | Phase Velocity(Min)(m/s) | Phase delay(Max)(ns/100m) |
| 4 | 3.7 | 78.0 | 75.0 | 78.0 | 75.0 | 23.0 | 0.604c | 552 |
| 8 | 5.2 | 78.0 | 75.0 | 77.2 | 74.2 | 24.5 | 0.610c | 547 |
| 10 | 5.9 | 78.0 | 75.0 | 75.3 | 72.3 | 25.0 | 0.612c | 545 |
| 16 | 7.4 | 78.0 | 75.0 | 71.2 | 68.2 | 25.0 | 0.614c | 543 |
| 20 | 8.3 | 78.0 | 75.0 | 69.3 | 66.3 | 25.0 | 0.615c | 542 |
| 25 | 9.3 | 78.0 | 75.0 | 67.3 | 64.3 | 24.3 | 0.616c | 541 |
| 31.25 | 10.4 | 78.0 | 75.0 | 65.4 | 62.4 | 23.6 | 0.617c | 540 |
| 62.5 | 14.9 | 75.5 | 72.5 | 59.4 | 56.4 | 21.5 | 0.619c | 539 |
| 100 | 19.0 | 72.4 | 69.4 | 55.3 | 52.3 | 20.1 | 0.620c | 538 |
| 200 | 27.5 | 67.9 | 64.9 | 49.3 | 46.3 | 18.0 | 0.622c | 537 |
| 250 | 31.0 | 66.4 | 63.4 | 47.3 | 44.3 | 17.3 | 0.622c | 536 |
| 300 | 34.2 | 65.2 | 62.2 | 48.5 | 42.8 | 17.3 | 0.622c | 536 |
| 400 | 40.0 | 63.4 | 60.4 | 43.3 | 40.3 | 17.3 | 0.623c | 536 |
| 500 | 45.3 | 61.9 | 58.9 | 41.3 | 38.3 | 17.3 | 0.623c | 536 |
| 600 | 50.1 | 60.7 | 57.7 | 39.7 | 36.7 | 17.3 | 0.623c | 535 |

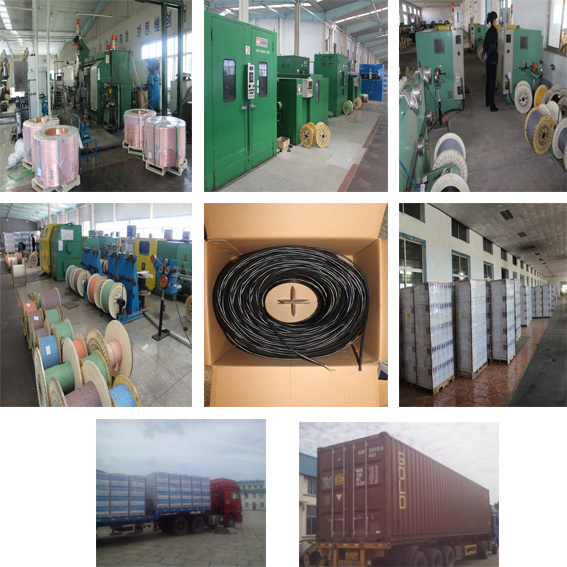

Item&Production Line
Certification
Company Information Hongan Fiber Optical Cable Company was established in 1994 which was expanded in 1998,2001,2012 respectively. Advanced fiber optical cable lines and inspection equipments were imported from Switzerland,Finland,USA,Japan and other countries.The main products include:outerdoor fiber optical cable,indoor fiber optical cable,FTTH fiber optical cable, special fiber optical cable (include OPLC hybrid cable,ADSS fiber optical cable,under-water fiber optical cable,micro fiber optical cable, dry outdoor fiber optical cable.flexible armored indoor fiber optical cable,low temperature resistance fiber optical cable.high temperature resistance fiber optical cable etc.) Annual production capacity reaches 150,000 km.
Hongan Optical Cable took the first lead to pass the ISO9001 quality system,ISO14001 environment management system.OHSAS18001 occupational health and safety management system, and its fiber optical cable meet the requirements of European CE.ROHS,Chinese TLC. The products are mainly used in China Mobile,China Telecom,China Broadcast,China Defense,Railway,Oil Fields and other communication operators ,also export to Europe, Middle East,South-East Asia,America,Africa etc.
Our Customer
FAQ
-Q1:Are you a Factory or Trade Company?
A:We are cable manufacturer with 32's years experience,welcome to visit us in your free time.Thank you.
-Q2:Where is your factory loated? How can I visit there?
A:Our factory is loated in Weihai city,Shandong Province,China.Welcome all clients to visit our factory warmly!
-Q3:What kind of material we use?
A:High Quality PE,PVC,LSZH etc.
-Q4:What is our after-sale service?
A:Two years' warranty and professional technology person to solve your matters.
-Q5:Do you provide any sample?
A:Yes,we do pleasure to provide samples for your reviewing and testing.
Welcome you select our products! Any inquiry, pls feel free to contact with us!
Hongan Group Co., Ltd, which locates at Wendeng city of Shandong peninsula, establised in 1985. It has 1500 employees and total assets is over 1.5 billion RMB yuan. It covers an area of 2 million square meters, construction area is 0.6 million square meters. Main products are optical fiber cables, data cables, communications cables etc. Its yearly productive capabilities are 4 million core kilometers, 0.5 million boxes, and 6 million pair kilometers respectively. It is now one of largest production, research and development, sales companies in China. It has 8 branches, such as Hongan Optical Fiber Cables, Hongan Data Cables, Hongan municipal Cables etc, provincial enterprise technology development center and post-doctor scientific research workstation.
Hongan optical fiber cable company has always stood on high starting point, high technology and high standard since it was founded. Production capacity is 50 million core kilometers. Respectively imported the world's advanced level of fiber optic cable production, testing equipment from Switzerland, United States, Japan and other countries. By technical exchange and cooperation with foreign countries, Hongan group has always stand in the forefront in the field of optical fiber manufacturing field.
Advanced equipment is the basic guarantee for the top quality products. Hongan group has invested $35 million and imported 22 sets advanced production lines of photoelectric communication cable and matched monitoring and control equipments and instruments, which imported from the United States, Japan and European Unions. Production capacity is 6 million pair kilometers. Products percent of pass is up to 99.9999%.
