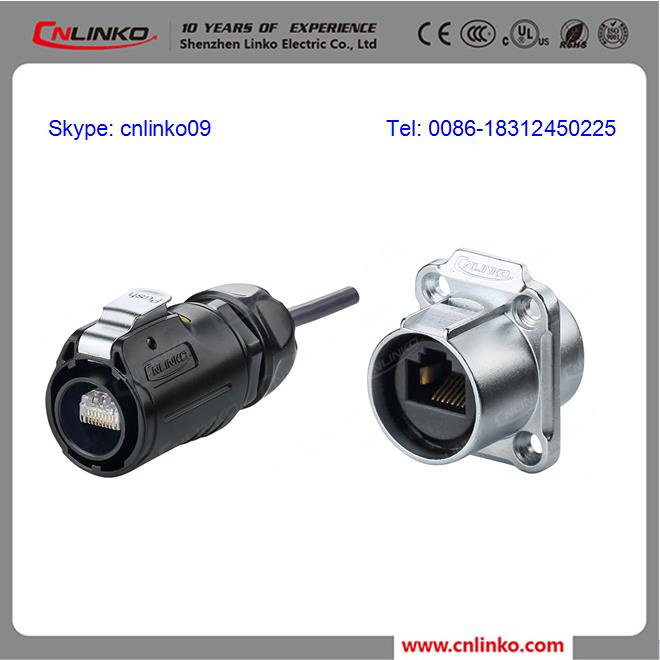

Data Transfering RJ45 8p8c Connector / Cat5e Female Jacket

Prod Model:	LP-24-RJ45-P01 & LP-24-RJ45-S01
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cable Specification:	0.15mm-0.2mm2/26-24AWG
Diameter Range:	Od5.5-7mm
Contact Pin:	8p8c
Connector Type:	RJ45
Operating Voltage:	30V

Product Description

RJ45 Cat5e Boot RJ45 8Pin Connector to RJ45 Cat5 Female Jack Connector for Data

LP-24 RJ45 8P8C waterproof connector


LP-24 Series connectors ,containing RJ45,USB,power,fiber optics and other models with hole size 24MM to meet different needs of industry and we use nickel-plated and Zinc alloy to guarantee quality and apply with international environment protection of industrial as well.
LP-24 series with multi-industry extension,USB,telecommunications,signal,fiber optic,HDMI,etc,and customized specialty ,pin series,such as :3pin,power+9pin,signal...

LP-24 RJ45 connector
Connecting mode:	plug/unplug
Protection level:	IP65/IP67
Cable specification:	0.15 mm2 ~ 0.20mm2 /26~24AWG
Diameter range:	Φ5.5mm ~Φ7mm
Contact diameter×Qty:	8P8C
Current rating(A):	1.5A
Withstand voltage(AC.V)1min:	1000V
Contact resistance:	/
Insulation resistance:	/
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Method of connecting cable:	solder
Prevent the combustion level:	UL94-V0
Material:
Shell&insulated parts:	High performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel
Main characteristics:
- Sealed against dust and fluid (IP65/IP68)
- Vibration resistance,impact resistance,stretching resistance
- With one hand, can quickly insert or pull out
Application industries:
- Stage equipment	- The smart grid
- Medical equipment	- Server
- Solar energy equipment	- Ship equipment
- Electric power equipment	- Vehicle equipment
- Communications equipment	- Heavy machinery


Packaging & Shipping
1. 10pcs to a box, 24 boxes to a carton,or use customized packing with MOQ1000 pcs/model boxes.
2. Lead time: 3-10 working days after received deposit for USB Convert Serial Cable Connector
3. DHL/UPS/Fedex/EMS/TNT(door to door) or use customer partne

Our Services
1. Supply OEM and ODM service for USB Convert Serial Cable Connector
2. With professional quality control system and R&D department
3. To make customized needs with national level laboratory
4.Free samples are available for USB Convert Serial Cable Connector
5. supply the best service to you with the contact details below:
TEL:0086-0755-86960323  FAX:0086-0755-86960305
Cellphone: 0086-18312450225 Eunice Tan
