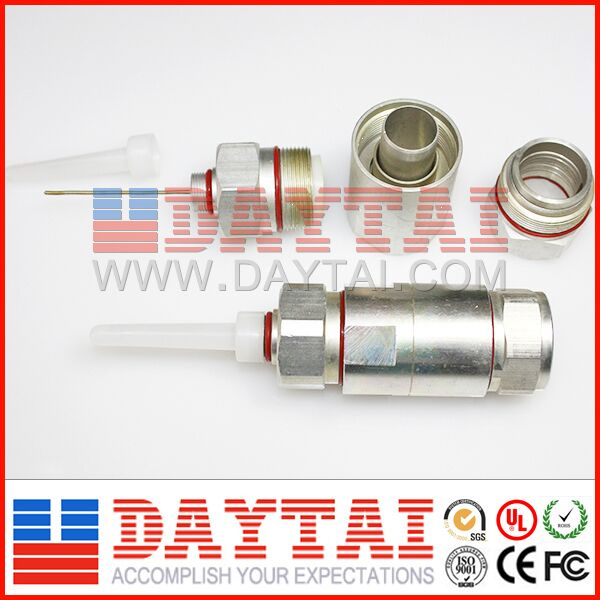

Daytai CATV Qr860 Pin Connector
| Price: |
US $ 0.35/Piece |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
DT-CATVQR860 |
| Quality Certification: |
ISO 9001, SGS, Ce, etc |
| Description: |
CATV Qr860 Pin Connector |
| Material: |
Aluminium, Zinc Alloy |
| Bandwidth: |
0~1000MHz |
| Impedance: |
75ohm |
| Type: |
Generally Coaxial Connector |
| Coupling Mechanism: |
Threaded Connection |
| Classification: |
Qr860 |
| Brand: |
Daytai |
Product Description
QR860 CATV Pin Connector
A. QR860CATV Pin Connector Specification
CATV Connector, QR860 catv connector, suitable for QR860 coaxial cable.
B. QR860CATV Pin Connector Feature
1. Aluminium
2. High return loss and superior power capability
3. O ring sealed watertight
4.75Ohms
C. QR860CATV Pin Connector Description
1. Port terminators provide a 75 Ohm match to unused KS entry port
2. Wide bandwidth for use in broadband systems
3. Standard pin length accommodates all amplifer and multitap mating requirements
4. High return loss for excellent digital signal performance
5. Superior power capability provides a minimum of 20 Amps current capacity on all connectors and adapters
6. O-ring sealed for maximum enviromental protection, eliminating water migration
D. Business Scope: ( QR860 CATV Pin Connector)
We deal with all connector: TV connector, TV jack connector, antenna connector, coaxial connector, F connector, RF connector, CATV connector, BNC connector, catv f connector...Etc. All production are cheaper than other company. Meanwhile, our pruduction are high-qualty. There are so many choice in our company
E. Technical Characteristics of QR860CATV Pin Connector
| Impedance: | 75 Ω |
| Temperature Range: | -55~+155 o C |
| Frequency Range: | DC-1GHz |
| Insulation resistance | ≥ 10000 M Ω |
| Average power | >20A |
| Connector type | QR860 |
| Return loss | 30db |
| Durability(mating) | ≥500 (cycles) |
| Body: | brass and brass plate |
