Product Description

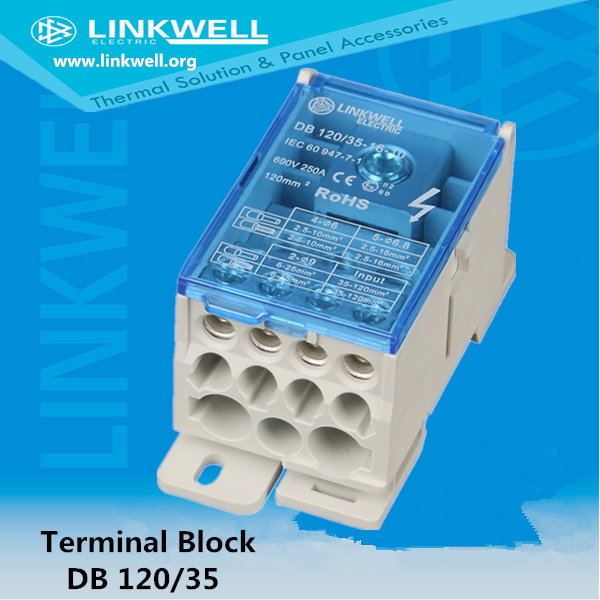

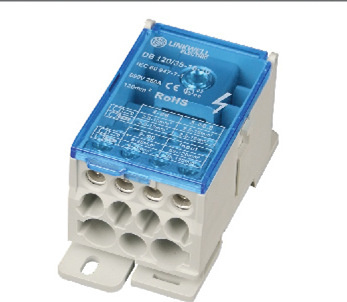

DB Power Distribution Terminals ( DB 120/35-16-10 1/2-5-4 )
| Specification | DB 120/35-16-10 1/2-5-4 | DB 185/35-16-10 1/2-5-4 |
| Max.Current(A) | 250A | 400A |
| Dimensions(mm) | Specification | Specification |
| | Length Thickness Height NS 35:7.5 | Length Thickness Height NS 35:7.5 |
| Length/Thickness/Height NS 35:7.5/NS 35:15 ★ | 96 46.8 51.5 | 96 46.8 51.5 |
| According to the standard IEC 60 947-7-1 parameters | | |
| Rated voltage(V) V | 690 | 690 |
| Rated current(A) A | 250 | 400 |
| Input/output cable rated cable cross-section (mm2) | 120/35-16-10 | 185/35-16-10 |
| Rated impulse voltage/The pollution grade | 2.5kV/3 | 2.5kV/3 |
| UL94 Flammability class | V-0 | V-0 |
| More data | | |
| Peak value of short-current | 51 | 51 |
| short current>1 S | 24.5 | 24.5 |
| Input | A | A |
| Input cable terminal quantity | 1 | 1 |
| "e"Single stranded solid wire H07V U mm2 | 35...120 | 95...185 |
| "m"Multi-stranded solid wire H07V-U mm2 | 35...120 | 95...185 |
| "f"flexible bus bar H07V-K mm2 | 35...120 | 95...185 |
| "f"flexible with wire-end ferrules acc.DIN46228-1 H07V-R mm2 | 35...120 | 95...185 |
| "f"flexible with wire-end ferrules acc.DIN46228-1,with plastic collars H07V-R mm2 | 35...120 | 95...185 |
| Dia. mm | 15 | 19 |
| Tightening Torque (Nm) | 19 | 25 |
| Compression screw type | M12 | M16 |
| Stripping length (mm) | 27...29 | 27-29 |
| Screwriver blade Size | SK-S 6.0 | SK-S 8.0 |
| Output | A B C | A B C |
| Output cable terminal quantity | 2 5 4 | 2 5 4 |
| "e"Single stranded solid wire H07V-U mm2 | 2.5...35 2.5...16 2.5...10 | 2.5...35 2.5...16 2.5...10 |
| "m"Multi-stranded solid wire H07V-R mm2 | 2.5...35 2.5...16 2.5...10 | 2.5...35 2.5...16 2.5...10 |
| "f"flexible bus bar H07V-K mm2 | 2.5...35 2.5...16 2.5...10 | 2.5...35 2.5...16 2.5...10 |
| "f"flexible bus bar with wire-end ferrules acc.DIN46228-1 H07V-R mm2 | 2.5...35 2.5...16 2.5...10 | 2.5...35 2.5...16 2.5...10 |
| "f"flexible bus bar with wire-end ferrules acc.DIN46228-1,with plastic collars H07V-R mm2 | 2.5...35 2.5...16 2.5...10 | 2.5...35 2.5...16 2.5...10 |
| Dia. mm | 9 6.8 6.1 | 9 6.8 6.1 |
| Tightening Torque (Nm) | 3.5 2 2 | 3.5 2 2 |
| Compression screw type | M10 M6 M5 | M10 M6 M5 |
| Stripping length (mm) | 10...12 10...12 10...12 | 10...12 10...12 10...12 |
| Screwriver blade Size/Inner hexagonal spanner | SK-S 5.0 SK-S 4.0 SK-S 3.0 | SK-S 5.0 SK-S 4.0 SK-S 3.0 |
| UL/CSA parameter | | |
| Voltage/current/cable size UL | | |
| Voltage/current/cable size CSA | | |
| | | |
| Product Description color | Model No. Packing Code No. | Model No. Packing Code No. |
| W/Aluminum or copper cable input PA WH | DB 120/35-16-10 1/2-5-4 1 8604001 | DB 185/35-16-10 1/2-5-4 1 8605001 |
| DB 120/35-16-10 1/2-5-4 1 8604002 | DB 185/35-16-10 1/2-5-4 1 8605002 |
| W/Flexible bus bar input PA GY | DB 120/35-16-10 1/2-5-4 1 8604003 | DB 185/35-16-10 1/2-5-4 1 8605003 |
| DB 120/35-16-10 1/2-5-4 1 8604004 | DB 185/35-16-10 1/2-5-4 1 8605004 |
| | | |
| Attachment screw driver | Model No. Code No. | Model No. Code No. |
| Inner Hexagonal spanner 6 pcs set | SK-S 3.0 8601021 | SK-S 3.0 8601021 |
| SK-S 4.0 8601022 | SK-S 4.0 8601022 |
| SK-S 5.0 8601023 | SK-S 5.0 8601023 |
| SK-S 6.0 8601024 | SK-S 8.0 8601025 |
