| Prod Model: |
DB 70-16/16 1-1/8 |
| Application: |
Cable |
| Environmental Protection: |
General |
| Connection Mode: |
Push-Pull Connection |
| Shape: |
Rectangle |
| Contact Termination Form: |
Welding Connection |
| Brand: |
Linkwell |
Product Description

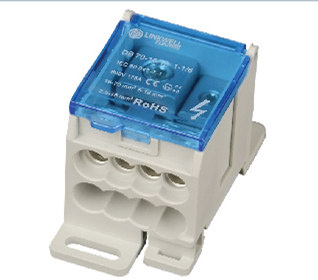

DB Power Distribution Terminals ( DB 70-16/16 1-1/8 )
| Specification | DB 16/6 3/4 | DB 35-16/16 1-1/8 | DB 70-16/16 1-1/8 |
| Max.Current(A) | 80A | 125A | 175A |
| Dimensions(mm) | Specification | Specification | Specification |
| | Length Thickness Height NS 35:7.5 | Length Thickness Height NS 35:7.5 | Length Thickness Height NS 35:7.5 |
| Length/Thickness/Height NS 35:7.5/NS 35:15 ★ | 66 30.2 48 | 75 40 50 | 75 40 50 |
| According to the standard IEC 60 947-7-1 parameters | | | |
| Rated voltage(V) V | 690 | 690 | 690 |
| Rated current(A) A | 80 | 125 | 175 |
| Input/output cable rated cable cross-section (mm2) | 16/16-6 | 35-16/16 | 70-16/16 |
| Rated impulse voltage/The pollution grade | 2.5kV/3 | 2.5kV/3 | 2.5kV/3 |
| UL94 Flammability class | V-0 | V-0 | V-0 |
| More data | | | |
| Peak value of short-current | 22 | 30 | 30 |
| short current>1 S | 3 | 4.2 | 11.8 |
| Input | A B | A B C | A B |
| Input cable terminal quantity | 1 | 1 1 | 1 1 |
| "e"Single stranded solid wire H07V U mm2 | 2.5...16 | 10...35 6...16 | 16...70 6...16 |
| "m"Multi-stranded solid wire H07V-U mm2 | 2.5...16 | 10...35 6...16 | 16...70 6...16 |
| "f"flexible bus bar H07V-K mm2 | 2.5...16 | 10...35 6...16 | 16...70 6...16 |
| "f"flexible with wire-end ferrules acc.DIN46228-1 H07V-R mm2 | 2.5...16 | 10...35 6...16 | 16...70 6...16 |
| "f"flexible with wire-end ferrules acc.DIN46228-1,with plastic collars H07V-R mm2 | 2.5...16 | 10...35 6...16 | 16...70 6...16 |
| Dia. mm | 6.8 | 10 6.8 | 12 6.8 |
| Tightening Torque (Nm) | 1.5...3 | 3.5...5 1.5...3 | 5 1.5...3 |
| Compression screw type | M6 | M8 M6 | M10 M6 |
| Stripping length (mm) | 9...12 | 14-15 9-12 | 15-16 9-12 |
| Screwriver blade Size | SZS 1.0×6.5 | SK-S 4.0 SK-S 3.0 | SK-S 5.0 SK-S 3.0 |
| Output | A B | A | A |
| Output cable terminal quantity | 3 4 | 8 | 10 |
| "e"Single stranded solid wire H07V-U mm2 | 2.5...16 2.5...6 | 2.5...16 | 2.5...16 |
| "m"Multi-stranded solid wire H07V-R mm2 | 2.5...16 2.5...6 | 2.5...16 | 2.5...16 |
| "f"flexible bus bar H07V-K mm2 | 2.5...16 2.5...6 | 2.5...16 | 2.5...16 |
| "f"flexible bus bar with wire-end ferrules acc.DIN46228-1 H07V-R mm2 | 2.5...16 2.5...6 | 2.5...16 | 2.5...16 |
| "f"flexible bus bar with wire-end ferrules acc.DIN46228-1,with plastic collars H07V-R mm2 | 2.5...16 2.5...6 | 2.5...16 | 2.5...16 |
| Dia. mm | 6.8 4.5 | 6.8 | 6.8 |
| Tightening Torque (Nm) | 1.5...3 0.8...1.5 | 1.5...3 | 1.5...3 |
| Compression screw type | M6 M5 | M6 | M6 |
| Stripping length (mm) | 9...12 9...12 | 10...12 | 10...12 |
| Screwriver blade Size/Inner hexagonal spanner | SZS 1.0×6.5 SZS 1.0×4.0 | SK-S 3.0 | SK-S 3.0 |
| UL/CSA parameter | | | |
| Voltage/current/cable size UL | | | |
| Voltage/current/cable size CSA | | | |
| | | | |
| Product Description color | Model No. Packing Code No. | Model No. Packing Code No. | Model No. Packing Code No. |
| W/Aluminum or copper cable input PA WH | DB16/6 3/4 1 8601001 | DB 35-16/16 1-1/8 1 8602001 | DB 70-16/6 1-1/8 1 8603001 |
| DB16/6 3/4 1 8601002 | DB 35-16/16 1-1/8 1 8602002 | DB 70-16/6 1-1/8 1 8603002 |
| W/Flexible bus bar input PA GY | | DB 35-16/16 1-1/8 1 8602003 | DB 70-16/6 1-1/8 1 8603003 |
| | DB 35-16/16 1-1/8 1 8602004 | DB 70-16/6 1-1/8 1 8603004 |
| | | | |
| Attachment screw driver | Model No. Code No. | Model No. Code No. | Model No. Code No. |
| Slotted | SZS 1.0×4 8601011 | | |
| Slotted | SZS 1.0×6.5 8601012 | SK-S 3.0 8601021 | SK-S 3.0 8601021 |
| Inner Hexagonal spanner 7pcs set | SK-S 3.0×8.0 | SK-S 4.0 8601022 | SK-S 5.0 8601023 |
