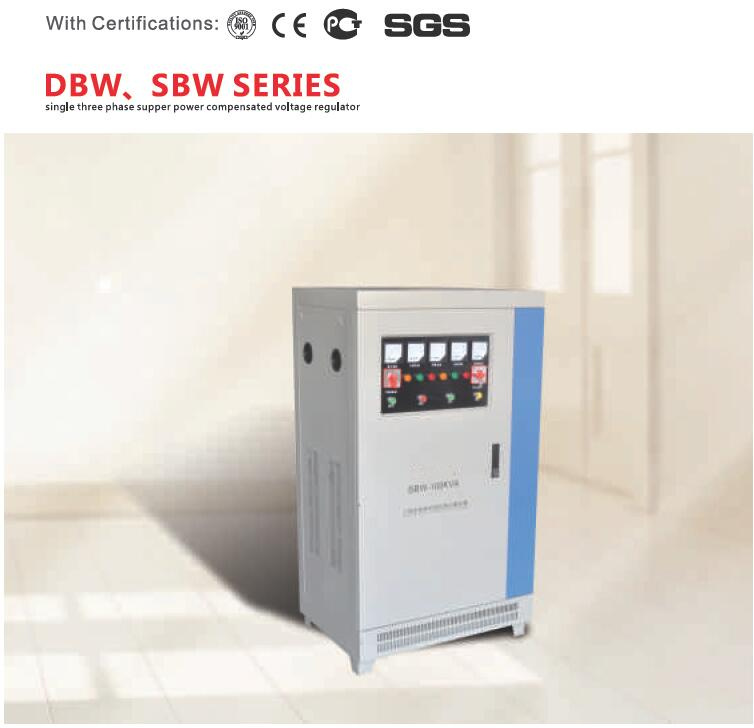

Dbw/SBW-50kVA 40kw 380V Super Power Three Phase Full AC Automatic Compensated Voltage Regulator/Stabilize

Name: Dbw/SBW-50kVA 40kw 380V Super Power Three Phase Full AC Automatic Compensated Voltage Regulator/Stabilize
Brand: all-electronics-online.com
SKU: 804980445
Availability: InStock
Rating: 5 (131 reviews)

Price:	US $ 15-20/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	DBW/SBW
Efficiency:	98%
Degree Of Protection:	IP20
Input Voltage:	AC 140-260V
Current Type:	AC
Phase:	Single Phase
Usage:	DBW
Frequency:	Low Frequency
Brand:	Ann

Product Description

Product Description

Introduction:

DBW/SBW series full automatic compensated regulator is designed and developed with the international advanced compensation technology. It can keep the output voltage in steady state automatically when the network voltage fluctuated or the load current varied, which can ensure the consumer run smoothly. It has the advantage of large capacity, high efficiency, no waveform distortion, simple operation and full-capacity output under tower input voltage if compared with other voltage stabilizer. The voltage regulator provided with over-voltage, over-current, phase sequence etc protection function

Features of SBW Automatic Voltage Regulator (AVR)

1. The AC voltage regulator is equipped with bypass system
2. Compensated voltage technology is adopted
3. Wide input voltage range
4. Over voltage protection
5. The voltage regulator has output voltage three phase auto-balance function
6. SBW voltage regulators are widely used in electric power supply systems.

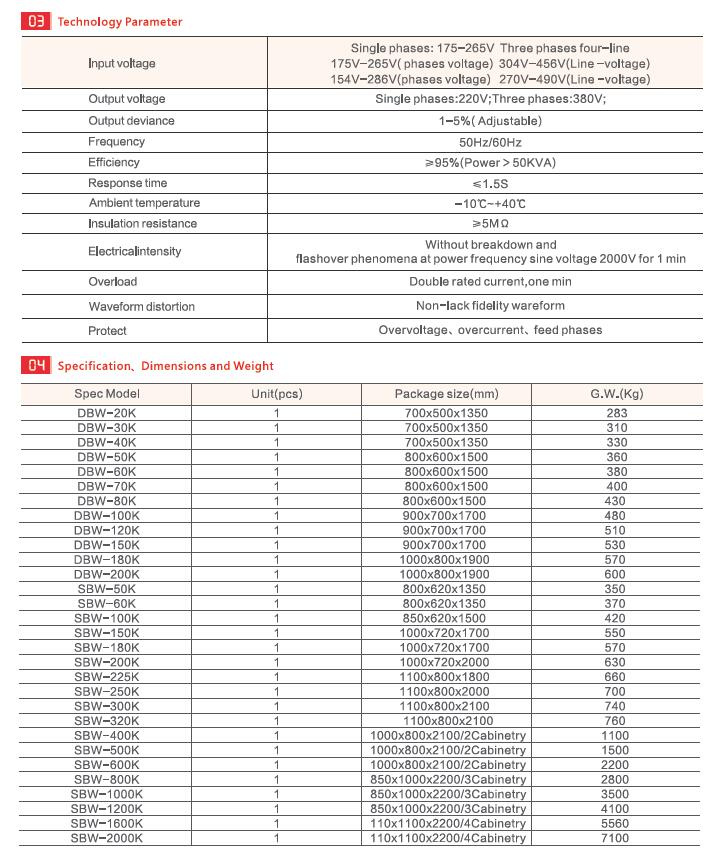

Product Parameter

Input voltage	Single phase:175-265V three phase four-line 175-265V(phases voltage) 304-456V(Line-voltage) 154-286V(phases voltage) 270-490V(Line-voltage)
Output voltage	Single phase:220V;Three phase:380V
Output deviance	1-5%(Adjustable)
Frequency	50Hz/60Hz
efficiency	≥95%(Power>50KVA)
Response time	≤1.5S
Ambient temperature	-10°C~+40°C
Insulation resistance	≥5MΩ
Electricalintensity	Without breakdown and flashover phenomena at power frequency sine voltage 2000V for 1 min
Overload	Double rated current,one min
Waveform distortion	Non-lack fidelity waveform
Protect	Over-voltage,over-current,feed phases

Spec Model	Unit(pcs)	Package size(mm)	G.W.(Kg)
SBW-50K	1	800x620x1350	350
SBW-60K	1	800x620x1350	370
SBW-100K	1	850x620x1500	420
SBW-150K	1	1000x720x1700	550
SBW-180K	1	1000x720x1700	570
SBW-200K	1	1000x720x2000	630
SBW-225K	1	1100x800x1800	660
SBW-250K	1	1100x800x2000	700
SBW-300K	1	1100x800x2100	740
SBW-320K	1	1100x800x2100	760
SBW-400K	1	1000x800x2100/2Cabinetry	1100
SBW-500K	1	1000x800x2100/2Cabinetry	1500
SBW-600K	1	1000x800x2100/2Cabinetry	2200
SBW-800K	1	850x1000x2200/3Cabinetry	2800
SBW-1000K	1	850x1000x2200/3Cabinetry	3500
SBW-1200K	1	850x1000x2200/3Cabinetry	4100
SBW-1600K	1	110x1100x2200/4Cabinetry	5560
SBW-2000K	1	110x1100x2200/4Cabinetry	7100
